F5AMH (2018)
CARBURETOR

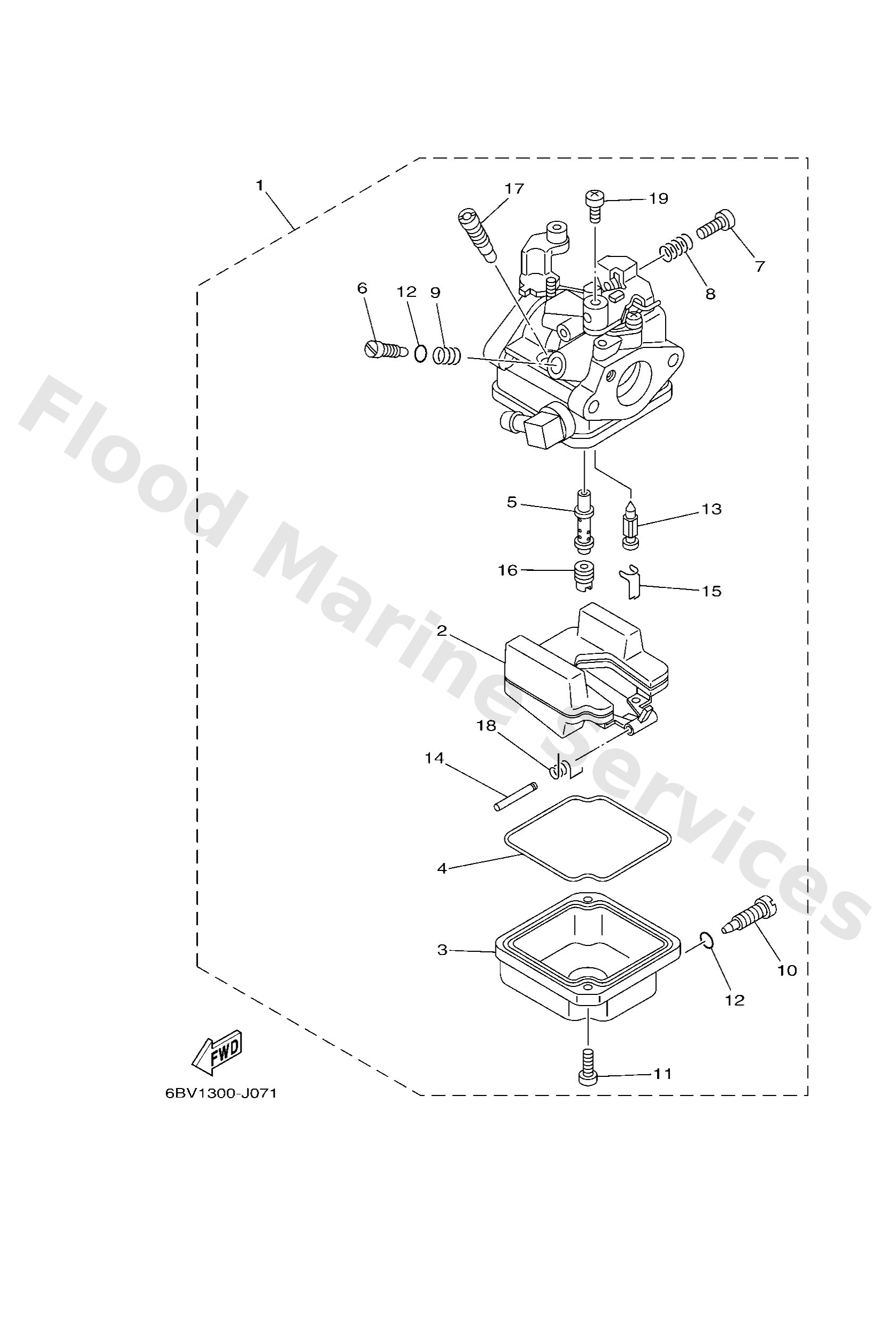

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
6BW1430101
Carburetor assembly 1
Loading…
↗
1
6BX1430100
Carburetor assembly 1
Loading…
↗
1
6BV1430101
Carburetor assembly 1
Loading…
↗
2
6BX1498500
Float
Loading…
↗
3
6BX1498000
Body, float chamber
Loading…
↗
4
6BX1498400
Gasket, float chamber
Loading…
↗
5
6BV1494700
Jet, needle
Loading…
↗
5
6BW1494700
Jet, needle
Loading…
↗
5
6BX1494700
Jet, needle
Loading…
↗
6
6BW1492320
Screw, pilot
Loading…
↗
6
6BX1492320
Screw, pilot
Loading…
↗
7
6BX1452300
Screw, stop
Loading…
↗
8
6BX1455500
Spring
Loading…
↗
9
6BX1493500
Spring
Loading…
↗
10
6BX1499100
Screw
Loading…
↗
11
6BX1459200
Screw
Loading…
↗
12
4JH1456200
O-ring
Loading…
↗
13
6BX1454600
Valve, needle
Loading…
↗
14
6BX1454800
Pin, float arm
Loading…
↗
15
6BX1493700
Clip
Loading…
↗
16
6BV1494311
Jet, main (#60)
Loading…
↗
16
6BW1494315
Jet, main (#70)
Loading…
↗
16
6BX1494317
Jet, main (#75)
Loading…
↗
17
6BV1494801
Jet (#35)
Loading…
↗
17
6BX1494804
Jet (#42)
Loading…
↗
18
6BX1455600
Spring
Loading…
↗
19
9858004006
Screw, pan head (7h3)
Loading…
↗
