F6AMH (2006)
CARBURETOR

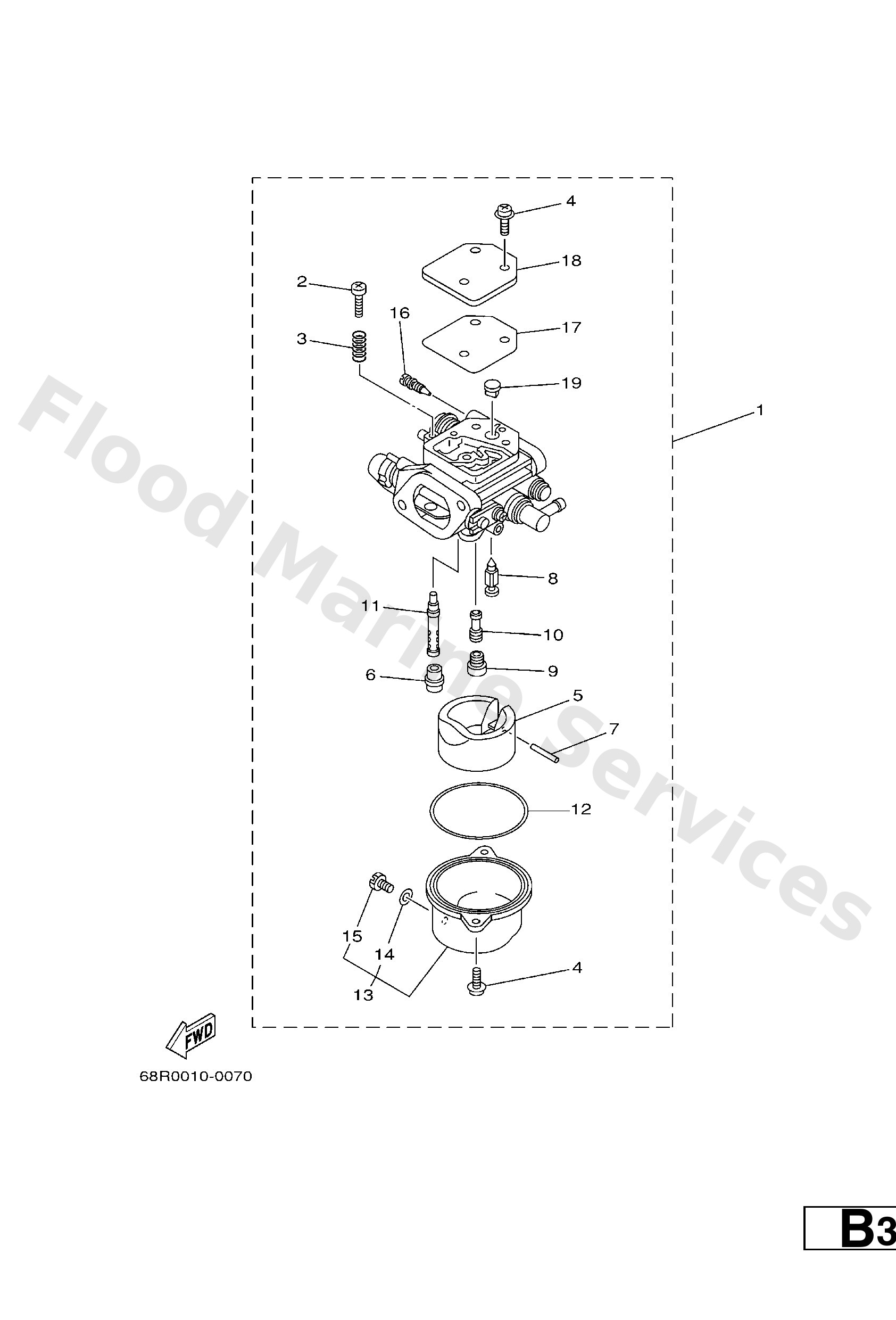

Diagram: CARBURETOR
Parts List
Reference
Description
Price
?
68T1430120
Carburetor & accel link 68t20
Loading…
↗
?
69F14301C0
Carburetor assembly 1
Loading…
↗
2
6E51432100
Screw, throttle
Loading…
↗
3
6J81433400
Spring, throttle
Loading…
↗
4
9798004112
Screw, pan head (686)
Loading…
↗
5
68T1438500
Float
Loading…
↗
6
67D1496600
Rubber cap
Loading…
↗
7
67D1438600
Pin, float
Loading…
↗
8
68T1454600
Valve, needle
Loading…
↗
8
68R1492E2H
Jet, Main (#55)
Loading…
↗
8
68T1492E37
Jet, main (#74)
Loading…
↗
8
68R1492F18
Jet, air slow
Loading…
↗
8
68T1492F1K
Jet, air slow (#39)
Loading…
↗
11
68T1492A00
Nozzle, main
Loading…
↗
12
67D1498400
Gasket, float chamber
Loading…
↗
13
68T1498100
Body, float chamber
Loading…
↗
14
6J81495900
Gasket, drin screw
Loading…
↗
15
66T1499100
Plug, drain
Loading…
↗
16
68T1432320
Screw, Air Adjusting
Loading…
↗
17
67D1453600
Gasket
Loading…
↗
18
67D1452700
Plate
Loading…
↗
19
68T1412600
Plug
Loading…
↗
1
60N1430130
Carburetor assembly 1
Loading…
↗
5
6AU1438500
Float
Loading…
↗
9
6AU1492E43
Jet, main (#86)
Loading…
↗
10
6AU1492F20
Jet, air slow (#40)
Loading…
↗
11
6AU1492A00
Nozzle, main
Loading…
↗
12
6AU1498400
Gasket, float chamber
Loading…
↗
13
6AU1498200
Body, float chamber
Loading…
↗
14
6AU1431B00
Ball
Loading…
↗
15
6AU1433500
Spring, Plunger
Loading…
↗
16
6AU1437100
Plunger, starter
Loading…
↗
17
6AU1431A00
Guide
Loading…
↗
18
6AU1491800
Ring
Loading…
↗
25
6AU1437900
Rod, starter
Loading…
↗
26
6AU1437300
Cover, plunger cap
Loading…
↗
