F8FMH (2021)
CARBURETOR

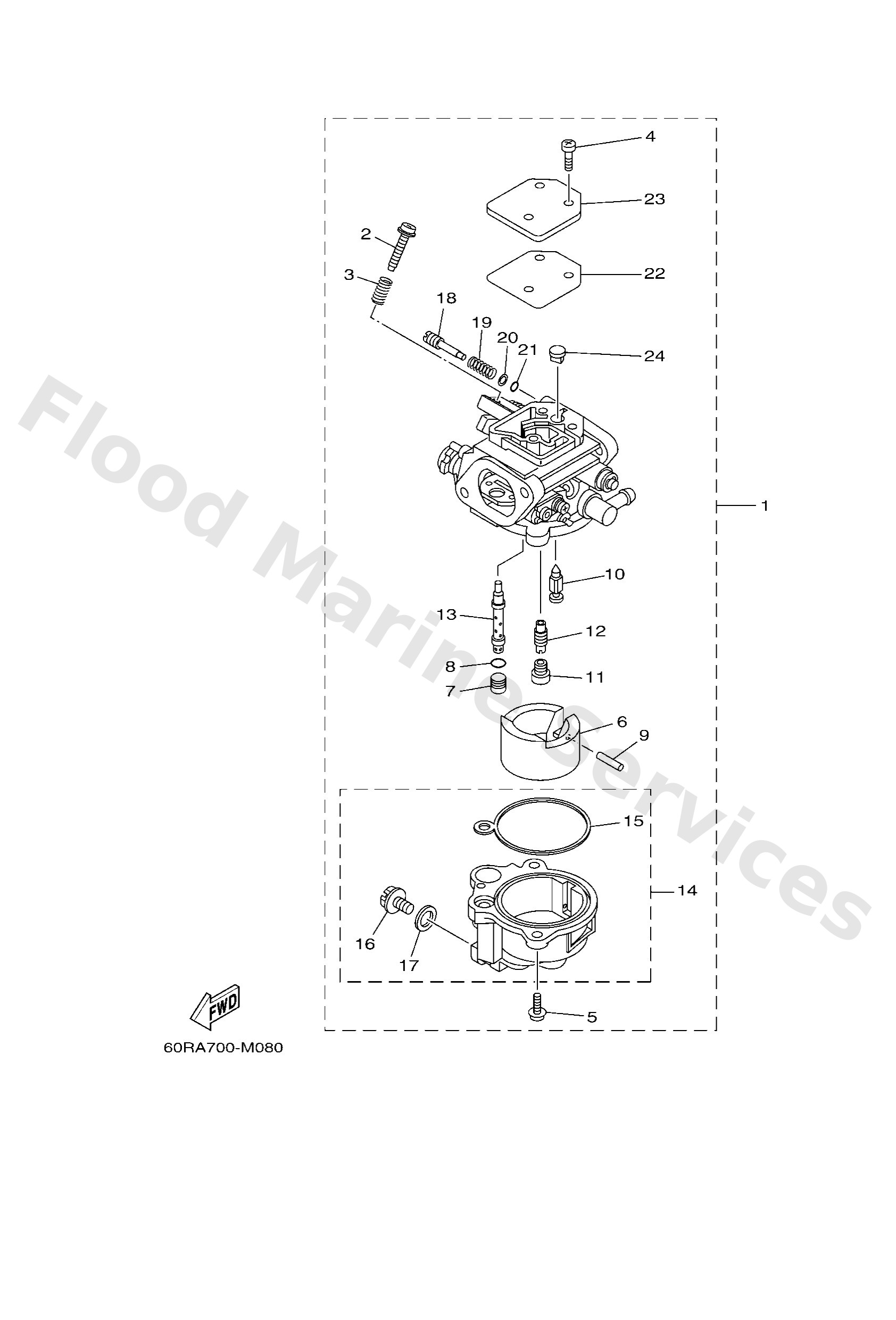

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
6FW1430151
Carburetor assembly 1
Loading…
↗
1
6FW1430121
Carburetor assembly 1
Loading…
↗
2
69W1432100
Screw, throttle
Loading…
↗
3
62Y1421200
Spring, pilot adjusting
Loading…
↗
4
6DR1432100
Screw, throttle
Loading…
↗
5
62Y1432100
Screw, throttle
Loading…
↗
6
6DR1438500
Float
Loading…
↗
7
6DR1432A00
Plug
Loading…
↗
8
6DR1456100
O-ring
Loading…
↗
9
4FP1438600
Pin, float
Loading…
↗
10
6DR1433600
Needle
Loading…
↗
11
6FW1434337
Jet, main (#74)
Loading…
↗
12
6FW1434221
Jet, pilot (#41)
Loading…
↗
13
6FW1434100
Nozzle, main
Loading…
↗
14
60S1438100
Body, float chamber
Loading…
↗
15
6DR1498400
Gasket, float chamber
Loading…
↗
16
62Y1438330
Screw, drain
Loading…
↗
17
6521439700
Ring, o
Loading…
↗
18
6DR1432310
Screw, air adjusting
Loading…
↗
19
6DR1433400
Spring, air adjusting
Loading…
↗
20
6DR1428500
Washer
Loading…
↗
21
6DR1439700
O-ring
Loading…
↗
22
6DR1481800
Cover gasket
Loading…
↗
23
6DR1415700
Cover, mixing
Loading…
↗
24
6DR1486200
Plug
Loading…
↗
