Yamaha Outboard Parts - CARBURETOR - F9.9FMH (2009) | Flood Marine

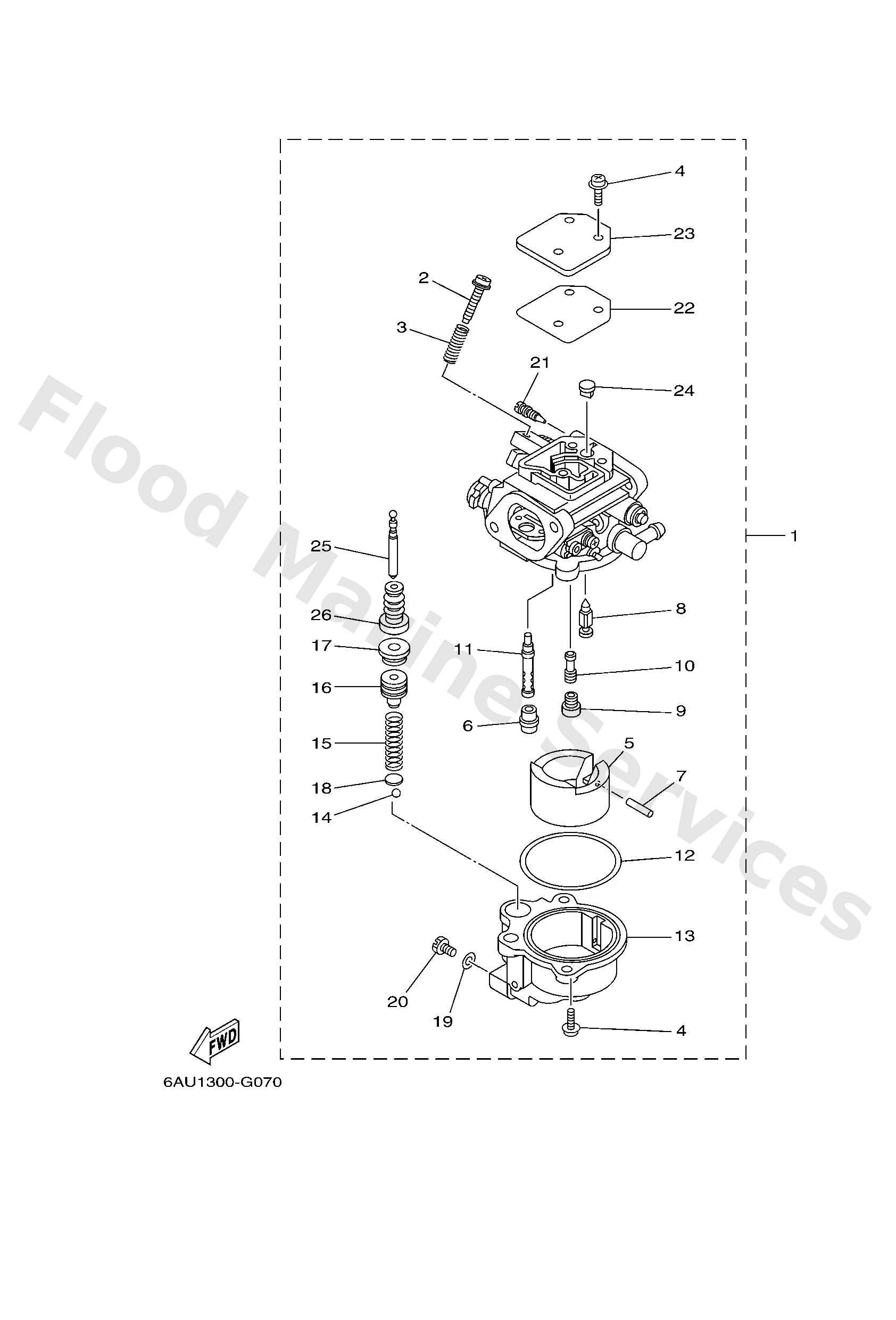

Diagram: CARBURETOR

Diagram

Parts List

Reference
Description
Price


1
6AU1430150
Carburetor & bolt set 6dr51
Loading…

↗
1
6AU1430120
Carburetor & bolt set 6dr21
Loading…

↗
2
6E51432100
Screw, throttle
Loading…

↗
3
6J81433400
Spring, throttle
Loading…

↗
4
9798004112
Screw, pan head (686)
Loading…

↗
5
6AU1438500
Float
Loading…

↗
6
67D1496600
Rubber cap
Loading…

↗
7
67D1438600
Pin, float
Loading…

↗
8
68T1454600
Valve, needle
Loading…

↗
9
6AU1492E43
Jet, main (#86)
Loading…

↗
10
6AU1492F20
Jet, air slow (#40)
Loading…

↗
11
6AU1492A00
Nozzle, main
Loading…

↗
12
6AU1498400
Gasket, float chamber
Loading…

↗
13
6AU1498200
Body, float chamber
Loading…

↗
14
6AU1431B00
Ball
Loading…

↗
15
6AU1433500
Spring, Plunger
Loading…

↗
16
6AU1437100
Plunger, starter
Loading…

↗
17
6AU1431A00
Guide
Loading…

↗
18
6AU1491800
Ring
Loading…

↗
19
6J81495900
Gasket, drin screw
Loading…

↗
20
66T1499100
Plug, drain
Loading…

↗
21
68T1432320
Screw, Air Adjusting
Loading…

↗
22
67D1453600
Gasket
Loading…

↗
23
67D1452700
Plate
Loading…

↗
24
68T1412600
Plug
Loading…

↗
25
6AU1437900
Rod, starter
Loading…

↗
26
6AU1437300
Cover, plunger cap
Loading…

↗
