F9.9HMH (2015)
CARBURETOR

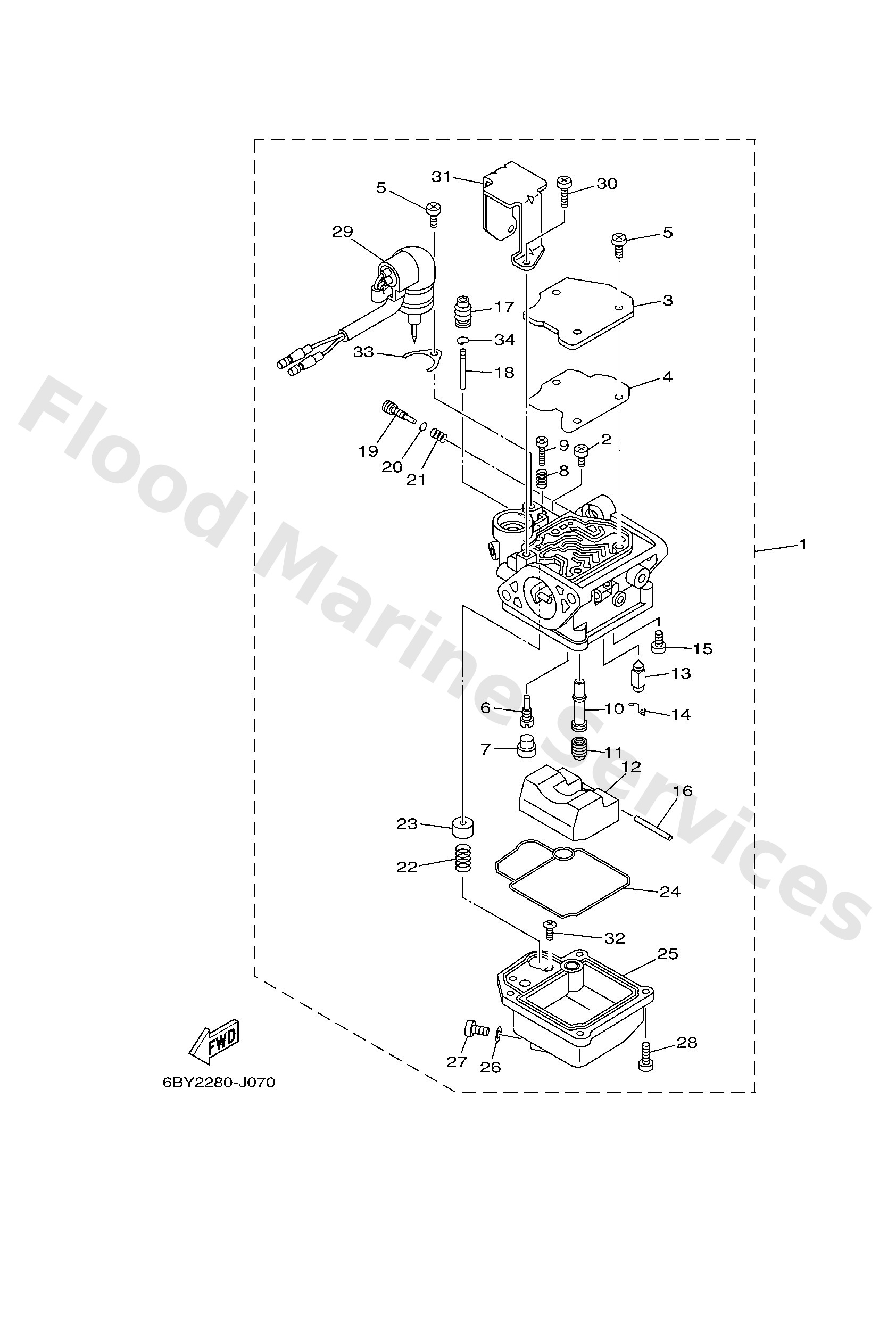

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
6AG14301F0
Carburetor assembly 1
Loading…
↗
1
6AG14301B0
Carburetor assembly 1
Loading…
↗
2
9858004006
Screw, pan head (7h3)
Loading…
↗
3
65W1457200
Plate
Loading…
↗
4
65W1412610
Gasket
Loading…
↗
5
9798004110
Screw, pan head (e56)
Loading…
↗
6
6AG1494802
FOR 6AG-14301-B0
Jet (#38)
Loading…
↗
6
6AH1494802
FOR 6AG-14301-F0
Jet (#38)
Loading…
↗
7
6791496600
Rubber cap
Loading…
↗
8
9050110326
Spring coil(663)(carb)
Loading…
↗
9
63V1452300
Screw, stop
Loading…
↗
10
6AH1494720
Jet, needle
Loading…
↗
11
6761494319
Jet, main (#80)
Loading…
↗
12
6AH1498500
Float
Loading…
↗
13
6AH1454600
Valve, needle
Loading…
↗
14
6331415900
Clip
Loading…
↗
15
9858004008
Screw, pan head (713)
Loading…
↗
16
6H41454800
Pin, float arm
Loading…
↗
17
65W1437302
Cover, plunger cap
Loading…
↗
18
6AH1437900
Rod, starter
Loading…
↗
19
6AH1492320
Screw, pilot
Loading…
↗
20
67F1439810
O-ring
Loading…
↗
21
67C1455500
Spring
Loading…
↗
22
65W1433500
Spring, plunger
Loading…
↗
23
6AH1437100
Plunger, starter
Loading…
↗
24
6AH1438400
Gasket, float chamber
Loading…
↗
25
6AH1498000
Body, float chamber
Loading…
↗
26
65W1439800
Washer
Loading…
↗
27
65W1499200
Screw, drain
Loading…
↗
28
9798004114
Screw, pan head(ga5)
Loading…
↗
29
6AH1438001
FOR 6AG-14301-B0
Prime starter assembly
Loading…
↗
29
6AH1438011
FOR 6AG-14301-F0
Prime starter assembly
Loading…
↗
30
9798004108
Screw, with washer(6m6)
Loading…
↗
31
6AH1434600
Plate
Loading…
↗
32
67C1456700
Screw
Loading…
↗
33
65W1434600
Plate
Loading…
↗
34
65W1439G00
Clip 1
Loading…
↗
