FT25BED (2002)
CARBURETOR

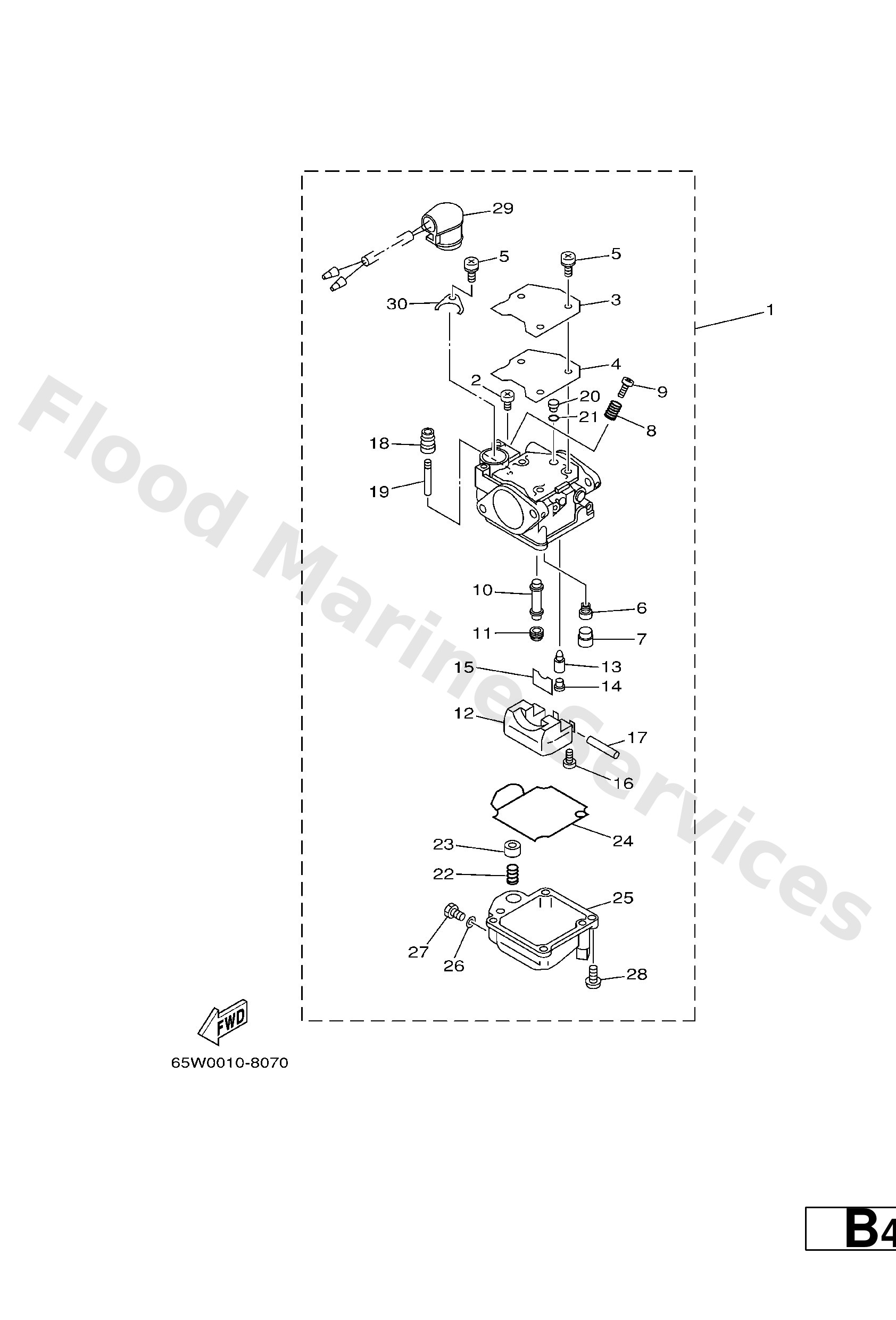

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
65W--14901--00
Carburetor assembly 1
Loading…
↗
2
98580--04006
Screw, pan head (7h3)
Loading…
↗
3
65W--14572--00
Plate
Loading…
↗
4
65W--14126--00
Gasket
Loading…
↗
5
97803--04010
Screw, pan head (e56)
Loading…
↗
6
676--14948--07
Jet (#50)
Loading…
↗
7
679--14966--00
Rubber cap
Loading…
↗
8
90501--10326
Spring coil(663)(carb)
Loading…
↗
9
63V--14523--00
Screw, stop
Loading…
↗
10
65W--14947--00
Jet, Needle
Loading…
↗
11
65W--14943--29
Jet, main (#112)
Loading…
↗
12
63V--14985--00
Float
Loading…
↗
13
6G1--14546--00
Valve, needle
Loading…
↗
14
676--14186--00
Pin, valve
Loading…
↗
15
663--14159--00
Clip
Loading…
↗
16
98580--04008
Screw, pan head (713)
Loading…
↗
17
6H4--14548--00
Pin, float arm
Loading…
↗
18
65W--14373--00
Cover, plunger cap
Loading…
↗
19
65W--14379--00
Rod, starter
Loading…
↗
20
65W--1414F--00
Jet, pilot (# 52)
Loading…
↗
21
65W--14147--00
O-ring
Loading…
↗
22
65W--14335--00
Spring, plunger
Loading…
↗
23
65W--14371--00
Plunger, starter
Loading…
↗
24
65W--14384--00
Gasket, float chamber
Loading…
↗
25
65W--14980--00
Body, float chamber
Loading…
↗
26
65W--14398--00
Washer
Loading…
↗
27
65W--14992--00
Screw, drain
Loading…
↗
28
97980--04114
Screw, pan head(ga5)
Loading…
↗
29
65W1438000
Prime starter assembly
Loading…
↗
30
65W--14346--00
Plate
Loading…
↗
