FT25BET (2003)
CARBURETOR

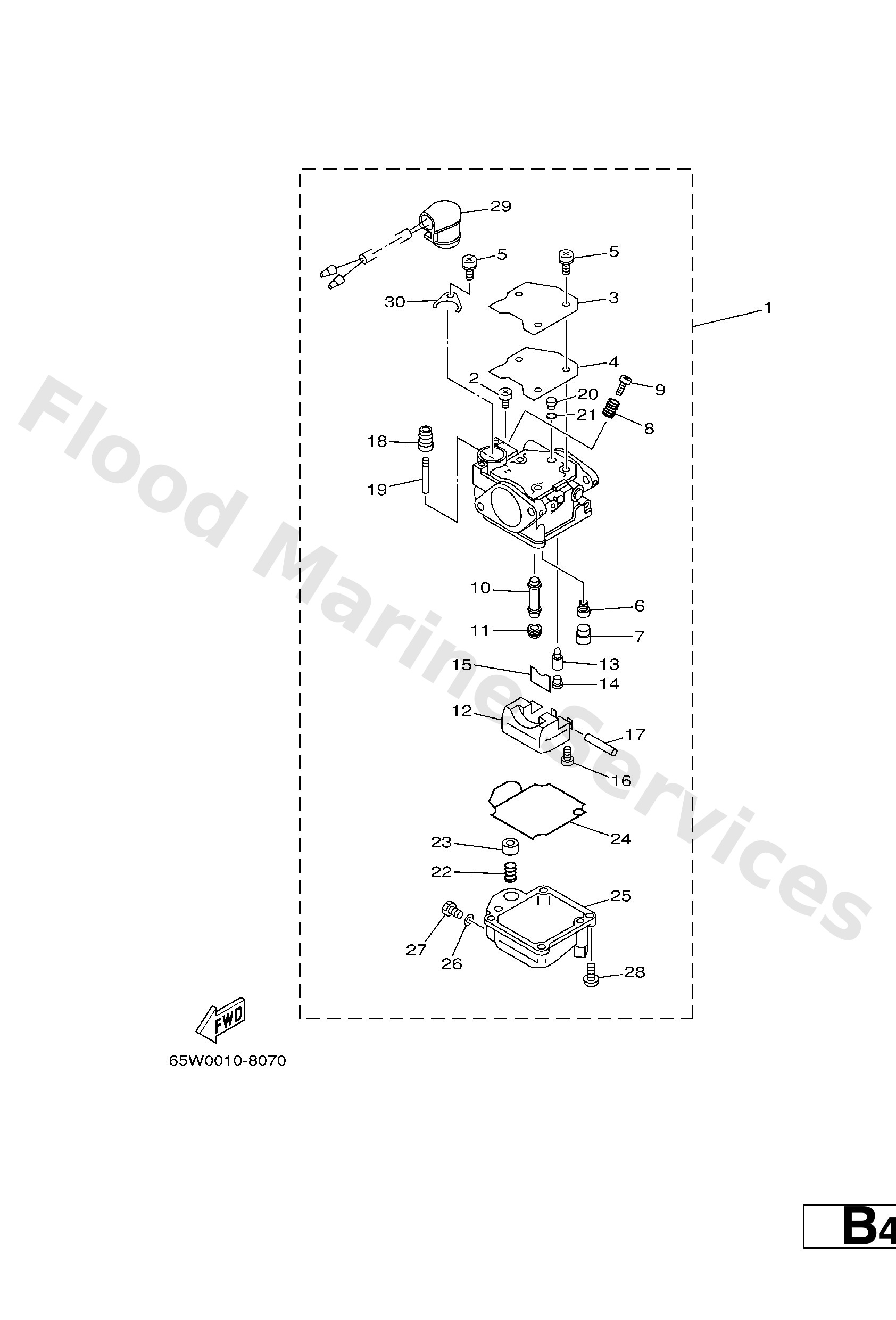

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
65W−14901−00
Carburetor assembly 1
Loading…
↗
2
98580−04006
Screw, pan head (7h3)
Loading…
↗
3
65W−14572−00
Plate
Loading…
↗
4
65W−14126−00
Gasket
Loading…
↗
5
97803−04010
Screw, pan head (e56)
Loading…
↗
6
676−14948−07
Jet (#50)
Loading…
↗
7
679−14966−00
Rubber cap
Loading…
↗
8
90501−10326
Spring coil(663)(carb)
Loading…
↗
9
63V−14523−00
Screw, stop
Loading…
↗
10
65W−14947−00
Jet, Needle
Loading…
↗
11
65W−14943−29
Jet, main (#112)
Loading…
↗
12
63V−14985−00
Float
Loading…
↗
13
6G1−14546−00
Valve, needle
Loading…
↗
14
676−14186−00
Pin, valve
Loading…
↗
15
663−14159−00
Clip
Loading…
↗
16
98580−04008
Screw, pan head (713)
Loading…
↗
17
6H4−14548−00
Pin, float arm
Loading…
↗
18
65W−14373−00
Cover, plunger cap
Loading…
↗
19
65W−14379−00
Rod, starter
Loading…
↗
20
65W−1414F−00
Jet, pilot (# 52)
Loading…
↗
21
65W−14147−00
O-ring
Loading…
↗
22
65W−14335−00
Spring, plunger
Loading…
↗
23
65W−14371−00
Plunger, starter
Loading…
↗
24
65W−14384−00
Gasket, float chamber
Loading…
↗
25
65W−14980−00
Body, float chamber
Loading…
↗
26
65W−14398−00
Washer
Loading…
↗
27
65W−14992−00
Screw, drain
Loading…
↗
28
97980−04114
Screw, pan head(ga5)
Loading…
↗
29
65W−14380−00
Prime starter assembly
Loading…
↗
30
65W−14346−00
Plate
Loading…
↗
