Yamaha Outboard Parts - CARBURETOR - FT25FET (2013) | Flood Marine

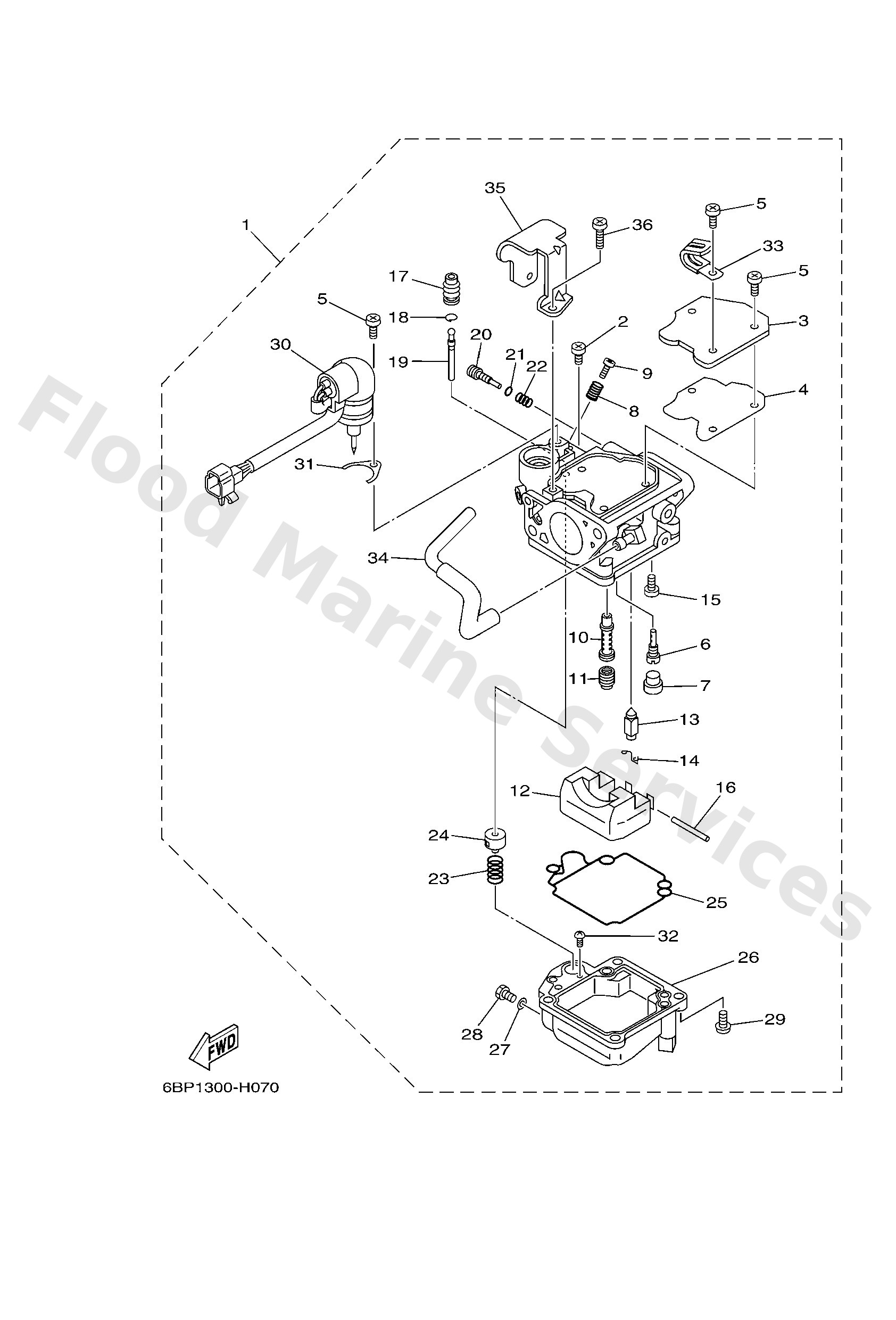

Diagram: CARBURETOR

Diagram

Parts List

Reference
Description
Price


1
6BL1430110
Carburetor assembly 1
Loading…

↗
2
9858004006
Screw, pan head (7h3)
Loading…

↗
3
65W1457200
Plate
Loading…

↗
4
65W1412610
Gasket
Loading…

↗
5
9780304010
Screw, pan head (e56)
Loading…

↗
6
6761494805
Jet (#45)
Loading…

↗
7
6791496600
Rubber cap
Loading…

↗
8
9050110326
Spring coil(663)(carb)
Loading…

↗
9
63V1452300
Screw, stop
Loading…

↗
10
65W1494790
Jet, needle
Loading…

↗
11
6BL1494328
Jet, main (#105)
Loading…

↗
12
63V1498500
Float
Loading…

↗
13
6AH1454600
Valve, needle
Loading…

↗
14
6631415900
Clip
Loading…

↗
15
9858004008
Screw, pan head (713)
Loading…

↗
16
6H41454800
Pin, float arm
Loading…

↗
17
65W1437302
Cover, plunger cap
Loading…

↗
18
65W1439G00
Clip 1
Loading…

↗
19
65W1437900
Rod, starter
Loading…

↗
20
67C1492320
Screw, pilot
Loading…

↗
21
67C1439700
O-ring
Loading…

↗
22
67C1455500
Spring
Loading…

↗
23
65W1433500
Spring, plunger
Loading…

↗
24
65W1437100
Plunger, starter
Loading…

↗
25
65W1438400
Gasket, float chamber
Loading…

↗
26
65W1498020
Body, float chamber
Loading…

↗
27
65W1439800
Washer
Loading…

↗
28
65W1499200
Screw, drain
Loading…

↗
29
9798004114
Screw, pan head(ga5)
Loading…

↗
30
6BL1438000
Prime starter assembly
Loading…

↗
31
65W1434600
Plate
Loading…

↗
32
67C1456700
Screw
Loading…

↗
33
67F1425500
Plate
Loading…

↗
34
65W1480700
Hose comp.
Loading…

↗
35
6BL1434600
Plate
Loading…

↗
36
9798004108
Screw, with washer(6m6)
Loading…

↗
