FT50CET (2003)
CARBURETOR

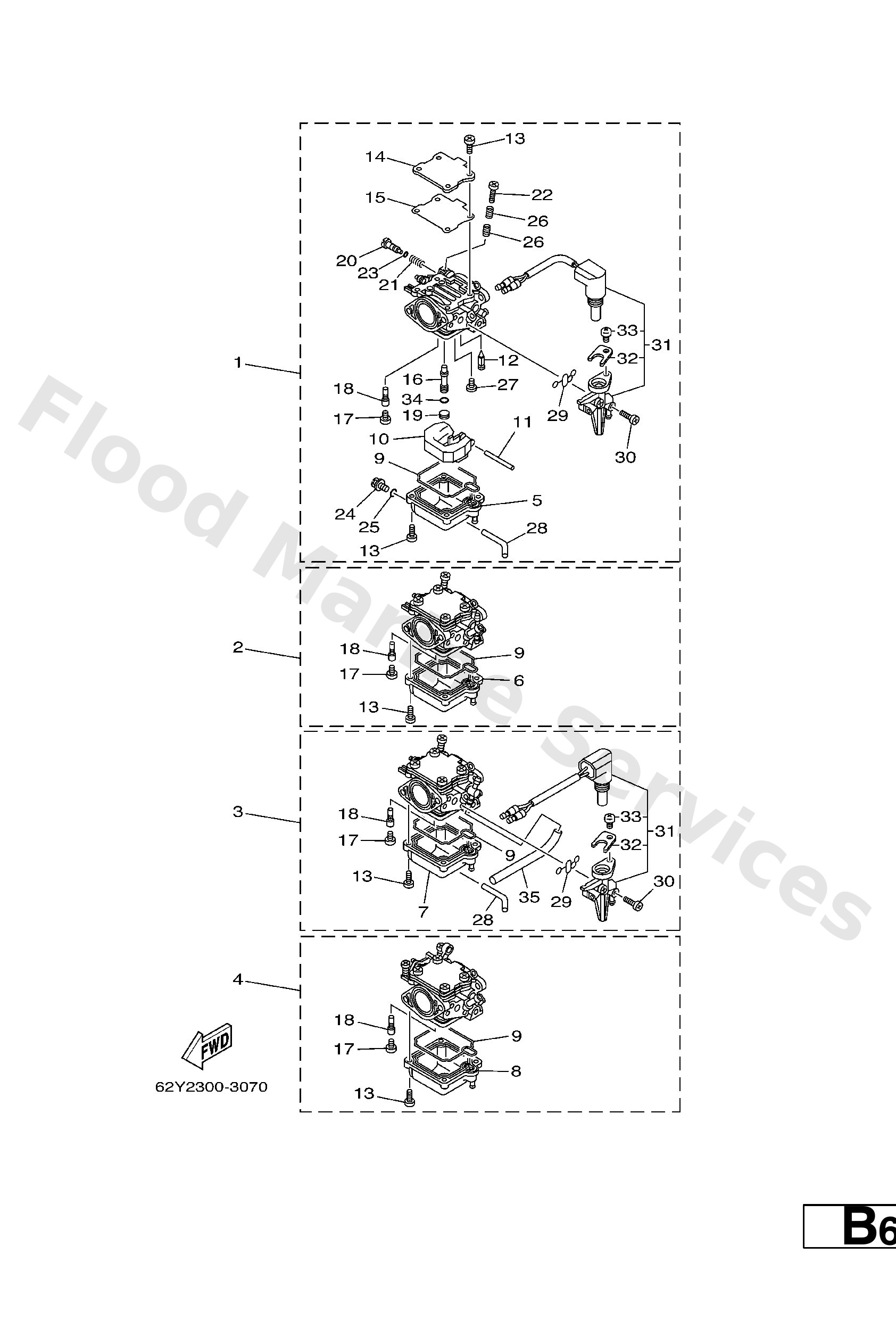

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
62Y−14901−30
Carburetor assembly 1
Loading…
↗
2
62Y−14902−30
Carburetor assembly 2
Loading…
↗
3
62Y−14903−30
Carburetor assembly 3
Loading…
↗
4
62Y−14904−31
Carburetor assembly 4
Loading…
↗
5
62Y−14381−30
#1
Body, float chamber
Loading…
↗
6
62Y−14381−40
#2
Body, float chamber
Loading…
↗
7
62Y−14381−50
#3
Body, float chamber
Loading…
↗
8
62Y−14381−61
#4
Body, float chamber
Loading…
↗
9
62Y−14384−30
Gasket, float chamber
Loading…
↗
10
6L2−14385−00
Float
Loading…
↗
11
6E5−14386−01
Pin, float
Loading…
↗
12
62Y−14392−00
Valve, needle
Loading…
↗
13
62Y−14321−00
Screw, throttle
Loading…
↗
14
62Y−14157−30
Cover, mixing
Loading…
↗
15
62Y−14399−30
Valve, bimetal
Loading…
↗
16
62Y−14341−30
Nozzle, main
Loading…
↗
17
62Y−14343−62
#1
Jet, main (#124)
Loading…
↗
17
62Y−14343−63
#2
Jet, main (#126)
Loading…
↗
17
62Y−14343−58
#3
Jet, main (#116)
Loading…
↗
17
62Y−14343−57
#4
Jet, main (#114)
Loading…
↗
18
64J−14342−20
Jet, pilot (#39)
Loading…
↗
19
62Y−14355−30
Plug
Loading…
↗
20
62Y−14323−30
Screw, air adjusting
Loading…
↗
21
62Y−14334−00
Spring, air adjusting
Loading…
↗
22
62Y−14321−10
Screw, throttle
Loading…
↗
23
2T4−14397−00
O-ring
Loading…
↗
24
62Y−14383−30
Screw, drain
Loading…
↗
25
652−14397−00
Ring, o
Loading…
↗
26
62Y−14212−00
Spring, pilot adjusting
Loading…
↗
27
98980−04006
Screw, bind(6l2)
Loading…
↗
28
62Y−24311−30
#1,3
Pipe, fuel 1
Loading…
↗
29
62Y−14398−30
#1,3
Gasket
Loading…
↗
30
62Y−14567−30
#1
Screw
Loading…
↗
30
62Y−14567−40
#3
Screw
Loading…
↗
31
62Y−14380−10
#1
Prime starter assembly
Loading…
↗
31
62Y−14380−20
#3
Prime starter assembly
Loading…
↗
32
62Y−14243−00
Plate
Loading…
↗
33
97890−04007
Screw, pan head (7h3)
Loading…
↗
34
62Y−14227−00
O-ring
Loading…
↗
35
62Y−24313−90
#3
Pipe 3
Loading…
↗
