Yamaha Outboard Parts - CARBURETOR - FT8DEP (2007) | Flood Marine

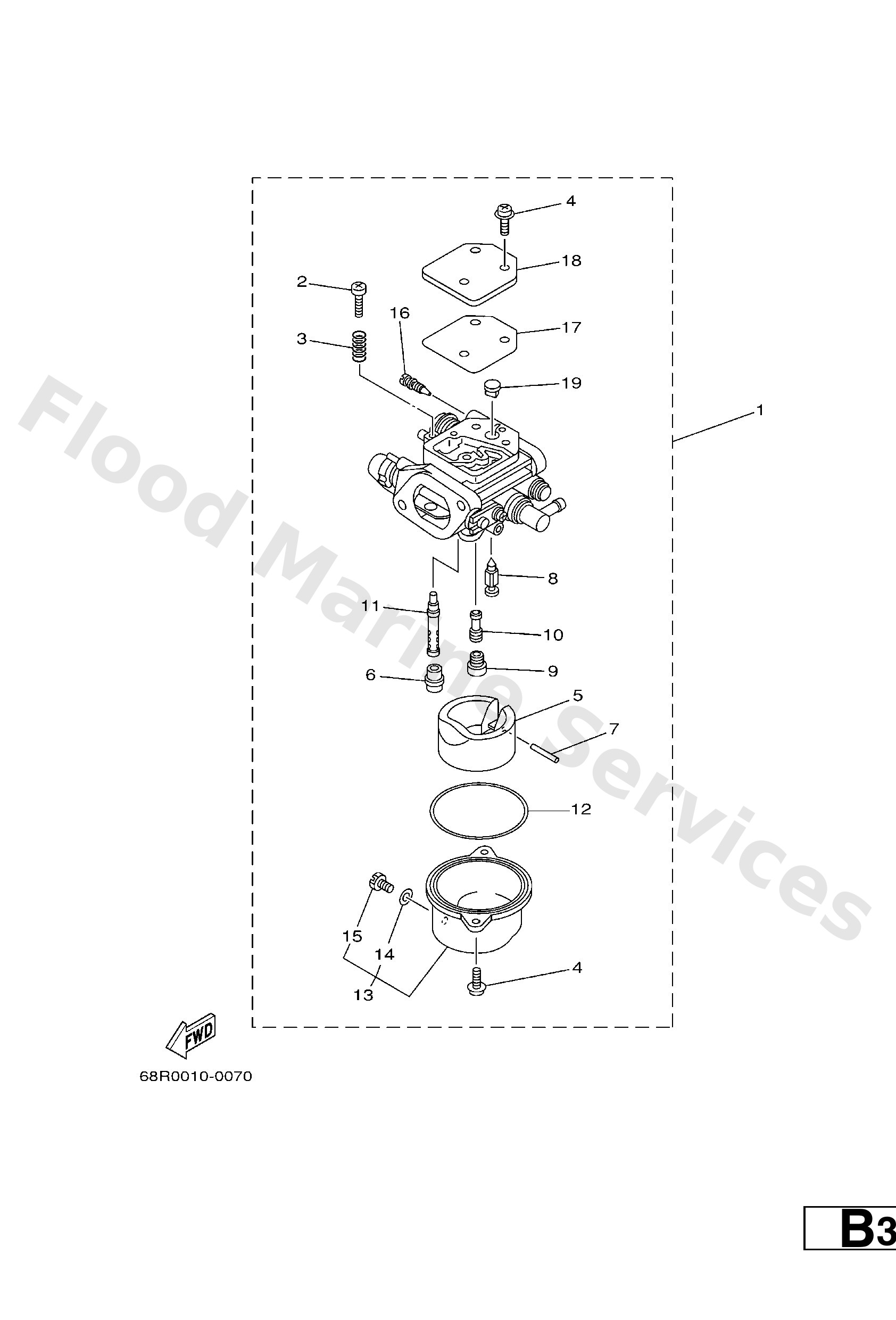

Diagram: CARBURETOR

Diagram

Parts List

Reference
Description
Price


1
68T1430150
Carburetor & accel link 68t50
Loading…

↗
1
68T1430120
Carburetor & accel link 68t20
Loading…

↗
2
6E51432100
Screw, throttle
Loading…

↗
3
6J81433400
Spring, throttle
Loading…

↗
4
9798004112
Screw, pan head (686)
Loading…

↗
5
68T1438500
Float
Loading…

↗
6
67D1496600
Rubber cap
Loading…

↗
7
67D1438600
Pin, float
Loading…

↗
8
68T1454600
Valve, needle
Loading…

↗
9
68T1492E37
Jet, main (#74)
Loading…

↗
10
68T1492F1K
Jet, air slow (#39)
Loading…

↗
11
68T1492A00
Nozzle, main
Loading…

↗
12
67D1498400
Gasket, float chamber
Loading…

↗
13
68T1498100
Body, float chamber
Loading…

↗
14
6J81495900
Gasket, drin screw
Loading…

↗
15
66T1499100
Plug, drain
Loading…

↗
16
68T1432320
Screw, Air Adjusting
Loading…

↗
17
67D1453600
Gasket
Loading…

↗
18
67D1452700
Plate
Loading…

↗
19
68T1412600
Plug
Loading…

↗
