Yamaha Outboard Parts - CARBURETOR - FT8DMH (2013) | Flood Marine

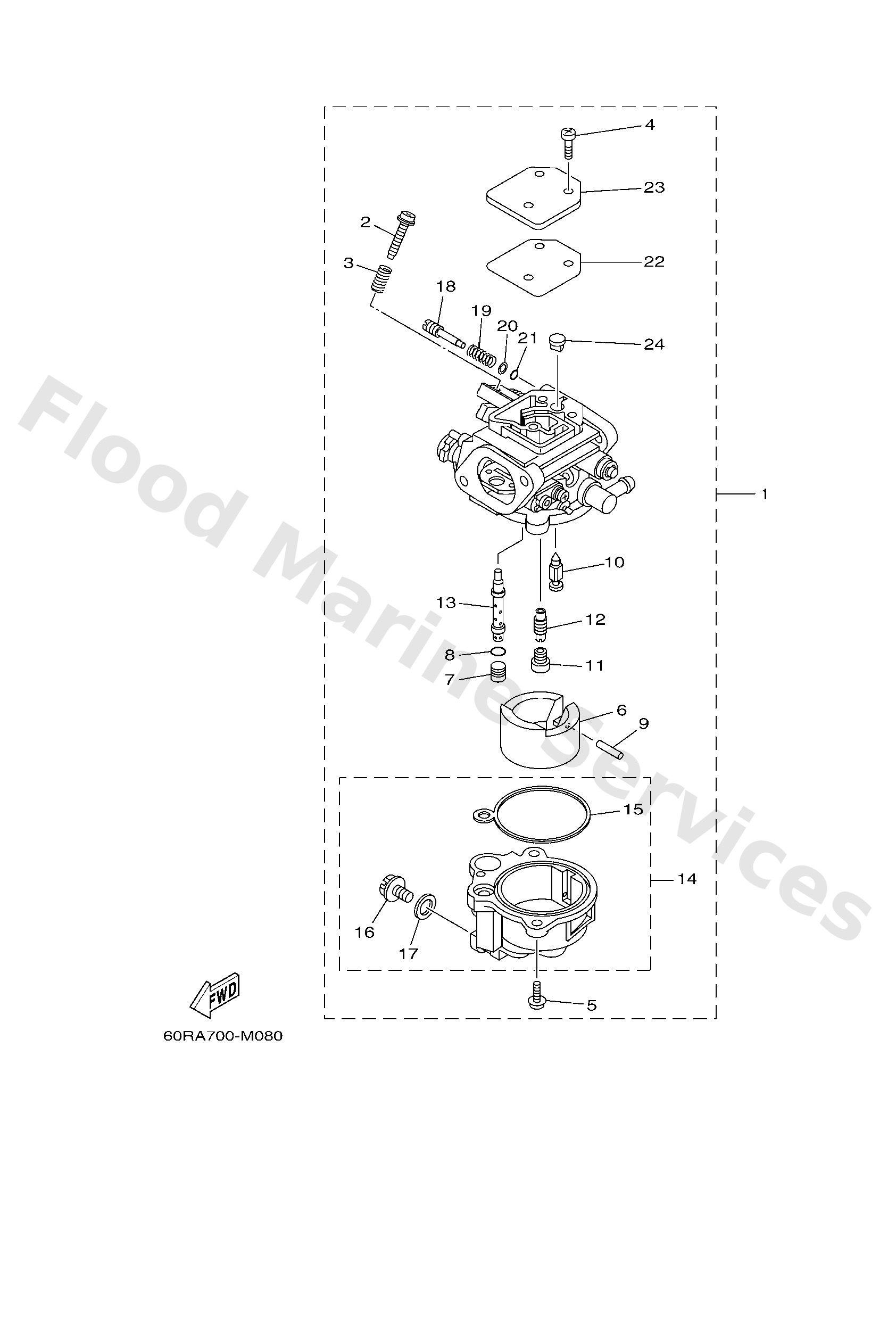

Diagram: CARBURETOR

Diagram

Parts List

Reference
Description
Price


1
60S1430150
Carburetor assembly 1
Loading…

↗
1
60S1430120
Carburetor assembly 1
Loading…

↗
2
69W1432100
Screw, throttle
Loading…

↗
3
62Y1421200
Spring, pilot adjusting
Loading…

↗
4
6DR1432100
Screw, throttle
Loading…

↗
5
62Y1432100
Screw, throttle
Loading…

↗
6
6DR1438500
Float
Loading…

↗
7
6DR1432A00
Plug
Loading…

↗
8
6DR1456100
O-ring
Loading…

↗
9
4FP1438600
Pin, float
Loading…

↗
10
6DR1433600
Needle
Loading…

↗
11
60S1434337
Jet, main (#73)
Loading…

↗
12
60S1434220
Jet, pilot (#40)
Loading…

↗
13
60S1434100
Nozzle, main
Loading…

↗
14
60S1438100
Body, float chamber
Loading…

↗
15
6DR1498400
Gasket, float chamber
Loading…

↗
16
62Y1438330
Screw, drain
Loading…

↗
17
6521439700
Ring, o
Loading…

↗
18
6DR1432310
Screw, air adjusting
Loading…

↗
19
6DR1433400
Spring, air adjusting
Loading…

↗
20
6DR1428500
Washer
Loading…

↗
21
6DR1439700
O-ring
Loading…

↗
22
6DR1481800
Cover gasket
Loading…

↗
23
6DR1415700
Cover, mixing
Loading…

↗
24
6DR1486200
Plug
Loading…

↗
