FT9.9DEP (2002)
CARBURETOR

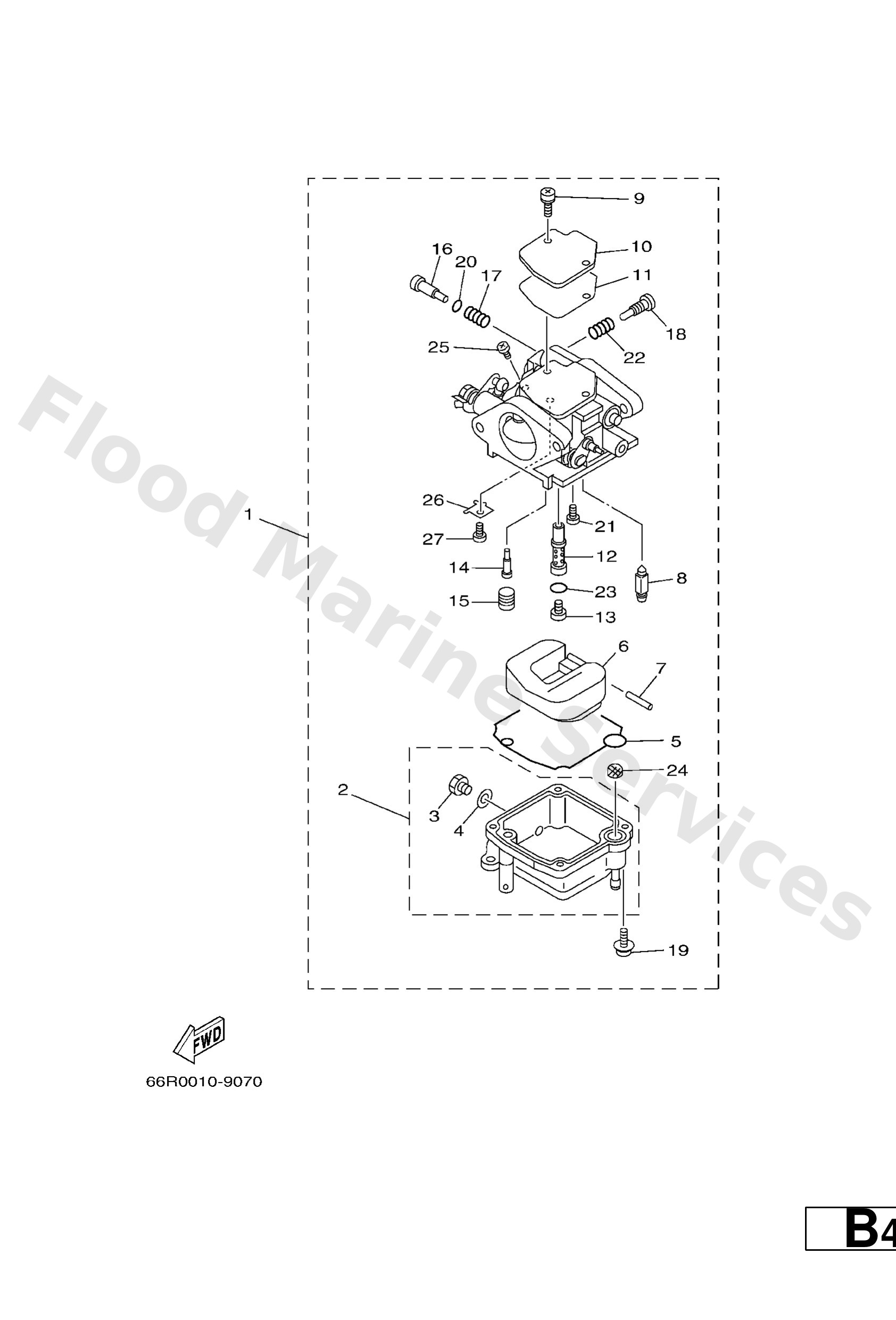

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
66R−14301−00
Carburetor assembly 1
Loading…
↗
2
66N−14381−00
Body, Float Chamber
Loading…
↗
3
62Y−14383−00
Screw, drain
Loading…
↗
4
66M−14398−00
Gasket
Loading…
↗
5
66M−14384−00
Gasket, float chamber
Loading…
↗
6
6L2−14385−00
Float
Loading…
↗
7
6E5−14386−01
Pin, float
Loading…
↗
8
6L2−14392−00
Valve, needle
Loading…
↗
9
97980−04110
Screw, pan head (e56)
Loading…
↗
10
6L2−14157−00
Cover, mixing
Loading…
↗
11
62Y−14399−00
Gasket
Loading…
↗
12
66N−14341−00
Nozzle, main
Loading…
↗
13
66N−14343−34
Jet, main (#68)
Loading…
↗
14
66M−14342−23
Jet, pilot (#45)
Loading…
↗
15
62Y−14355−00
Plug
Loading…
↗
16
5H0−14323−00
Pilot screw set
Loading…
↗
17
30X−14334−00
Spring, air adjusting
Loading…
↗
18
62Y−14521−00
Screw, adjust
Loading…
↗
19
97980−04112
Screw, pan head (686)
Loading…
↗
20
62Y−14397−00
O-ring
Loading…
↗
21
98980−04006
Screw, bind(6l2)
Loading…
↗
22
646−14212−01
Spring, pilot adjusting
Loading…
↗
23
6F5−14397−00
O-ring
Loading…
↗
24
66M−14827−00
Filter
Loading…
↗
25
97890−04005
Screw, pan head(6g8)
Loading…
↗
26
66M−14157−00
Plate
Loading…
↗
27
98580−03005
Screw, pan head(78g)
Loading…
↗
