FT9.9DMH (2008)
CARBURETOR

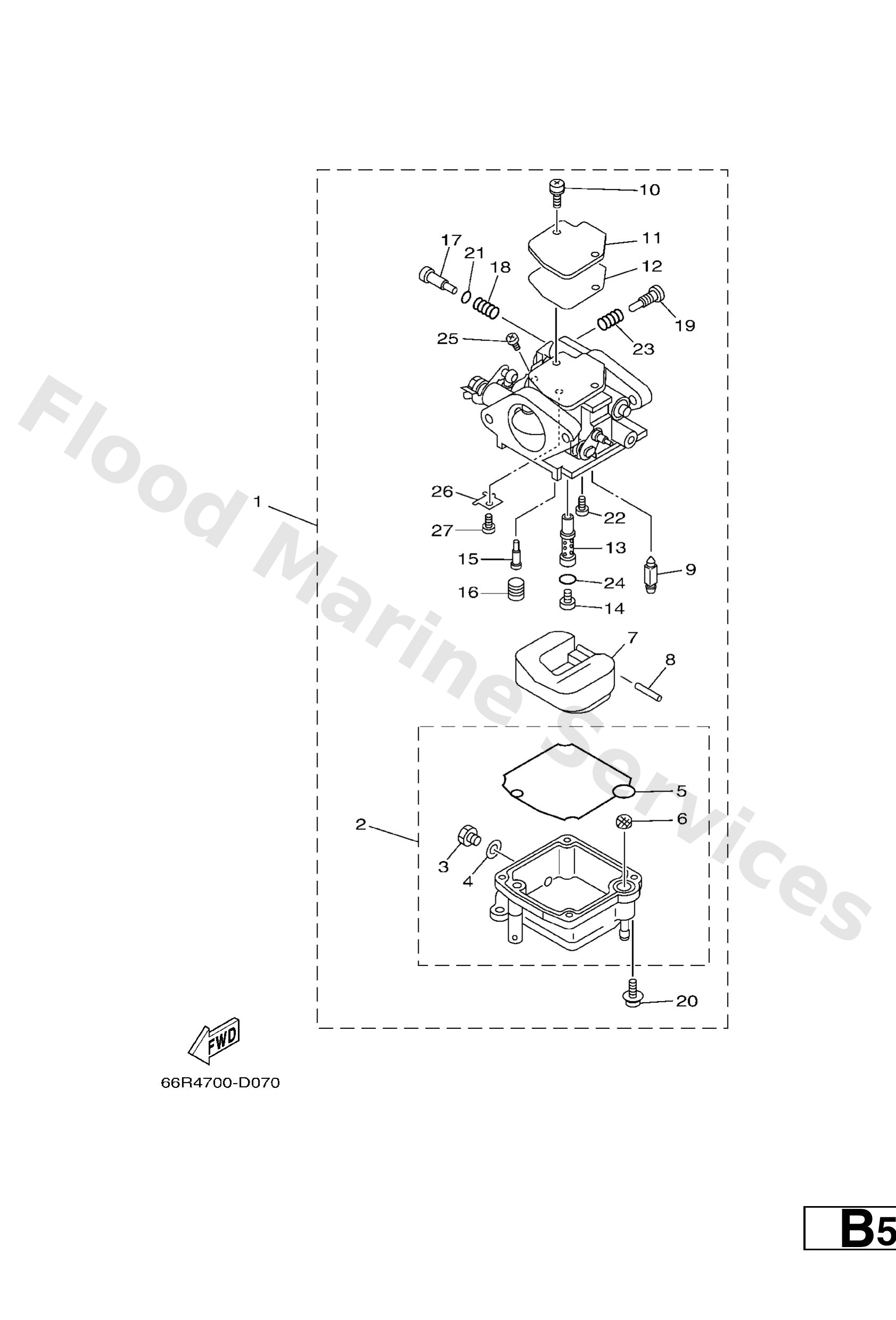

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
66R1430100
Carburetor assembly 1
Loading…
↗
2
66N1438100
Body, Float Chamber
Loading…
↗
3
62Y1438300
Screw, drain
Loading…
↗
4
66M1439800
Gasket
Loading…
↗
5
66M1438400
Gasket, float chamber
Loading…
↗
6
66M1482700
Filter
Loading…
↗
7
6L21438500
Float
Loading…
↗
8
6E51438601
Pin, float
Loading…
↗
9
6L21439200
Valve, needle
Loading…
↗
10
9798004110
Screw, pan head (e56)
Loading…
↗
11
6L21415700
Cover, mixing
Loading…
↗
12
62Y1439900
Gasket
Loading…
↗
13
66N1434100
Nozzle, main
Loading…
↗
14
66N1434334
Jet, main (#68)
Loading…
↗
15
66M1434223
Jet, pilot (#45)
Loading…
↗
16
62Y1435500
Plug
Loading…
↗
17
5H01432300
Pilot screw set
Loading…
↗
18
30X1433400
Spring, air adjusting
Loading…
↗
19
62Y1452100
Screw, adjust
Loading…
↗
20
9798004112
Screw, pan head (686)
Loading…
↗
21
62Y1439700
O-ring
Loading…
↗
22
9898004006
Screw, bind(6l2)
Loading…
↗
23
6461421201
Spring, pilot adjusting
Loading…
↗
24
6F51439700
O-ring
Loading…
↗
25
9789004005
Screw, pan head(6g8)
Loading…
↗
26
66M1415700
Plate
Loading…
↗
27
9858003005
Screw, pan head(78g)
Loading…
↗
