Yamaha Outboard Parts - CARBURETOR - L200FETO (2003) | Flood Marine

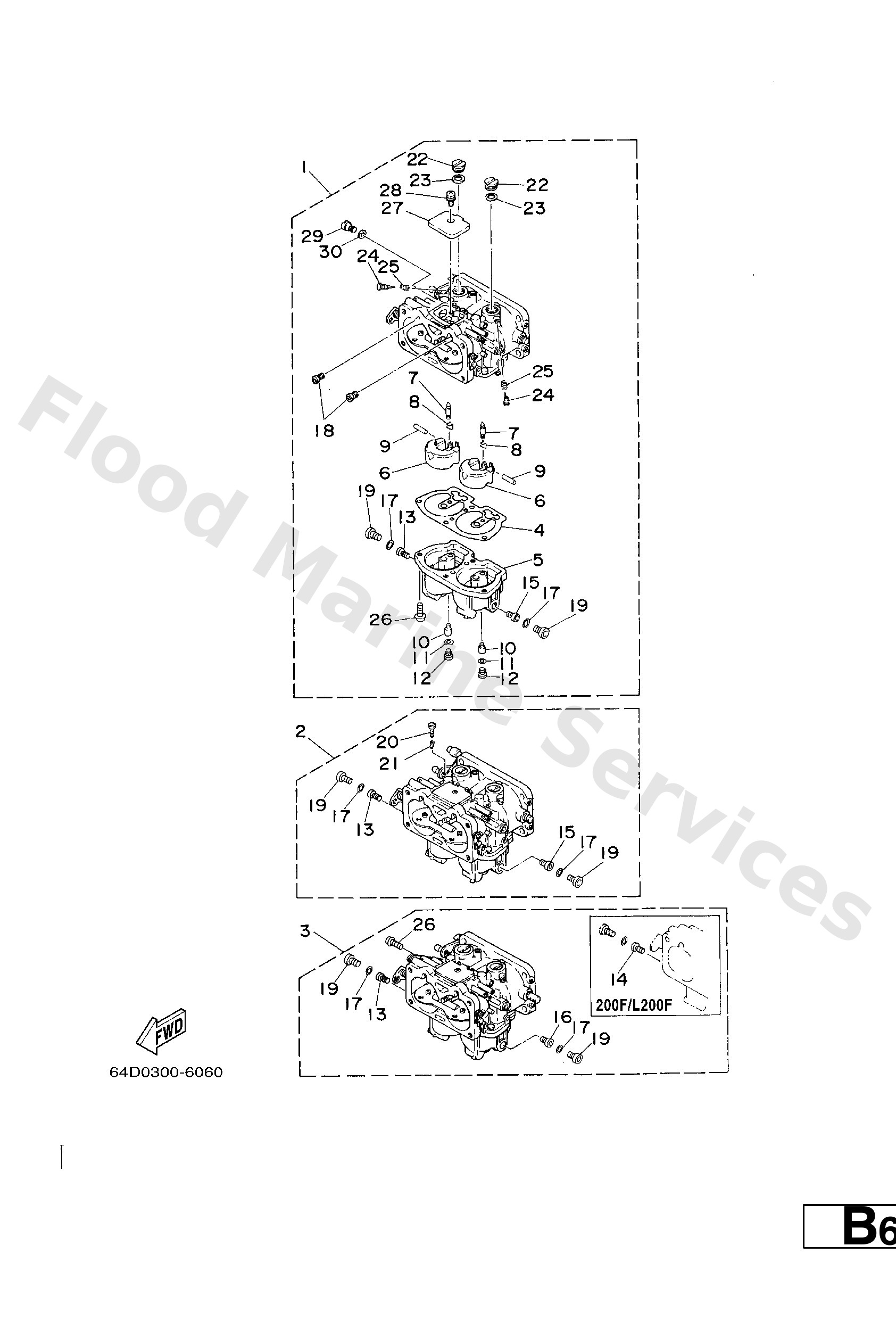

Diagram: CARBURETOR

Diagram

Parts List

Reference
Description
Price


1
64D−14301−01
Carburetor assembly 1
Loading…

↗
1
64C−14301−01
Carburetor assembly 1
Loading…

↗
1
64E−14301−01
Carburetor assembly 1 (64e-03)
Loading…

↗
2
64C−14302−01
Carburetor assembly 2
Loading…

↗
2
64D−14302−01
Carburetor assembly 2
Loading…

↗
2
64E−14302−01
Carburetor assembly 2
Loading…

↗
3
64C−14303−01
Carburetor assembly 3 (64c-03)
Loading…

↗
3
64D−14303−01
Carburetor assembly 3
Loading…

↗
3
64E−14303−01
Carburetor assembly 3
Loading…

↗
4
64D−14384−01
Gasket, float chamber
Loading…

↗
5
64D−14381−00
Body, float chamber
Loading…

↗
6
6E5−14385−02
Float
Loading…

↗
7
6E5−14546−00
Valve, needle
Loading…

↗
8
6E5−14159−00
Clip
Loading…

↗
9
6E5−14386−02
Pin, float
Loading…

↗
10
64D−1492F−42
Jet, air slow
Loading…

↗
11
61U−14959−00
Gasket
Loading…

↗
12
64D−14394−00
Valve, drain
Loading…

↗
13
64D−1492E−75
Jet, main
Loading…

↗
14
64D−1492E−76
Jet, main
Loading…

↗
15
64D−1492E−77
Jet, main
Loading…

↗
16
64D−1492E−79
Jet, main
Loading…

↗
17
6E5−14398−01
Gasket
Loading…

↗
18
61A−1492H−12
Jet, slow air (#60)
Loading…

↗
19
61A−14383−01
Screw, drain
Loading…

↗
20
6E5−14321−00 #2
Screw, throttle
Loading…

↗
21
6J8−14334−00 #2
Spring, throttle
Loading…

↗
22
6E5−14328−01
Plug
Loading…

↗
23
6E5−14979−00
Gasket
Loading…

↗
24
6E5−14323−03
Screw, air adjusting
Loading…

↗
25
6E5−14223−00
Spring, air adjusting
Loading…

↗
26
97980−05116
Screw, pan head
Loading…

↗
27
6E5−14527−01
Plate
Loading…

↗
28
97980−05108
Screw, with washer
Loading…

↗
29
6E5−14324−00
Screw, flat head
Loading…

↗
30
6J8−14959−00
Gasket, drin screw
Loading…

↗
