L250AETO (2005)
CARBURETOR

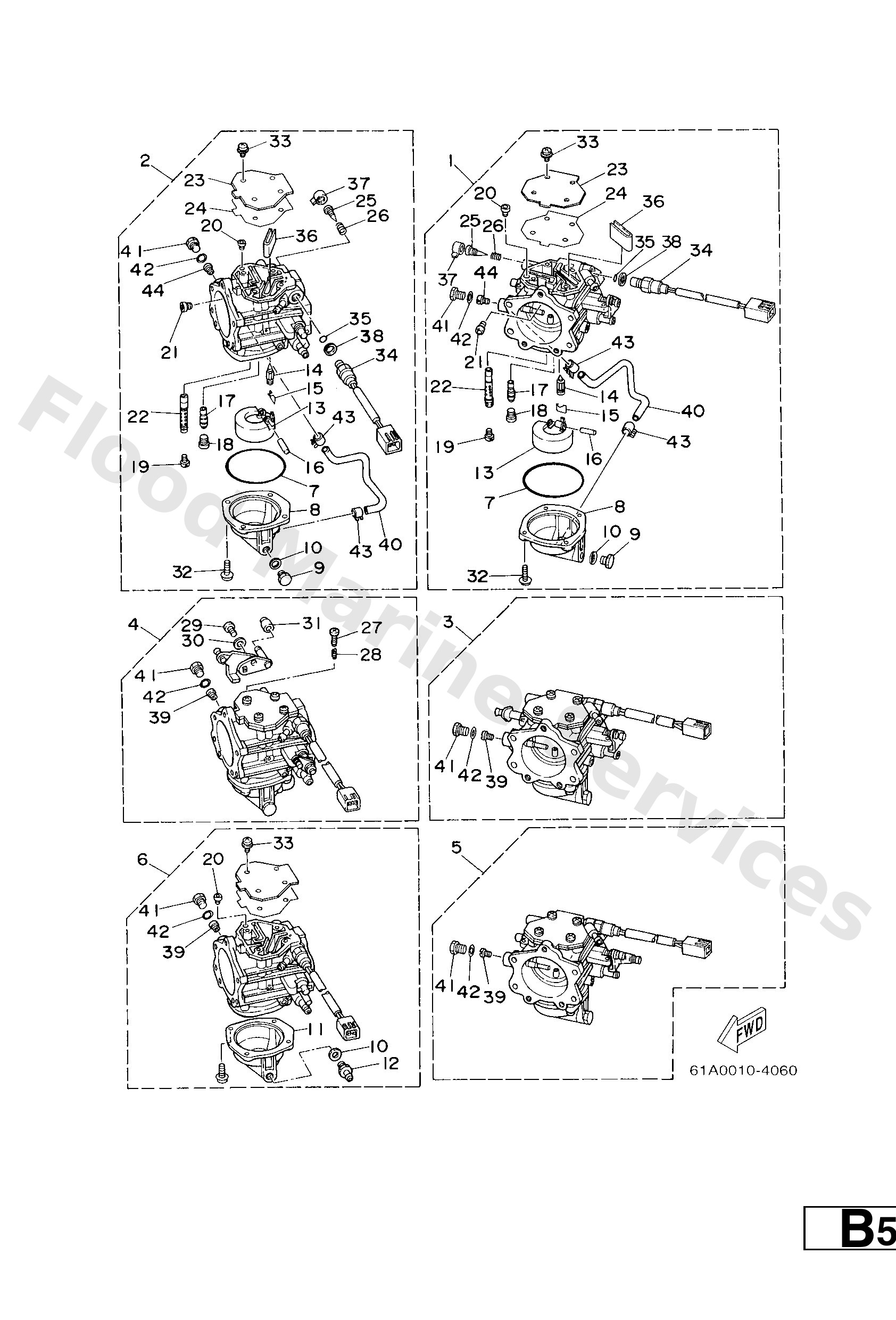

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
61A1410006
Carburetor assembly 1
Loading…
↗
2
61A1430106
Carburetor assembly 2
Loading…
↗
3
61A1410106
Carburetor assembly 3
Loading…
↗
4
61A1430206
Carburetor assembly 2
Loading…
↗
5
61A1410206
Carburetor assembly 5
Loading…
↗
6
61A1430306
Carburetor assembly 6
Loading…
↗
7
61A1438400
Gasket, float chamber
Loading…
↗
8
61A1438111
#1,2,3,4,5
Body, Float Chamber
Loading…
↗
9
61A1438301
#1,2,3,4,5
Screw, drain
Loading…
↗
10
61A1499500
Gasket
Loading…
↗
11
61A1438101
#6
Body, Float Chamber
Loading…
↗
12
61A1438310
#6
Screw, Drain
Loading…
↗
13
61A1438500
Float
Loading…
↗
14
6E51454600
Valve, needle
Loading…
↗
15
6E51415900
Clip
Loading…
↗
16
61A1438600
Pin, Float
Loading…
↗
17
61A1492F50
Jet, air slow (#100)
Loading…
↗
18
61A1439400
Valve, Drain
Loading…
↗
19
62J1492E81
#1,2,4,6
Jet, Main (#162)
Loading…
↗
19
62J1492E80
#3,5
Jet, Main (#160)
Loading…
↗
20
61A1492G52
Jet, Main Air Bleed (#260)
Loading…
↗
21
61A1492H14
Jet,Slowair Bleed (#70)
Loading…
↗
22
61A1492A01
Nozzle, main
Loading…
↗
23
61A1452700
Plate
Loading…
↗
24
61A1495900
Gasket
Loading…
↗
25
6E51432303
Screw, air adjusting
Loading…
↗
26
6E51422300
Spring, air adjusting
Loading…
↗
27
6E51432100
#4
Screw, throttle
Loading…
↗
28
6J81433400
#4
Spring, throttle
Loading…
↗
29
6J81459201
#4
Screw
Loading…
↗
30
9299005600
#4
Washer, plain (646)
Loading…
↗
31
6J81457800
#4
Collar
Loading…
↗
32
9798005116
Screw, pan head
Loading…
↗
33
9798005108
Screw, with washer
Loading…
↗
34
61A8612000
Solenoid valve assembly
Loading…
↗
35
61A1456100
O-ring
Loading…
↗
36
61A1416300
Spacer
Loading…
↗
37
61A1411800
Cap
Loading…
↗
38
61A1419800
Gasket
Loading…
↗
39
61A1492E5H
#3,4,5,6
Jet, Main (#115)
Loading…
↗
40
61A1429800
Pipe
Loading…
↗
43
9046511M10
Clamp
Loading…
↗
44
61A1492E5C
#1,2
Jet ,Main (#105)
Loading…
↗
