E115AWH (2003)
CARBURETOR 1

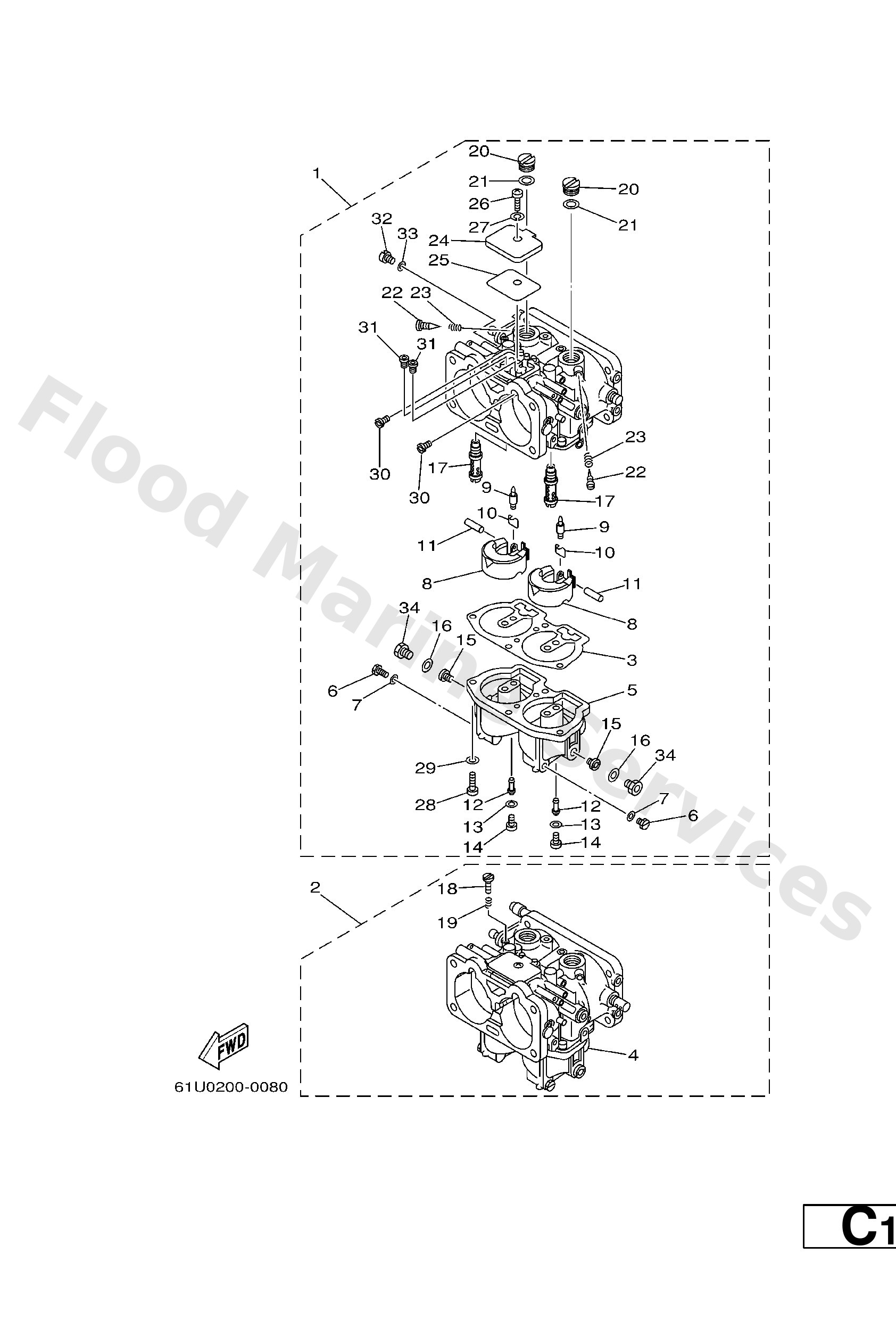

Diagram: CARBURETOR 1
Parts List
Reference
Description
Price
1
61U−14301−M1
Carburetor assembly 1
Loading…
↗
2
61U−14302−M1
Carburetor assembly 2
Loading…
↗
3
6E5−14384−04
Gasket, float chamber
Loading…
↗
4
61U−14381−00
#2
Body, float chamber
Loading…
↗
5
61U−14381−M0
#1
Body, float chamber
Loading…
↗
6
6E5−14383−01
Screw, drain
Loading…
↗
7
6J8−14959−00
Gasket, drin screw
Loading…
↗
8
6E5−14385−02
Float
Loading…
↗
9
6E5−14546−00
Valve, needle
Loading…
↗
10
6E5−14159−00
Clip
Loading…
↗
11
6E5−14386−02
Pin, float
Loading…
↗
12
61U−1492F−39
Jet, air slow
Loading…
↗
13
61U−14959−00
Gasket
Loading…
↗
14
61U−14394−00
Valve, drain
Loading…
↗
15
61A−1492E−87
Jet, main (#174)
Loading…
↗
16
6E5−14398−01
Gasket
Loading…
↗
17
6E5−1492A−00
Nozzle, main
Loading…
↗
18
6E5−14321−00
#2
Screw, throttle
Loading…
↗
19
6J8−14334−00
#2
Spring, throttle
Loading…
↗
20
6E5−14328−01
Plug
Loading…
↗
21
6E5−14979−00
Gasket
Loading…
↗
22
6E5−14323−03
Screw, air adjusting
Loading…
↗
23
6E5−14223−00
Spring, air adjusting
Loading…
↗
24
6E5−14527−01
Plate
Loading…
↗
25
6E5−14959−01
Gasket
Loading…
↗
26
97880−05008
Screw, with washer
Loading…
↗
27
92900−05100
Ybs67-5 washer, spring
Loading…
↗
28
97880−05016
Screw, pan head(6b0)
Loading…
↗
30
61A−1492H−12
Jet, slow air (#60)
Loading…
↗
31
61A−1492G−54
Jet, main air (#270)
Loading…
↗
32
6E5−14324−00
Screw, flat head
Loading…
↗
34
61A−14383−01
Screw, drain
Loading…
↗
