F100BET (2003)
CARBURETOR 1

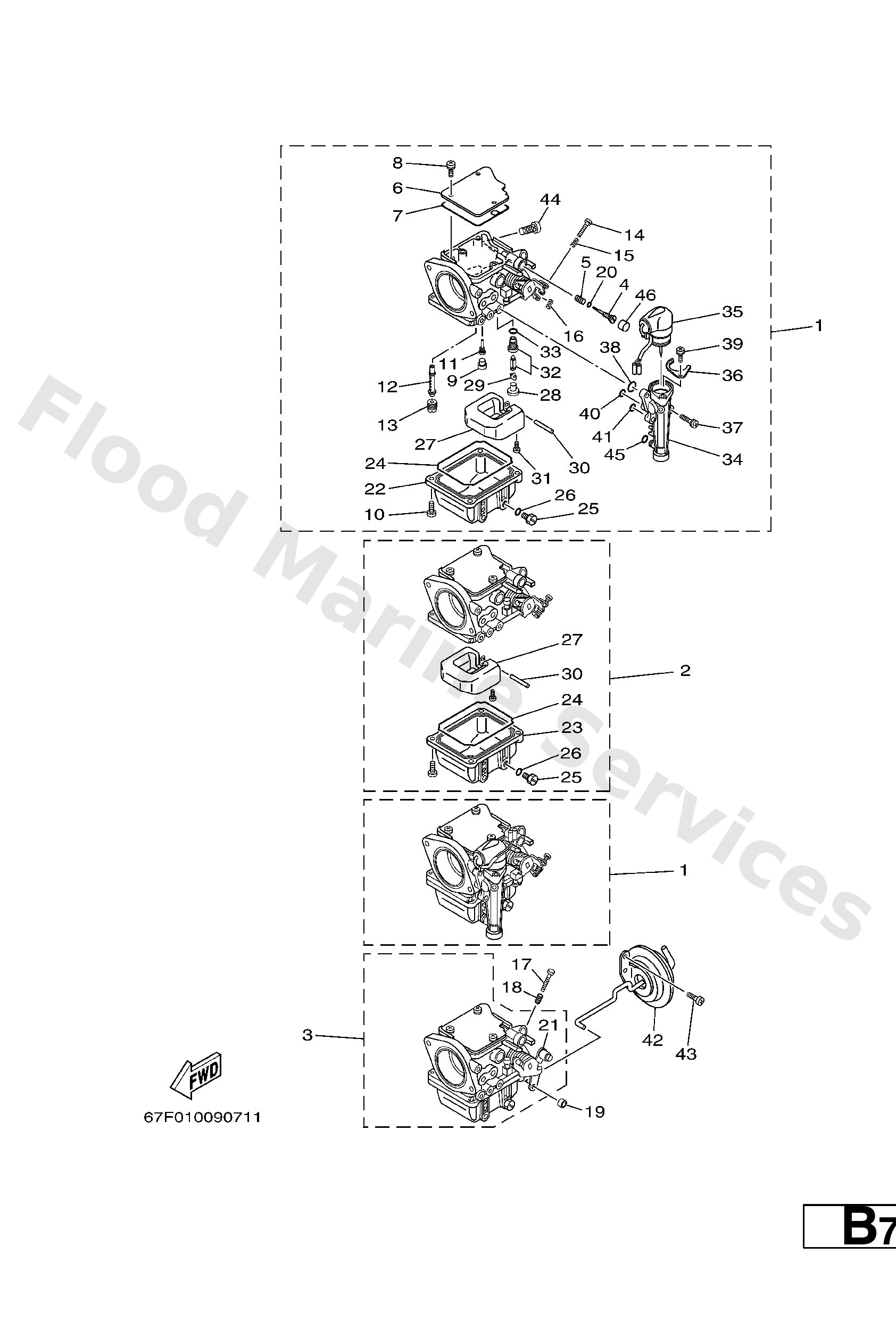

Diagram: CARBURETOR 1
Parts List
Reference
Description
Price
1
60C−14901−10
#1,3−FOR EPA
Carburetor assembly 1
Loading…
↗
1
60C−14901−00
#1,3
Carburetor assembly 1
Loading…
↗
2
60C−14902−10
#2−FOR EPA
Carburetor assembly 2
Loading…
↗
2
60C−14902−00
#2
Carburetor assembly 2
Loading…
↗
3
60C−14904−00
#4
Carburetor assembly 4
Loading…
↗
3
60C−14904−10
#4−FOR EPA
Carburetor assembly 4
Loading…
↗
4
67F−14923−00
Screw, pilot
Loading…
↗
5
697−14555−00
Spring
Loading…
↗
6
67F−14146−00
Plate
Loading…
↗
7
67F−14147−00
Gasket
Loading…
↗
8
97803−04010
Screw, pan head (e56)
Loading…
↗
9
676−14966−00
Rubber cap
Loading…
↗
10
97980−04114
Screw, pan head(ga5)
Loading…
↗
11
67F−14948−04
Jet (#42)
Loading…
↗
12
67F−14947−00
Jet, needle
Loading…
↗
13
67F−14943−83
Jet, main (#128)
Loading…
↗
14
67F−14567−00
#1,2,3
Screw
Loading…
↗
15
67F−14555−00
#1,2,3
Spring
Loading…
↗
16
67F−14556−00
#1,2,3
Spring
Loading…
↗
17
63V−14523−00
#4
Screw, stop
Loading…
↗
18
90501−10326
#4
Spring coil(663)(carb)
Loading…
↗
19
67F−14998−00
#4
Bush
Loading…
↗
20
67F−14397−00
O-ring
Loading…
↗
21
6H2−14578−00
#4
Collar
Loading…
↗
22
67F−14980−00
#1,3
Body, float chamber
Loading…
↗
23
67F−14980−10
#2,4
Body, float chamber
Loading…
↗
24
67F−14984−00
Gasket, float chamber
Loading…
↗
25
6H3−14992−00
Screw, drain
Loading…
↗
26
93210−04230
O-ring (371)
Loading…
↗
27
6H4−14985−01
Float
Loading…
↗
28
676−14186−00
Pin, valve
Loading…
↗
29
663−14159−00
Clip
Loading…
↗
30
6H4−14548−00
Pin, float arm
Loading…
↗
31
98580−04008
Screw, pan head (713)
Loading…
↗
32
60C−14590−01
Needle valve assembly
Loading…
↗
33
93210−04228
O-ring (371)
Loading…
↗
34
67F−14378−00
#1,3
Body, starter
Loading…
↗
35
67F−14380−01
#1,3
Prime starter assembly
Loading…
↗
36
67F−14178−00
#1,3
Plate, starter lever
Loading…
↗
37
67F−14592−00
#1,3
Screw
Loading…
↗
38
67F−14398−00
#1,3
O-ring
Loading…
↗
39
67F−14565−00
#1,3
Screw
Loading…
↗
40
67F−14398−10
#1,3
O-ring
Loading…
↗
41
67F−14398−20
#1,3
O-ring
Loading…
↗
42
67F−14369−00
#4
Diaphragm assembly 2
Loading…
↗
43
67F−14325−00
#4
Screw, pan head
Loading…
↗
44
67F−14371−01
Element, filter
Loading…
↗
45
67F−14398−30
#1,3
O-ring
Loading…
↗
46
67F−14355−00
FOR EPA
Plug
Loading…
↗
