F100BET (2006)
CARBURETOR 1

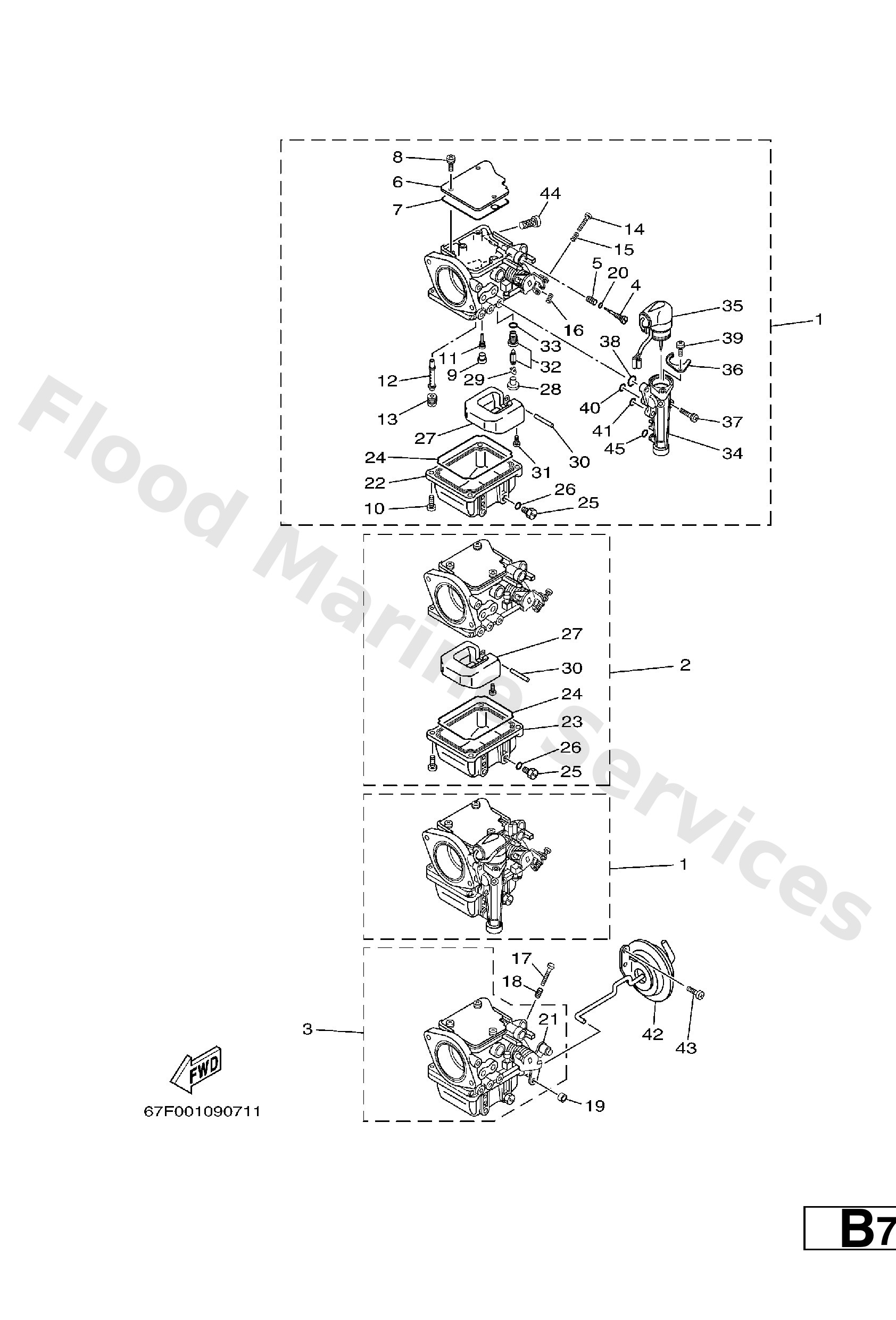

Diagram: CARBURETOR 1
Parts List
Reference
Description
Price
1
60C1490100
#1,3
Carburetor assembly 1
Loading…
↗
2
60C1490200
#2
Carburetor assembly 2
Loading…
↗
3
60C1490400
#4
Carburetor assembly 4
Loading…
↗
4
67F1492300
Screw, pilot
Loading…
↗
5
6971455500
Spring
Loading…
↗
6
67F1414600
Plate
Loading…
↗
7
67F1414700
Gasket
Loading…
↗
8
9780304010
Screw, pan head (e56)
Loading…
↗
9
6761496600
Rubber cap
Loading…
↗
10
9798004114
Screw, pan head(ga5)
Loading…
↗
11
67F1494804
Jet (#42)
Loading…
↗
12
67F1494700
Jet, needle
Loading…
↗
13
67F1494383
Jet, main (#128)
Loading…
↗
14
67F1456700
#1,2,3
Screw
Loading…
↗
15
67F1455500
#1,2,3
Spring
Loading…
↗
16
67F1455600
#1,2,3
Spring
Loading…
↗
17
63V1452300
#4
Screw, stop
Loading…
↗
18
9050110326
#4
Spring coil(663)(carb)
Loading…
↗
19
67F1499800
#4
Bush
Loading…
↗
20
67F1439700
O-ring
Loading…
↗
21
6H21457800
#4
Collar
Loading…
↗
22
67F1498000
#1,3
Body, float chamber
Loading…
↗
23
67F1498010
#2,4
Body, float chamber
Loading…
↗
24
67F1498400
Gasket, float chamber
Loading…
↗
25
6H31499200
Screw, drain
Loading…
↗
26
9321004230
O-ring (371)
Loading…
↗
27
6H41498501
Float
Loading…
↗
28
6761418600
Pin, valve
Loading…
↗
29
67F1415900
Clip
Loading…
↗
30
6H41454800
Pin, float arm
Loading…
↗
31
9858004008
Screw, pan head (713)
Loading…
↗
32
60C1459002
Needle valve assembly
Loading…
↗
33
9321004228
O-ring (371)
Loading…
↗
34
67F1437800
#1,3
Body, starter
Loading…
↗
35
67F1438001
#1,3
Prime starter assembly
Loading…
↗
36
67F1417800
#1,3
Plate, starter lever
Loading…
↗
37
67F1459200
#1,3
Screw
Loading…
↗
38
67F1439800
#1,3
O-ring
Loading…
↗
39
67F1456500
#1,3
Screw
Loading…
↗
40
67F1439810
#1,3
O-ring
Loading…
↗
41
67F1439820
#1,3
O-ring
Loading…
↗
42
67F1436900
#4
Diaphragm assembly 2
Loading…
↗
43
67F1432500
#4
Screw, pan head
Loading…
↗
44
67F1437101
Element, filter
Loading…
↗
45
67F1439830
#1,3
O-ring
Loading…
↗
