F80AET (2002)
CARBURETOR 1

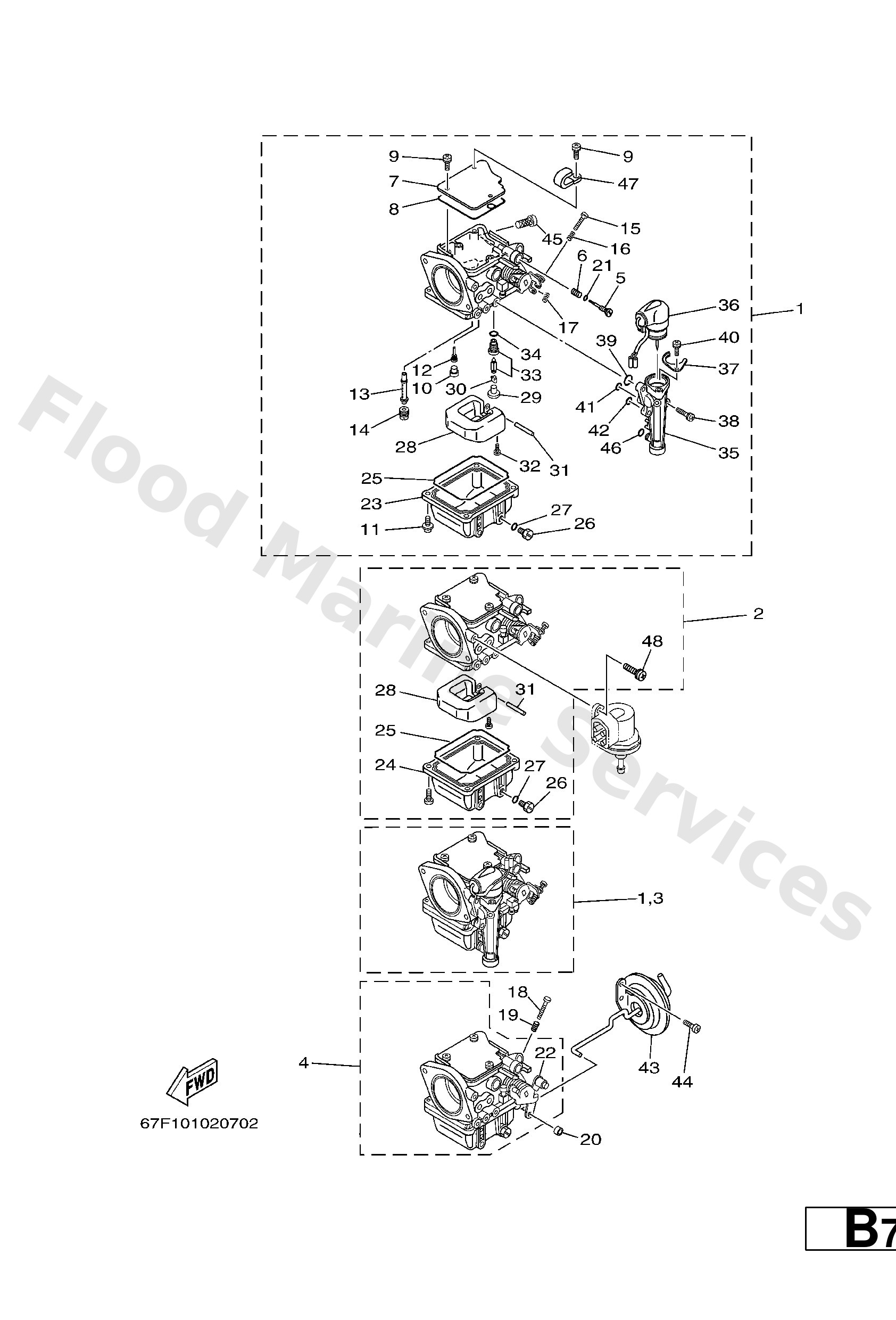

Diagram: CARBURETOR 1
Parts List
Reference
Description
Price
1
67G1490130
FOR STD–#1,3
Carburetor assembly 1
Loading…
↗
1
67F1490120
#1
Carburetor assembly 1
Loading…
↗
1
67G1490150
FOR SAV–#1,3
Carburetor assembly 1
Loading…
↗
2
67F1490220
#2
Carburetor assembly 2
Loading…
↗
2
67G1490230
FOR STD–#2
Carburetor assembly 2
Loading…
↗
2
67G1490250
FOR SAV–#2
Carburetor assembly 2
Loading…
↗
3
67F1490320
#3
Carburetor assembly 3
Loading…
↗
4
67F1490420
#4
Carburetor assembly 4
Loading…
↗
4
67G1490430
FOR STD–#4
Carburetor assembly 4
Loading…
↗
4
67G1490450
FOR SAV–#4
Carburetor assembly 4
Loading…
↗
5
67F1492300
FOR STD
Screw, pilot
Loading…
↗
5
67F1492310
FOR SAV
Screw, Pilot
Loading…
↗
6
6971455500
Spring
Loading…
↗
7
67F1414600
Plate
Loading…
↗
8
67F1414700
Gasket
Loading…
↗
9
9780304010
Screw, pan head (e56)
Loading…
↗
10
6761496600
Rubber cap
Loading…
↗
11
9798004114
Screw, pan head(ga5)
Loading…
↗
12
67F1494F04
Jet (#42)
Loading…
↗
12
67G1494805
Jet (#45)
Loading…
↗
13
67F1494710
Jet, Needle
Loading…
↗
13
67G1494700
Jet, needle
Loading…
↗
14
67F1494332
Jet, main (#125)
Loading…
↗
14
67G1494380
FOR STD
Jet, main (#112)
Loading…
↗
14
67G1494329
FOR SAV
Jet, Main (#110)
Loading…
↗
15
67F1456700
#1,2,3
Screw
Loading…
↗
16
67F1455500
#1,2,3
Spring
Loading…
↗
17
67F1455600
#1,2,3
Spring
Loading…
↗
18
63V1452300
#4
Screw, stop
Loading…
↗
19
9050110326
#4
Spring coil(663)(carb)
Loading…
↗
20
67F1499800
#4
Bush
Loading…
↗
21
67F1439700
O-ring
Loading…
↗
22
6H21457800
#4
Collar
Loading…
↗
23
67F1498000
#1,3
Body, float chamber
Loading…
↗
24
67F1498010
#2,4
Body, float chamber
Loading…
↗
25
67F1498400
Gasket, float chamber
Loading…
↗
26
6H31499200
Screw, drain
Loading…
↗
27
9321004230
O-ring (371)
Loading…
↗
28
6H41498501
Float
Loading…
↗
29
6761418600
Pin, valve
Loading…
↗
30
6631415900
Clip
Loading…
↗
31
6H41454800
Pin, float arm
Loading…
↗
32
9858004008
Screw, pan head (713)
Loading…
↗
33
60C1459000
Needle valve assembly
Loading…
↗
34
9321004228
O-ring (371)
Loading…
↗
35
67F1437800
#1,3
Body, starter
Loading…
↗
36
67F1438001
#1,3
Prime starter assembly
Loading…
↗
37
67F1417800
#1,3
Plate, starter lever
Loading…
↗
38
67F1459200
#1,3
Screw
Loading…
↗
39
67F1439800
#1,3
O-ring
Loading…
↗
40
67F1456500
#1,3
Screw
Loading…
↗
41
67F1439810
#1,3
O-ring
Loading…
↗
42
67F1439820
#1,3
O-ring
Loading…
↗
43
67F1436900
#4
Diaphragm assembly 2
Loading…
↗
44
67F1432500
#4
Screw, pan head
Loading…
↗
45
67F1437101
Element, filter
Loading…
↗
46
67F1439830
#1,3
O-ring
Loading…
↗
47
67F1425500
#1
Plate
Loading…
↗
