60FET (2003)
CARBURETOR 2

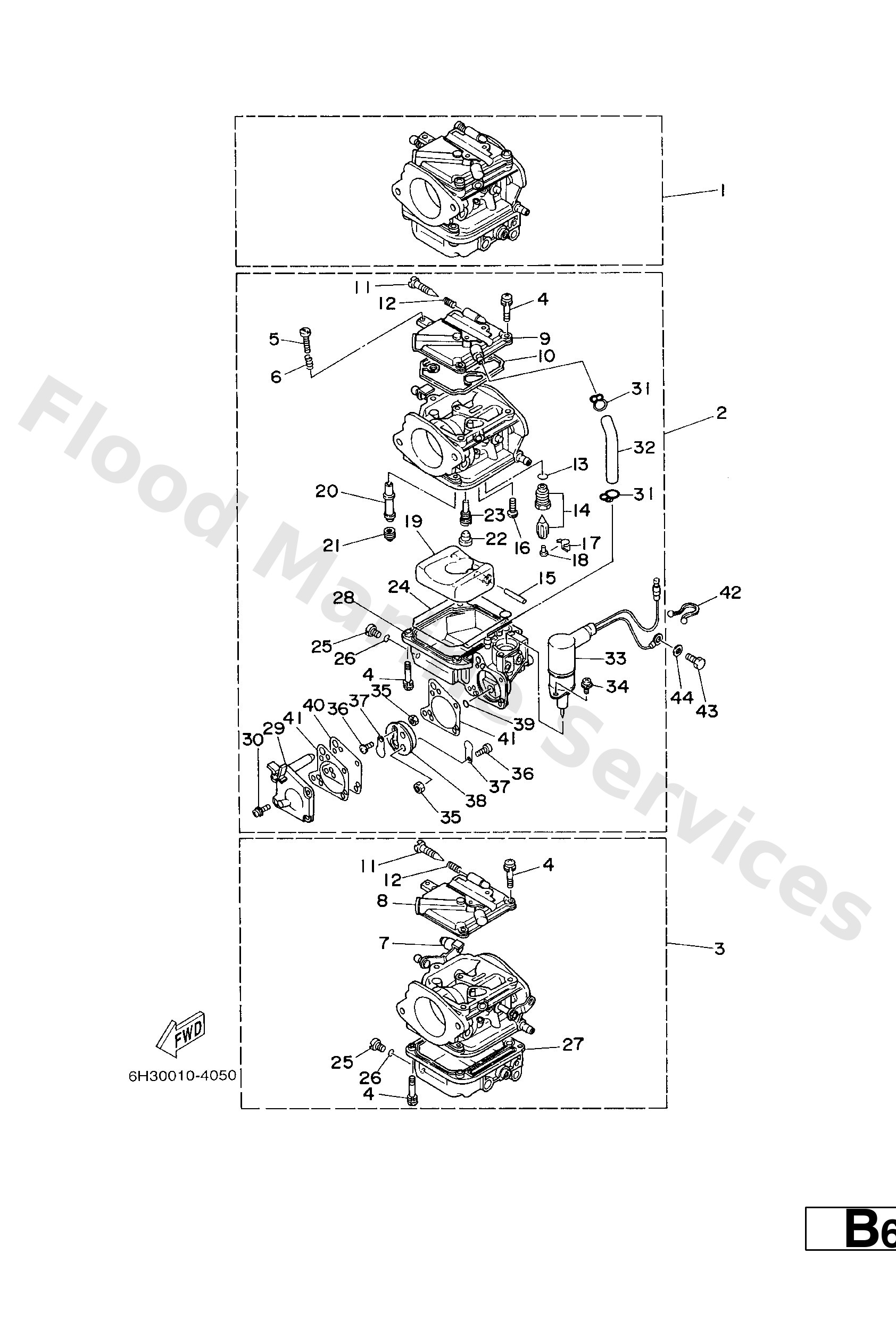

Diagram: CARBURETOR 2
Parts List
Reference
Description
Price
1
6H3−14301−0A
Carburetor assembly 1
Loading…
↗
1
6H2−14301−0A
Carburetor assembly 1
Loading…
↗
2
6H3−14302−0A
Carburetor assembly 2
Loading…
↗
2
6H2−14302−0A
Carburetor assembly 2
Loading…
↗
3
6H2−14303−0A
Carburetor assembly 3
Loading…
↗
3
6H3−14303−0A
Carburetor assembly 3
Loading…
↗
4
97980−04114
Screw, pan head(ga5)
Loading…
↗
5
63V−14523−00
#2
Screw, stop
Loading…
↗
6
90501−10326
#2
Spring coil(663)(carb)
Loading…
↗
7
6H2−14578−00
#3
Collar
Loading…
↗
8
6H4−14146−00
#1,3
Plate
Loading…
↗
9
6H3−14146−10
#2
Plate
Loading…
↗
10
6H4−14147−00
O-ring
Loading…
↗
11
692−14923−00
Screw, adjusting
Loading…
↗
12
697−14555−00
Spring
Loading…
↗
13
93210−04228
O-ring (371)
Loading…
↗
14
6H3−14590−01
Needle valve assembly
Loading…
↗
15
6H4−14548−00
Pin, float arm
Loading…
↗
16
98580−04008
Screw, pan head (713)
Loading…
↗
17
663−14159−00
Clip
Loading…
↗
18
676−14186−00
Pin, valve
Loading…
↗
19
6H4−14985−01
Float
Loading…
↗
20
6H2−14947−71
Jet, needle
Loading…
↗
20
6H3−14947−71
Jet, needle
Loading…
↗
21
6H3−14943−37
Jet, main (#150)
Loading…
↗
21
6H3−14943−36
#3
Jet, main (#145)
Loading…
↗
21
6H3−14943−35
#1,2
Jet, main (#140)
Loading…
↗
22
676−14966−00
Rubber cap
Loading…
↗
23
6H3−14948−13
Jet (#65)
Loading…
↗
23
6H3−14948−17
Jet (#75)
Loading…
↗
24
6H4−14984−00
Gasket, float chamber
Loading…
↗
25
6H3−14992−00
Screw, drain
Loading…
↗
26
93210−04230
O-ring (371)
Loading…
↗
27
6H4−14980−00
#1,3
Body, float chamber
Loading…
↗
28
6H3−14980−10
#2
Body, float chamber
Loading…
↗
29
6H3−24452−10
#2
Cover
Loading…
↗
30
6H4−14567−00
#2
Screw
Loading…
↗
31
6H3−14137−00
#2
Clip
Loading…
↗
32
6H3−14349−00
#2
Pipe
Loading…
↗
33
6H3−14380−00
#2
Prime starter assembly
Loading…
↗
34
97803−04010
#2
Screw, pan head (e56)
Loading…
↗
35
95380−03600
#2
Nut (6g8)
Loading…
↗
36
98980−03006
#2
Screw, bind(6g1)
Loading…
↗
37
6L5−24421−00
#2
Valve, check
Loading…
↗
38
6H4−24413−00
#2
Body 2
Loading…
↗
39
6H4−24486−00
#2
O-ring
Loading…
↗
40
6H3−24411−10
#2
Diaphragm
Loading…
↗
41
6H3−24434−10
#2
Gasket, body
Loading…
↗
42
90465−18147
Clamp
Loading…
↗
43
97013−06012
Bolt(gh1)
Loading…
↗
44
92903−06600
Washer, plain (646)
Loading…
↗
