F100BET (2009)
CARBURETOR 2

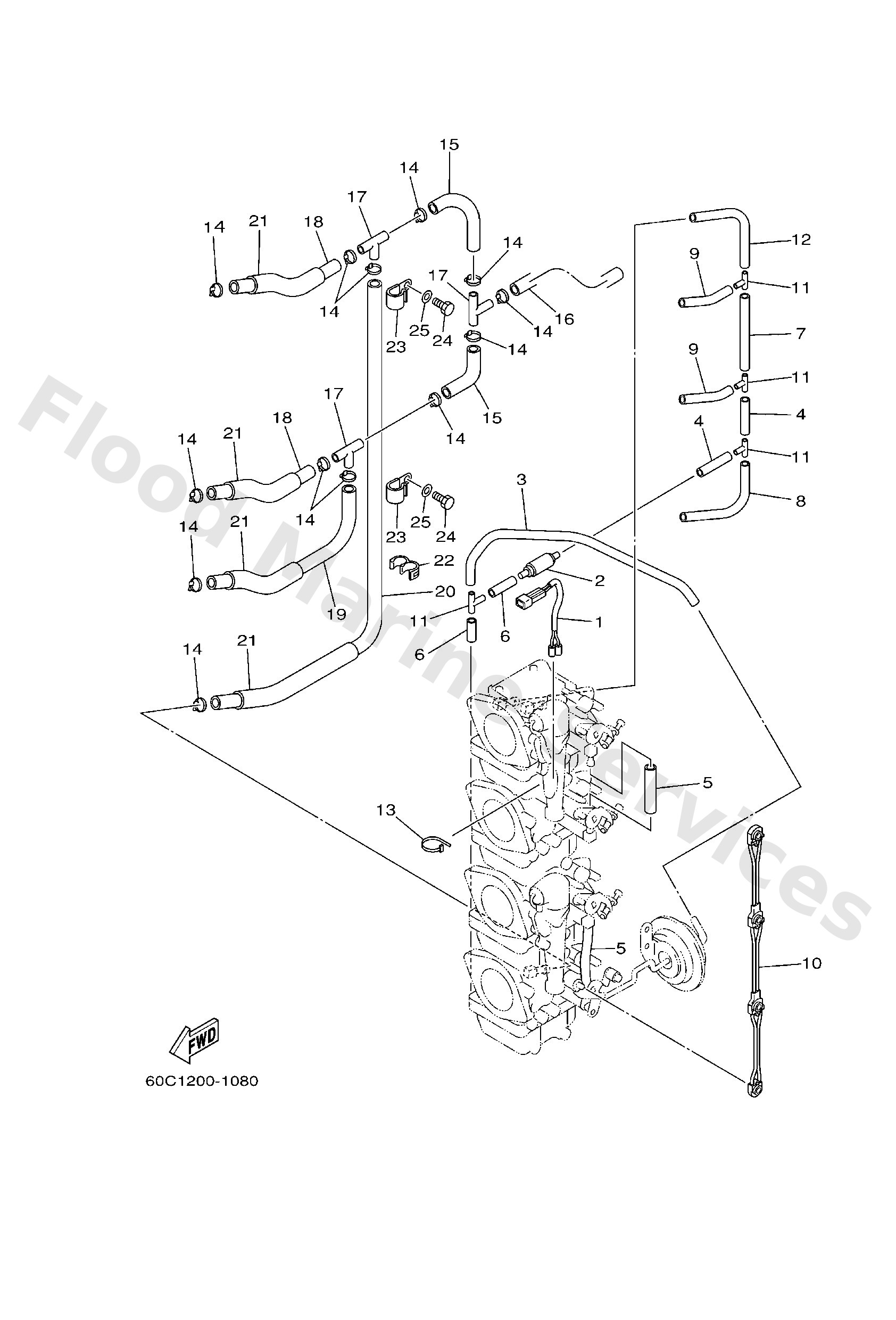

Diagram: CARBURETOR 2
Parts List
Reference
Description
Price
1
67F1412A00
Wire harness assembly
Loading…
↗
2
67F1318300
Valve, check
Loading…
↗
3
67F1434900
Pipe
Loading…
↗
4
67F1434910
Pipe
Loading…
↗
5
67F1434920
Pipe
Loading…
↗
6
67F1434930
Pipe
Loading…
↗
7
67F1434940
Pipe
Loading…
↗
8
67F1434950
Pipe
Loading…
↗
9
67F1434960
Pipe
Loading…
↗
10
67F1458500
Rod, choke
Loading…
↗
11
67F1418900
Connector
Loading…
↗
12
67F1434970
Pipe
Loading…
↗
13
9046511M59
Clamp(63m)
Loading…
↗
14
68F2435600
Clip, pipe 1
Loading…
↗
15
60C1429400
Hose
Loading…
↗
16
60C1429800
Pipe
Loading…
↗
17
6882437800
Pipe, joint
Loading…
↗
18
9044510M16
Hose (l400)
Loading…
↗
19
9044510MG6
Hose (l200)
Loading…
↗
20
9044510MG7
Hose (l350)
Loading…
↗
21
9044516M07
Hose (l80)
Loading…
↗
22
9046410M57
Clamp
Loading…
↗
23
9046508M83
Clamp
Loading…
↗
24
9709506012
Bolt(gh1)
Loading…
↗
25
9299506600
Washer, plain (646)
Loading…
↗
