F100CET (2003)
CARBURETOR 2

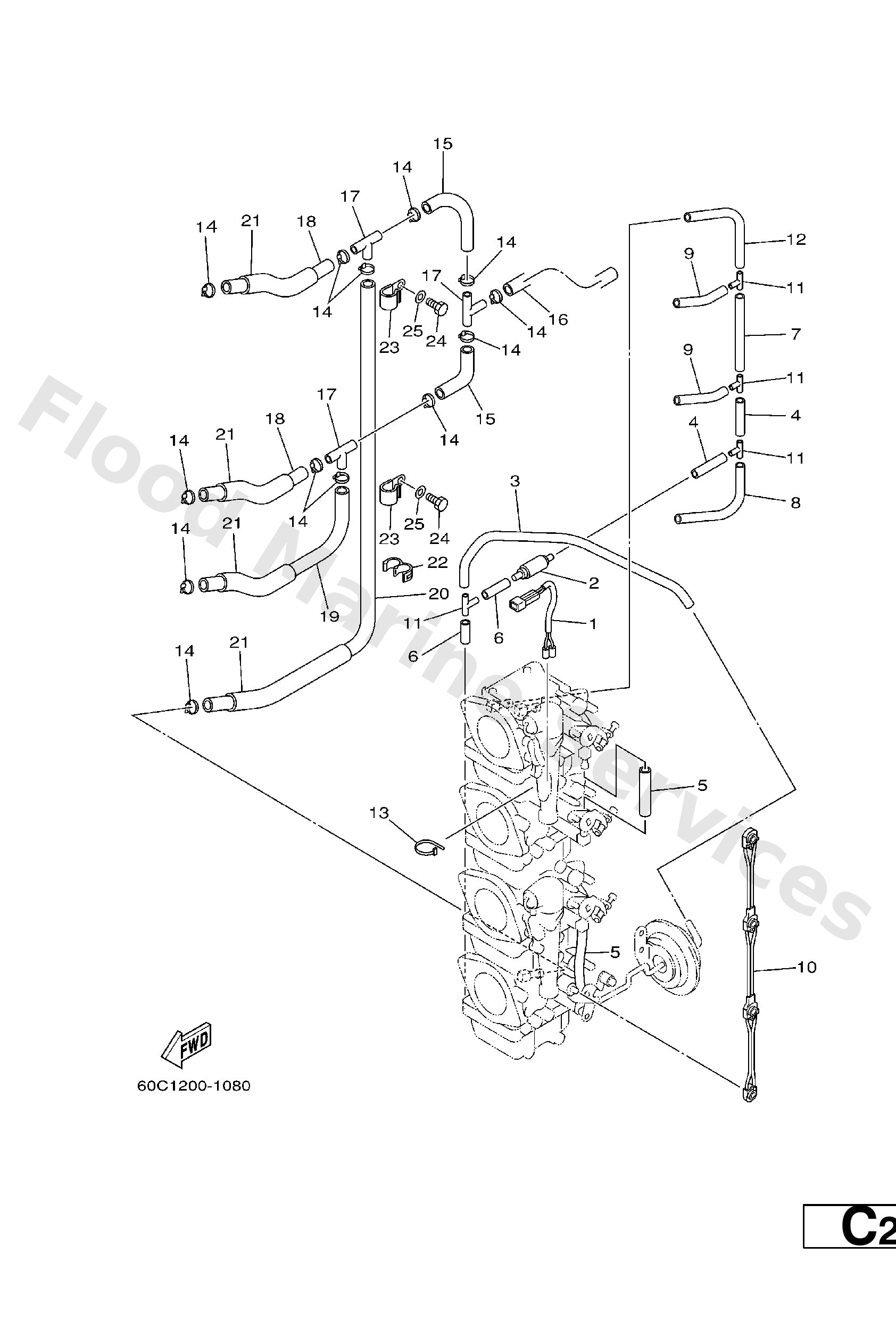

Diagram: CARBURETOR 2
Parts List
Reference
Description
Price
1
67F−1412A−00
Wire harness assembly
Loading…
↗
2
67F−13183−00
Valve, check
Loading…
↗
3
67F−14349−00
Pipe
Loading…
↗
4
67F−14349−10
Pipe
Loading…
↗
5
67F−14349−20
Pipe
Loading…
↗
6
67F−14349−30
Pipe
Loading…
↗
7
67F−14349−40
Pipe
Loading…
↗
8
67F−14349−50
Pipe
Loading…
↗
9
67F−14349−60
Pipe
Loading…
↗
10
67F−14585−00
Rod, choke
Loading…
↗
11
67F−14189−00
Connector
Loading…
↗
12
67F−14349−70
Pipe
Loading…
↗
13
90465−11M59
Clamp(63m)
Loading…
↗
14
68F−24356−00
Clip, pipe 1
Loading…
↗
15
60C−14294−00
Hose
Loading…
↗
16
60C−14298−00
Pipe
Loading…
↗
17
688−24378−00
Pipe, joint
Loading…
↗
18
90445−10M16
Hose (l400)
Loading…
↗
19
90445−10MG6
Hose (l200)
Loading…
↗
20
90445−10MG7
Hose (l350)
Loading…
↗
21
90445−16M07
Hose (l80)
Loading…
↗
22
90464−10M57
Clamp
Loading…
↗
23
90465−08M83
Clamp
Loading…
↗
24
97095−06012
Bolt(gh1)
Loading…
↗
25
92995−06600
Washer, plain (646)
