F6AMH (2008)
CARBURETOR 2

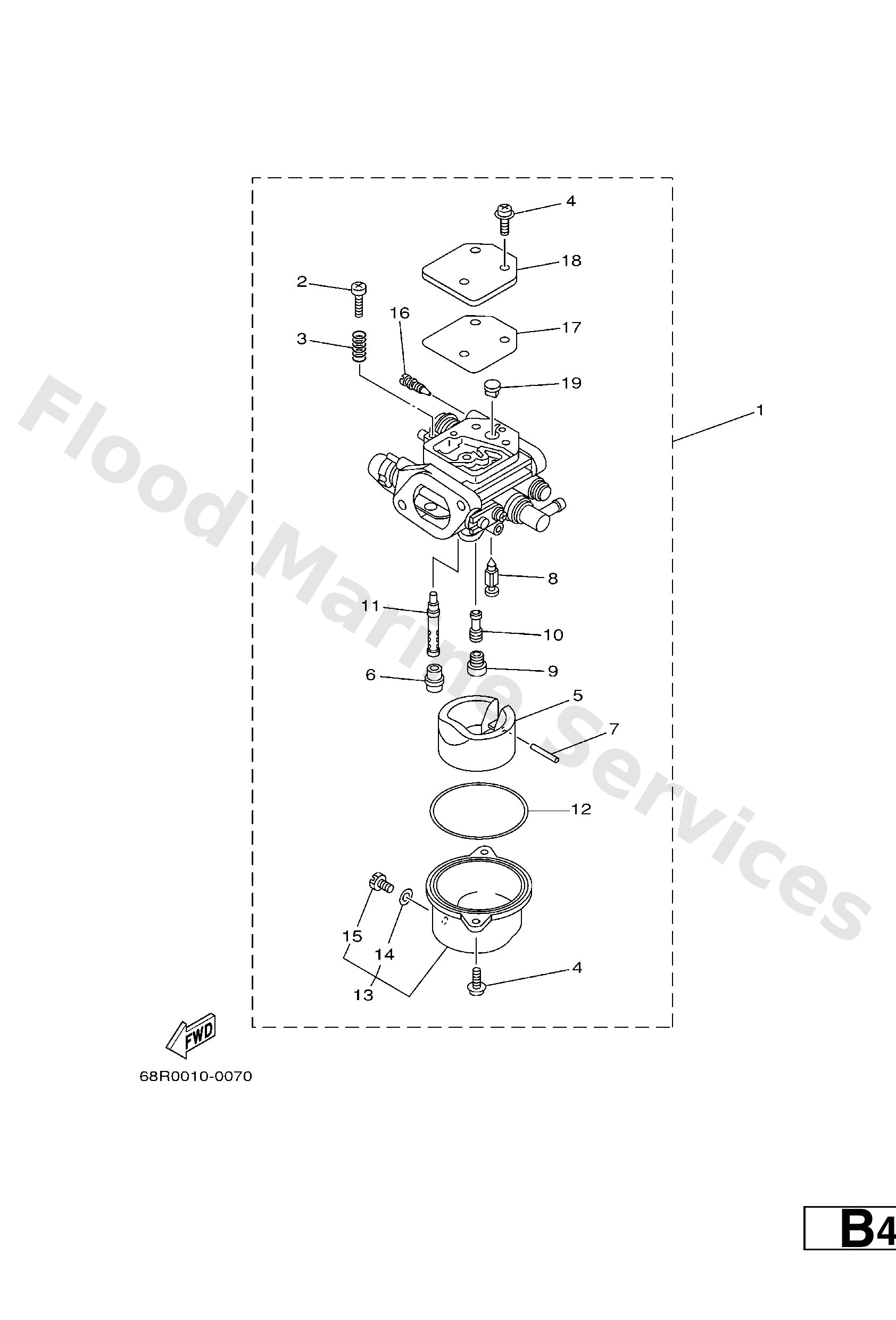

Diagram: CARBURETOR 2
Parts List
Reference
Description
Price
1
68T1430120
Carburetor & accel link 68t20
Loading…
↗
2
6E51432100
Screw, throttle
Loading…
↗
3
6J81433400
Spring, throttle
Loading…
↗
4
9798004112
Screw, pan head (686)
Loading…
↗
5
68T1438500
Float
Loading…
↗
6
67D1496600
Rubber cap
Loading…
↗
7
67D1438600
Pin, float
Loading…
↗
8
68T1454600
Valve, needle
Loading…
↗
9
68T1492E37
Jet, main (#74)
Loading…
↗
10
68T1492F1K
Jet, air slow (#39)
Loading…
↗
11
68T1492A00
Nozzle, main
Loading…
↗
12
67D1498400
Gasket, float chamber
Loading…
↗
13
68T1498100
Body, float chamber
Loading…
↗
14
6J81495900
Gasket, drin screw
Loading…
↗
15
66T1499100
Plug, drain
Loading…
↗
16
68T1432320
Screw, Air Adjusting
Loading…
↗
17
67D1453600
Gasket
Loading…
↗
18
67D1452700
Plate
Loading…
↗
19
68T1412600
Plug
Loading…
↗
