F80AET (2002)
CARBURETOR 3

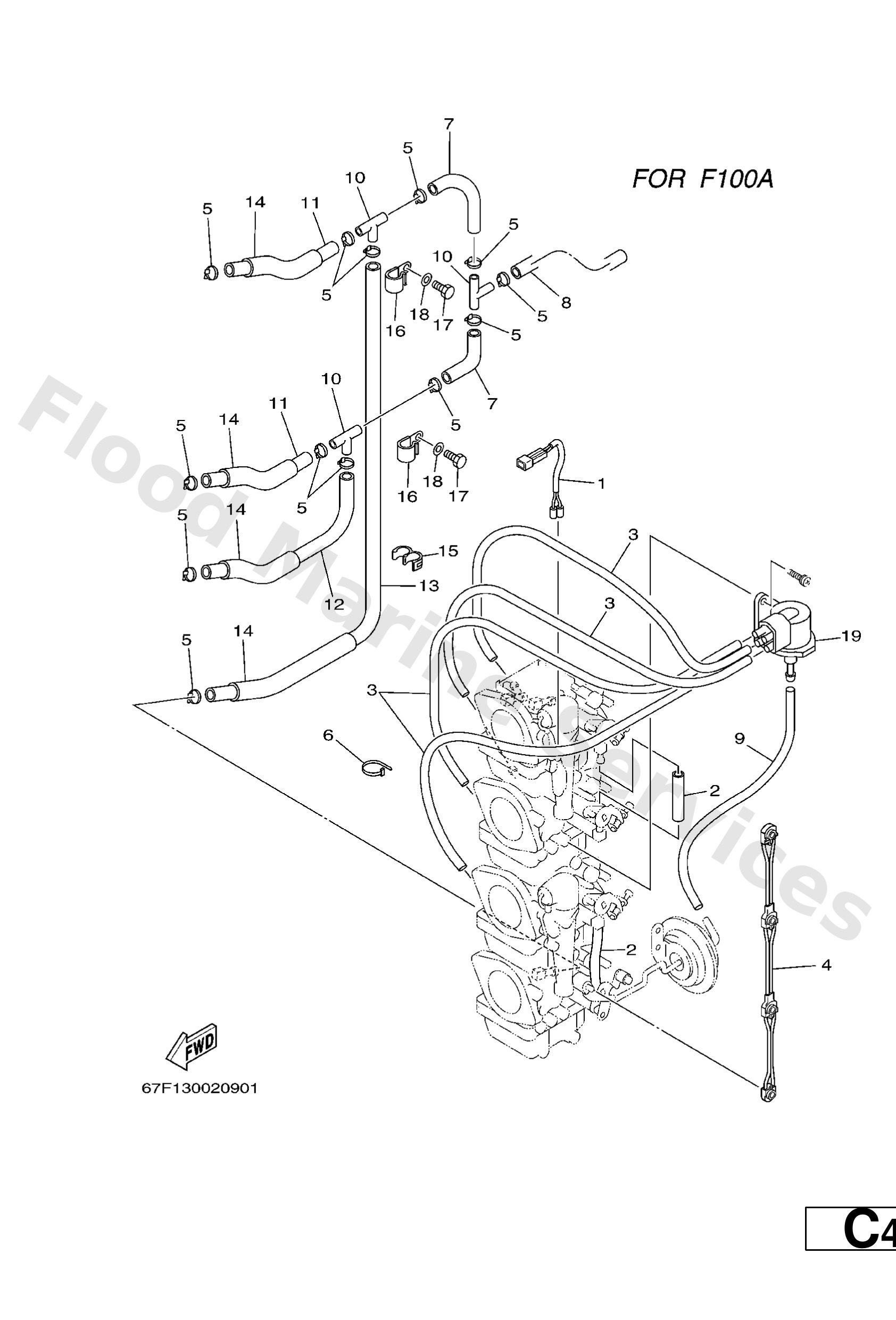

Diagram: CARBURETOR 3
Parts List
Reference
Description
Price
1
67F1412A00
Wire harness assembly
Loading…
↗
2
67F1434920
Pipe
Loading…
↗
3
67F1434900
Pipe
Loading…
↗
4
67F1458500
Rod, choke
Loading…
↗
5
68F2435600
Clip, pipe 1
Loading…
↗
6
9046511M59
Clamp(63m)
Loading…
↗
7
60C1429400
Hose
Loading…
↗
8
60C1429800
Pipe
Loading…
↗
9
67F1434800
Pipe 1
Loading…
↗
10
6882437800
Pipe, joint
Loading…
↗
11
9044510M16
Hose (l400)
Loading…
↗
12
9044510MG6
Hose (l200)
Loading…
↗
13
9044510MG7
Hose (l350)
Loading…
↗
14
9044516M07
Hose (l80)
Loading…
↗
15
9046410M57
Clamp
Loading…
↗
16
9046508M83
Clamp
Loading…
↗
17
9709506012
Bolt(gh1)
Loading…
↗
18
9299506600
Washer, plain (646)
Loading…
↗
19
67F1486000
Check Valve Body assembly
Loading…
↗
