F80AET (2003)
CARBURETOR 3

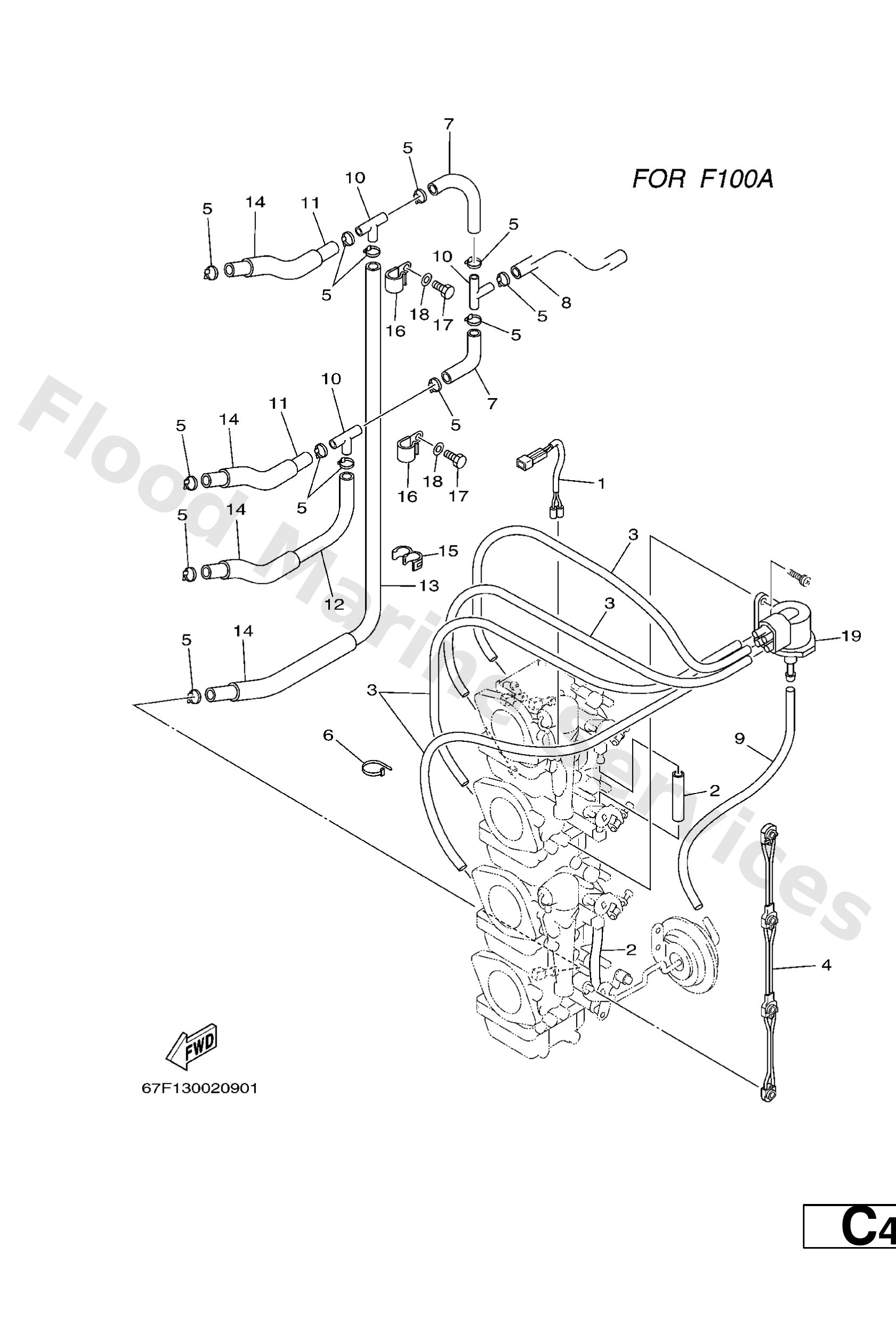

Diagram: CARBURETOR 3
Parts List
Reference
Description
Price
1
67F−1412A−00
Wire harness assembly
Loading…
↗
2
67F−14349−20
Pipe
Loading…
↗
3
67F−14349−00
Pipe
Loading…
↗
4
67F−14585−00
Rod, choke
Loading…
↗
5
68F−24356−00
Clip, pipe 1
Loading…
↗
6
90465−11M59
Clamp(63m)
Loading…
↗
7
60C−14294−00
Hose
Loading…
↗
8
60C−14298−00
Pipe
Loading…
↗
9
67F−14348−00
Pipe 1
Loading…
↗
10
688−24378−00
Pipe, joint
Loading…
↗
11
90445−10M16
Hose (l400)
Loading…
↗
12
90445−10MG6
Hose (l200)
Loading…
↗
13
90445−10MG7
Hose (l350)
Loading…
↗
14
90445−16M07
Hose (l80)
Loading…
↗
15
90464−10M57
Clamp
Loading…
↗
16
90465−08M83
Clamp
Loading…
↗
17
97095−06012
Bolt(gh1)
Loading…
↗
18
92995−06600
Washer, plain (646)
Loading…
↗
19
67F1486000
Check Valve Body assembly
Loading…
↗
