RIGGING - METER (2021)
CL7 DISPLAY 2

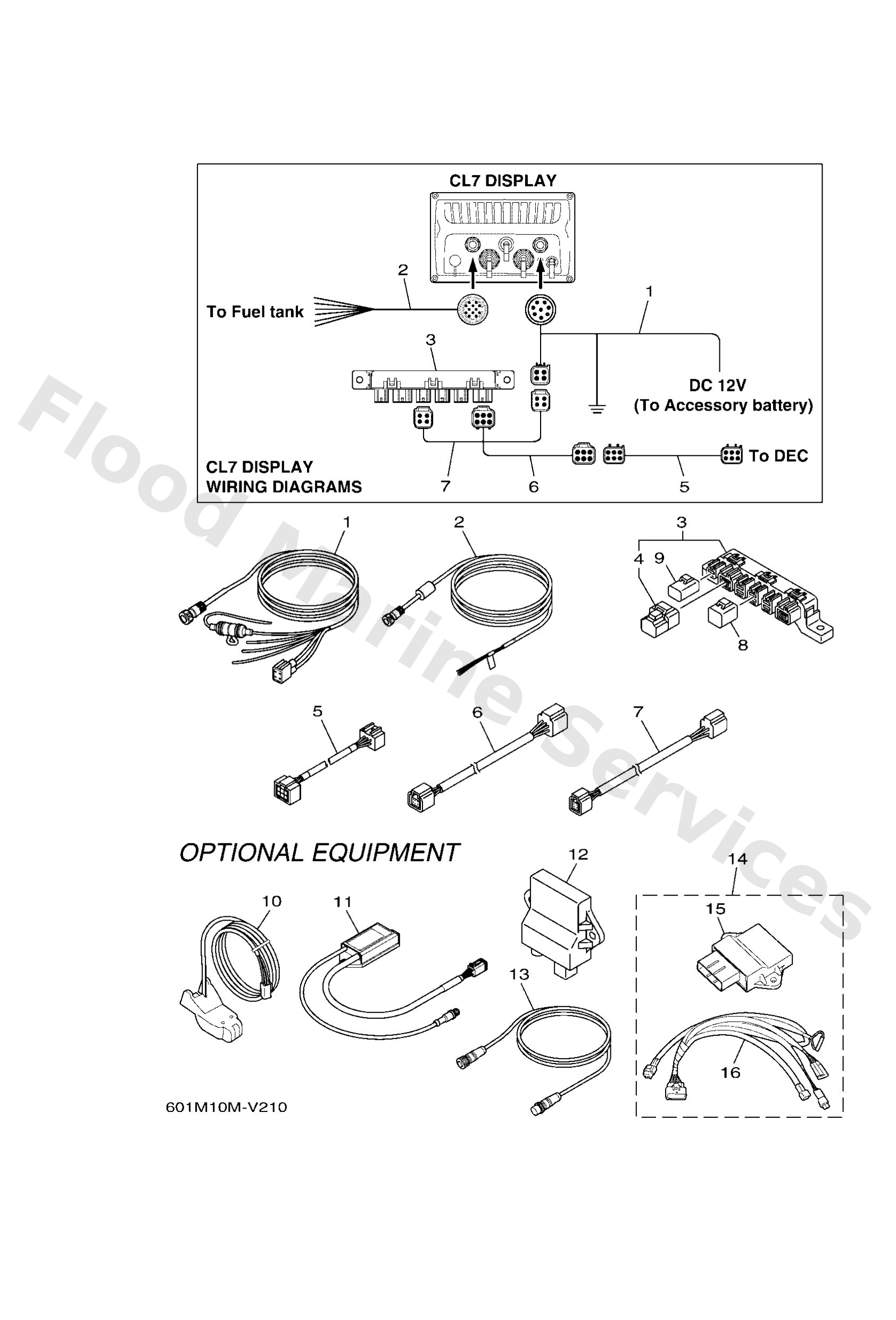

Diagram: CL7 DISPLAY 2
Parts List
Reference
Description
Price
1
6YD8355300
Wire, lead
Loading…
↗
2
6YD8356N00
Wire, lead
Loading…
↗
3
6Y88192001
Multi-hub
Loading…
↗
4
6Y88537101
End of line resister
Loading…
↗
5
6Y98355300
Wire, lead
Loading…
↗
6
6Y88255301
UR
Main bus wire 0.3m-1ft
Loading…
↗
6
6Y88255311
UR
Main bus wire 4.6m (15ft)
Loading…
↗
6
6Y88255321
UR
Main bus wire 6.1m (20ft)
Loading…
↗
6
6Y88255331
UR
Main bus wire 7.6m (25ft)
Loading…
↗
6
6Y88255341
UR
Main bus wire 9.1m (30ft)
Loading…
↗
6
6Y88255350
UR
Main bus wire 3.0m-10ft
Loading…
↗
7
6Y88252121
UR
Pigtail bus wire 0.9m-3ft
Loading…
↗
7
6Y88252151
UR
Pigtail bus wire 3.6m-12ft
Loading…
↗
7
6Y88252141
UR
9ft pigtail bus
Loading…
↗
7
6Y88252131
UR
Pigtail bus wire 1.8m-6ft
Loading…
↗
7
6Y88252111
UR
Pigtail bus wire 0.6m-2ft
Loading…
↗
7
6Y88252101
UR
1ft pigtail bus
Loading…
↗
8
6Y88258211
White cap 1 (4pin)
Loading…
↗
9
6Y88258201
Red cap 1 (2pin)
Loading…
↗
10
6Y98368800
Sensor assembly
Loading…
↗
11
9999904422
GATEWAY
Interface Unit Set
Loading…
↗
12
6YG8A2D011
FOR OTHER COMPATIBLE MFD
Gateway
Loading…
↗
13
6YG8252100
Wire, lead
Loading…
↗
14
6YHW8A2D00
ANALOGE GAUGE
-
Loading…
↗
15
6YH8A2D000
Analog gauge interface
Loading…
↗
16
6YH8252100
Agi harness
Loading…
↗
