Yamaha Outboard Parts - COMMAND LINK INSTRUMENTS - Rigging Parts (2007) | Flood Marine

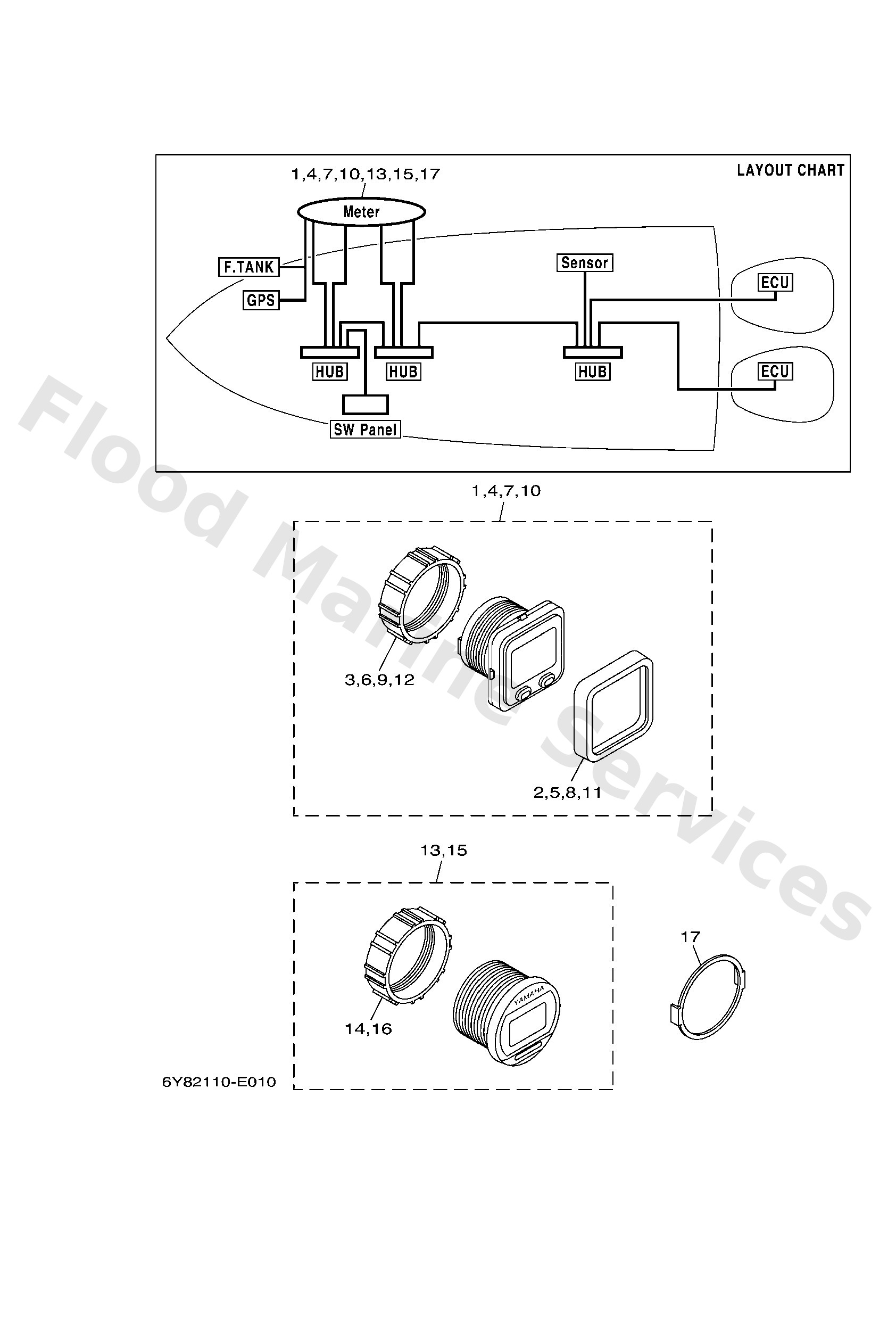

Diagram: COMMAND LINK INSTRUMENTS

Diagram

Parts List

Reference
Description
Price


1
6Y88350T01
Tachometer, sq
Loading…

↗
2
6Y88336300
Bezel, square
Loading…

↗
3
6Y88438300
Nut, ring
Loading…

↗
4
6Y88350S01
Speedometer, Sq
Loading…

↗
7
6Y88350F01 FUEL MANAGEMENT
Fl mgt meter, sq
Loading…

↗
10
6Y88350001 SPEED & FUEL
S&fm meter, sq
Loading…

↗
13
6Y88350T11
Tachometer, rd
Loading…

↗
15
6Y88350011 SPEED & FUEL
S & fm meter, rd
Loading…

↗
17
6Y88351400 UN
Plate, fitting
Loading…

↗
