Digital Network Control (2010)
COMMAND LINK PLUS

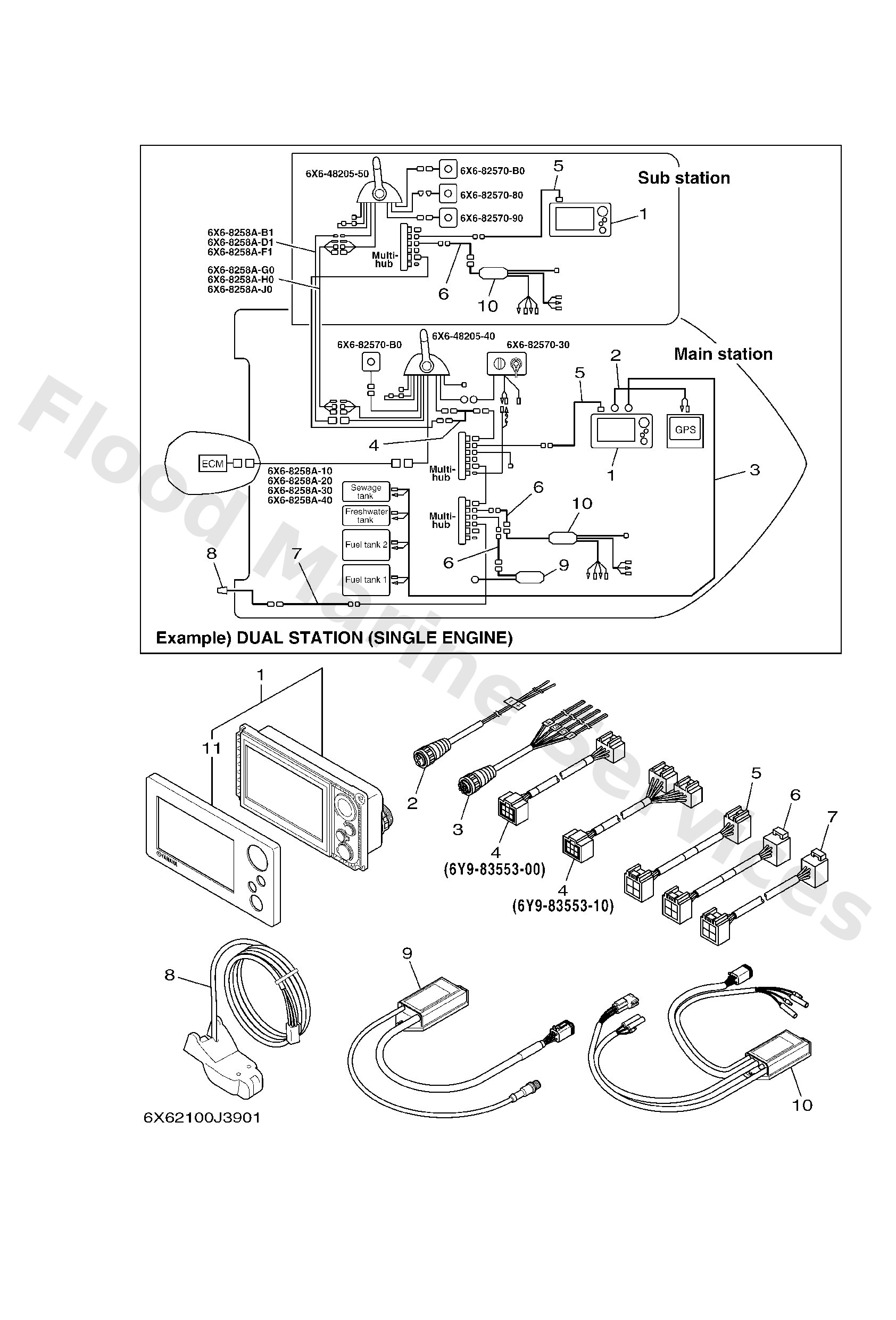

Diagram: COMMAND LINK PLUS
Parts List
Reference
Description
Price
1
6Y98371000
UN
Multi display assembly
Loading…
↗
2
6Y98356N00
FOR GPS
Wire, lead
Loading…
↗
3
6Y98356N10
FOR TANKS
Wire, lead
Loading…
↗
4
6Y98355300
UR 1 STATION
Wire, lead
Loading…
↗
4
6Y98355310
UR 2 STATION
Main bus y-split harness
Loading…
↗
5
6Y98355340
UN FOR MULTI DISPLAY
Wire, lead
Loading…
↗
6
6Y98355350
UN FOR INTERFACE UNIT
Wire, lead
Loading…
↗
7
6Y98355360
FOR SENSOR ASSY
Wire, lead
Loading…
↗
8
6Y98368800
Sensor assembly
Loading…
↗
9
6Y98A2D000
GATEWAY
Interface Unit
Loading…
↗
10
6Y98A2D010
UN ANALOGE GAUGE
Analog gauge interface
Loading…
↗
11
6Y98351200
Cover, front
Loading…
↗
