115CETO (2012)
CONTROL

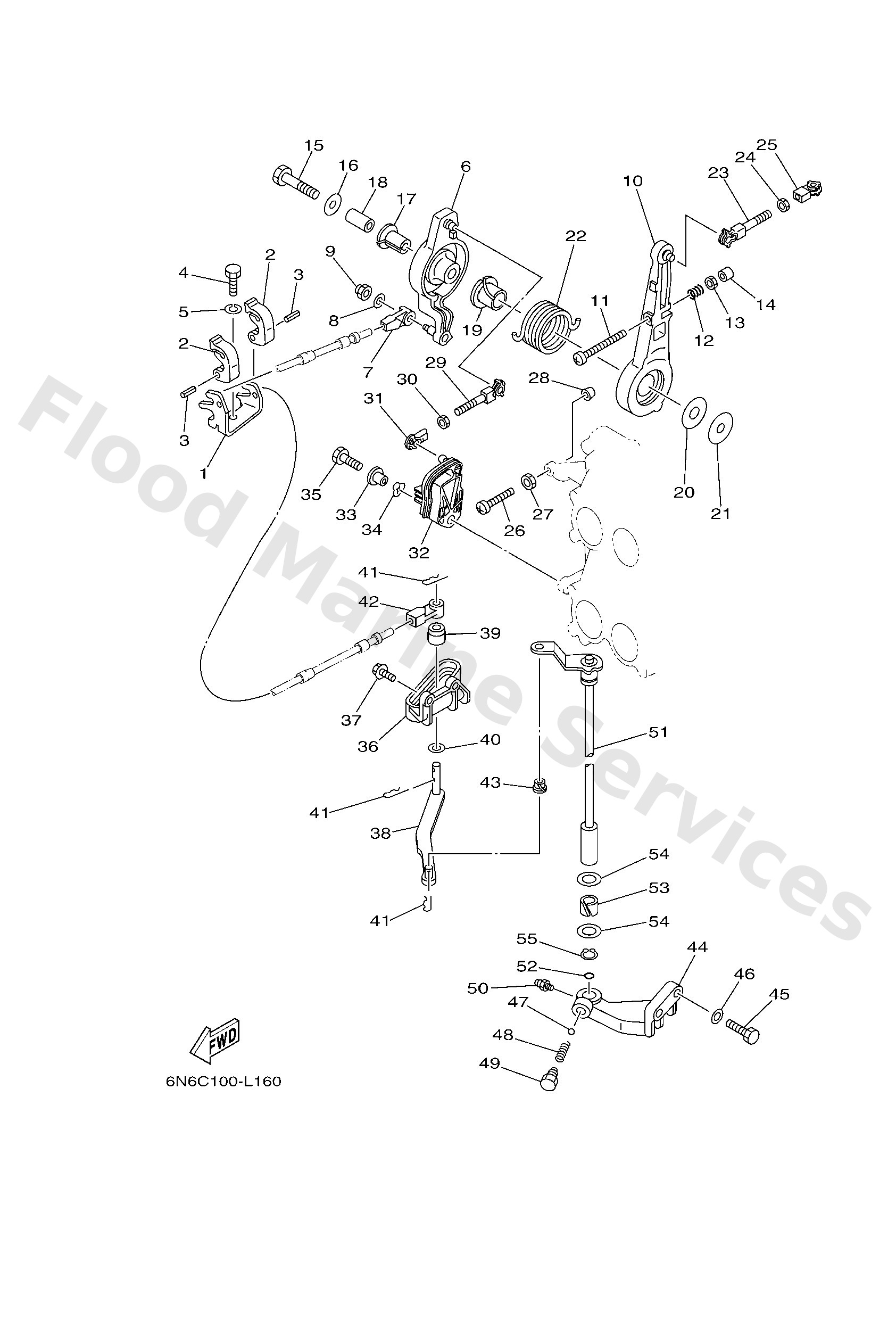

Diagram: CONTROL
Parts List
Reference
Description
Price
1
6E54853100
Bracket, remote control
Loading…
↗
2
6E54853800
Clamp, cable
Loading…
↗
3
9169030012
Pin, spring
Loading…
↗
4
9709508020
Bolt, hexagon
Loading…
↗
5
9299508100
Ybs67-8 washer, spring
Loading…
↗
6
6E541632021S
Lever, magneto control
Loading…
↗
7
6E54834400
Cable end, remote control
Loading…
↗
8
9299006200
Ybs66-6 washer, plain
Loading…
↗
9
9018506M07
Nut, self-locking(6e5)
Loading…
↗
10
6E541631011S
Lever, magneto control
Loading…
↗
11
9015706013
Screw, pan head(697)
Loading…
↗
12
9050116M12
Spring, compression (688)
Loading…
↗
13
9530306600
Nut(661)
Loading…
↗
14
6884419400
Cap
Loading…
↗
15
9701308045
Bolt
Loading…
↗
16
9020108M23
Washer, plate (6e5)
Loading…
↗
17
9038612089
Bushing(663)
Loading…
↗
18
9038708M16
Collar
Loading…
↗
19
9038622M13
Bushing (688)
Loading…
↗
20
9020212092
Washer, plate(663)
Loading…
↗
21
9020108M13
Washer plate (682)
Loading…
↗
22
9050829M12
Spring (6e5)
Loading…
↗
23
6E54163601
Rod, magneto control
Loading…
↗
24
9538005600
Nut, hexagon (663)
Loading…
↗
25
6624123701
Joint, link
Loading…
↗
29
6884163600
Rod 1
Loading…
↗
32
6E54121301
Cam, accel.
Loading…
↗
33
9038706M29
Coller (6a0)
Loading…
↗
34
9020610M04
Washer, wave (676)
Loading…
↗
35
9709506025
Bolt
Loading…
↗
36
6E5441170094
Bracket
Loading…
↗
37
9011906MA2
Bolt, with washer
Loading…
↗
38
68F4412100
Lever, shift rod
Loading…
↗
39
6E54412200
Bushing, shift rod lever
Loading…
↗
40
9020208M20
Washer, plate (6e5)
Loading…
↗
41
9046818008
Clip 620436610000
Loading…
↗
43
9038606M12
Bushing (688)
Loading…
↗
44
6E5441180194
Bracket 2
Loading…
↗
45
9701308030
Bolt
Loading…
↗
46
9290308600
Washer, plain (663)
Loading…
↗
47
9350104M02
Ball (697)
Loading…
↗
48
9050112082
Spring 6484411600
Loading…
↗
49
6484271500
Bushing 2
Loading…
↗
50
9370006M03
Nipple, grease(6a1)
Loading…
↗
51
6E54412003
L(20.3")
Handle gear shift assembly
Loading…
↗
52
9321009165
O-ring
Loading…
↗
53
9038616M66
Bush(6e5)
Loading…
↗
54
9020216061
Washer, plate(663)
Loading…
↗
55
9341016006
Circlip
Loading…
↗
