225DETO (2003)
CONTROL

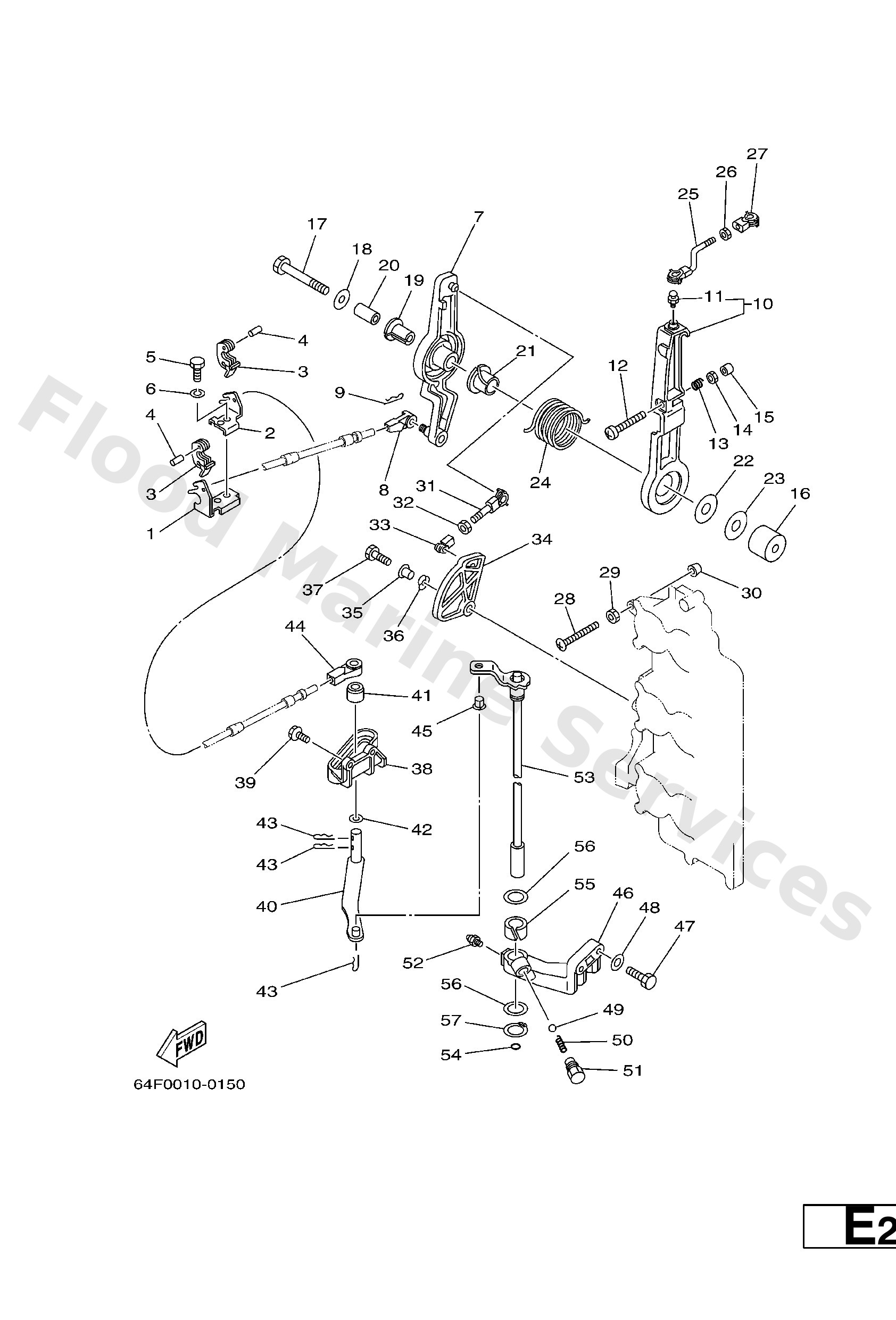

Diagram: CONTROL
Parts List
Reference
Description
Price
1
64D−48531−00
Bracket, remote control 1
Loading…
↗
2
64D−48532−00
Bracket, remote control 2
Loading…
↗
3
6E5−48538−00
Clamp, cable
Loading…
↗
4
91690−30012
Pin, spring
Loading…
↗
5
97095−08020
Bolt, hexagon
Loading…
↗
6
92995−08100
Ybs67-8 washer, spring
Loading…
↗
7
61H−41632−02−1S
Lever, magneto control
Loading…
↗
8
6E5−48344−00
Cable end, remote control
Loading…
↗
9
90468−18008
Clip 620436610000
Loading…
↗
10
6G5−41631−01−1S
Lever, magneto control
Loading…
↗
11
663−85518−00
Joint, ball
Loading…
↗
12
90157−06013
Screw, pan head(697)
Loading…
↗
13
90501−16M12
Spring, compression (688)
Loading…
↗
14
95303−06600
Nut(661)
Loading…
↗
15
688−44194−00
Cap
Loading…
↗
16
90387−08M17
Collar
Loading…
↗
17
90101−08M14
Bolt(61h)
Loading…
↗
18
90201−08M23
Washer, plate (6e5)
Loading…
↗
19
90386−12089
Bushing(663)
Loading…
↗
20
90387−08M16
Collar
Loading…
↗
21
90386−22M13
Bushing (688)
Loading…
↗
22
90202−12092
Washer, plate(663)
Loading…
↗
23
90201−08M13
Washer plate (682)
Loading…
↗
24
90508−29M12
Spring (6e5)
Loading…
↗
25
6G5−41636−01
Rod, magneto control
Loading…
↗
26
95380−05600
Nut, hexagon (663)
Loading…
↗
27
662−41237−01
Joint, link
Loading…
↗
28
90157−06M07
Screw, Pan Head
Loading…
↗
31
682−41237−50
Joint, link 2
Loading…
↗
34
61H−41213−00
Cam, accel.
Loading…
↗
35
90387−06M29
Coller (6a0)
Loading…
↗
36
90206−10M04
Washer, wave (676)
Loading…
↗
37
97095−06025
Bolt
Loading…
↗
38
6E5−44117−00−1S
Bracket
Loading…
↗
39
90119−06MA2
Bolt, with washer
Loading…
↗
40
68F−44121−00
Lever, shift rod
Loading…
↗
41
6E5−44122−00
Bushing, shift rod lever
Loading…
↗
42
90202−08M20
Washer, plate (6e5)
Loading…
↗
45
90386−06M12
Bushing (688)
Loading…
↗
46
6E5−44118−01−94
Bracket 2
Loading…
↗
47
97013−08030
Bolt
Loading…
↗
48
92903−08600
Washer, plain (663)
Loading…
↗
49
93501−04M02
Ball (697)
Loading…
↗
50
90501−12082
Spring 6484411600
Loading…
↗
51
648−42715−00
Bushing 2
Loading…
↗
52
93700−06M03
Nipple, grease(6a1)
Loading…
↗
53
6E5−44120−03
L
Handle gear shift assembly
Loading…
↗
53
6E5−44120−23
X
Handle gear shift assembly
Loading…
↗
54
93210−09165
O-ring
Loading…
↗
55
90386−16M66
Bush(6e5)
Loading…
↗
56
90202−16061
Washer, plate(663)
Loading…
↗
57
93410−16006
Circlip
Loading…
↗
