225GETO (1999)
CONTROL

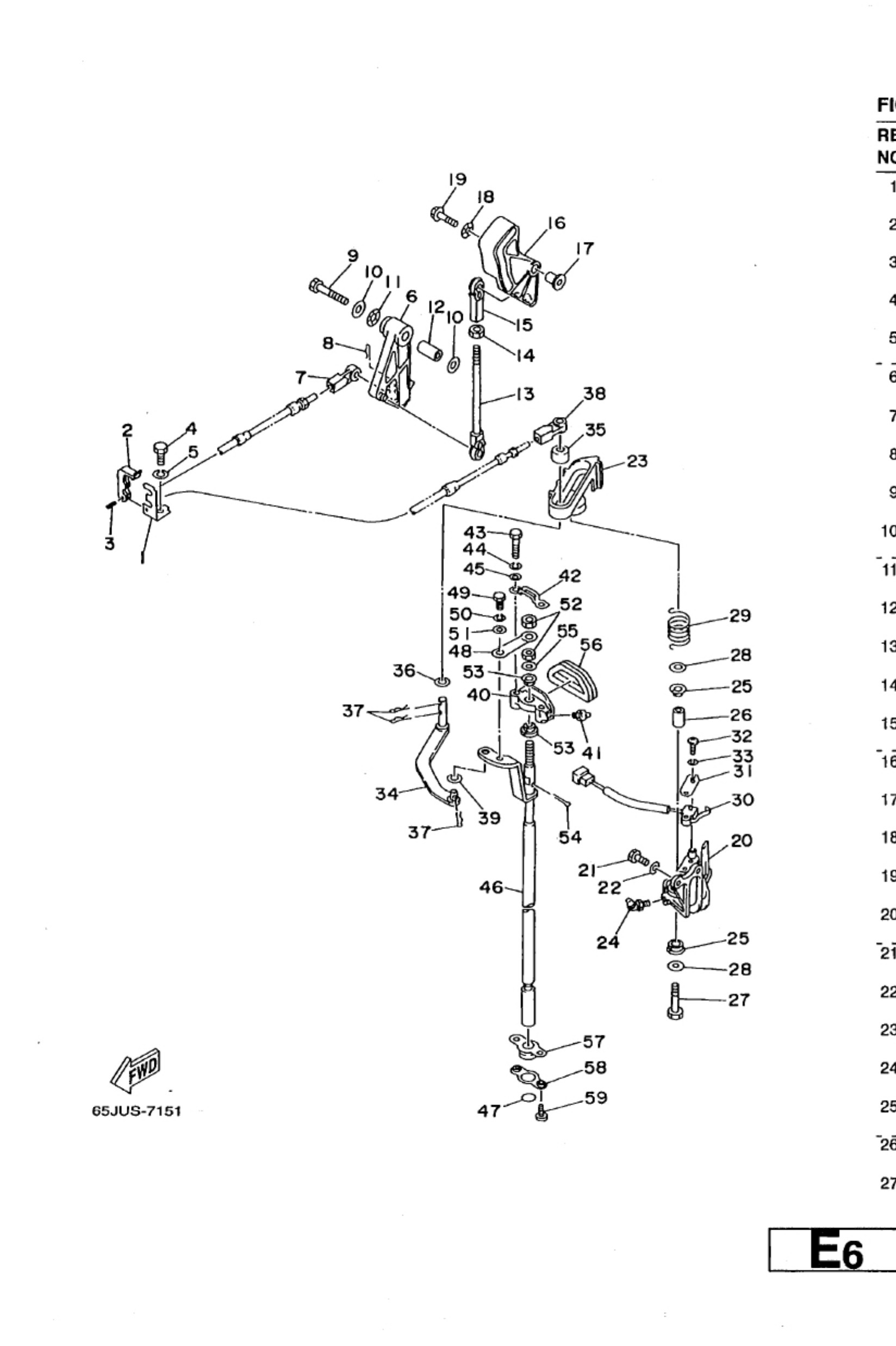

Diagram: CONTROL
Parts List
Reference
Description
Price
?
65L4853100
Bracket, Remote Control 1
Loading…
↗
2
6634853800
Clamp, cable 1
Loading…
↗
3
9169030010
Pin, spring (663)
Loading…
↗
4
9709508020
Bolt, hexagon
Loading…
↗
5
9299508100
Ybs67-8 washer, spring
Loading…
↗
6
65L4163200
Lever, Magneto Control
Loading…
↗
7
6E54834400
Cable end, remote control
Loading…
↗
8
9046818008
Clip 620436610000
Loading…
↗
9
9701308045
Bolt
Loading…
↗
10
9299008200
Ybs66-8 washer, plain
Loading…
↗
11
9020612M00
Washer, wave (676)
Loading…
↗
12
9038708M16
Collar
Loading…
↗
13
61A4123700
Joint, link
Loading…
↗
14
9538005600
Nut, hexagon (663)
Loading…
↗
15
6824123700
Joint, link 2
Loading…
↗
16
66K4121300
Cam, Accel.
Loading…
↗
17
9038706M29
Coller (6a0)
Loading…
↗
18
9020610M04
Washer, wave (676)
Loading…
↗
19
9011908M75
Bolt, With Washer
Loading…
↗
20
61A44117008D
Bracket
Loading…
↗
21
9709506016
Bolt, hexagon deep recess
Loading…
↗
22
9299506600
Washer, plain (646)
Loading…
↗
23
61A44176008D
Bracket
Loading…
↗
24
9370006M01
Nipple, grease(61a)
Loading…
↗
24
650US7151
BUSH
25 90386-12069
Loading…
↗
24
9038708M09
Collar(61a)
Loading…
↗
27
9709508035
Bolt(70w)
Loading…
↗
28
9299508200
Ybs66-8 washer, plain
Loading…
↗
29
9050820M31
Spring, torsion(61a)
Loading…
↗
30
61A8259F00
Switch assembly
Loading…
↗
31
61A8258800
Plate
Loading…
↗
32
9788504016
Screw, panhead (796)
Loading…
↗
33
9299504100
Ybs67-4 washer, spring
Loading…
↗
34
61A4412100
Lever, shift rod
Loading…
↗
35
6E54412200
Bushing, shift rod lever
Loading…
↗
36
9020208M20
Washer, plate (6e5)
Loading…
↗
39
9020206007
Washer plate 626441880000
Loading…
↗
40
61A44118008D
Bracket
Loading…
↗
41
9370006M03
Nipple, grease(6a1)
Loading…
↗
42
61A4411600
Spring
Loading…
↗
44
9299506100
Washer(6a1)
Loading…
↗
46
66K4412000
Handle Gear Shift assembly
Loading…
↗
47
9321009165
O-ring
Loading…
↗
48
61A4411200
Stay, handle gear shift
Loading…
↗
49
9701306012
Bolt(gh1)
Loading…
↗
50
9290306100
Washer(6a1)
Loading…
↗
51
9290308600
Washer, plain (663)
Loading…
↗
51
65JUS7151
52 95313-08600
Loading…
↗
54
9149020012
Pin, cotter (648)
Loading…
↗
57
61A4272400
Grommet
Loading…
↗
58
61A4413800
Washer
Loading…
↗
59
9788506008
Screw, pan head(6a3)
Loading…
↗
65
9020100M02
Washer, Plate
Loading…
↗
66
61A1531500
Seal, crankcase
Loading…
↗
