Yamaha Outboard Parts - CONTROL - 225GETO (2002) | Flood Marine

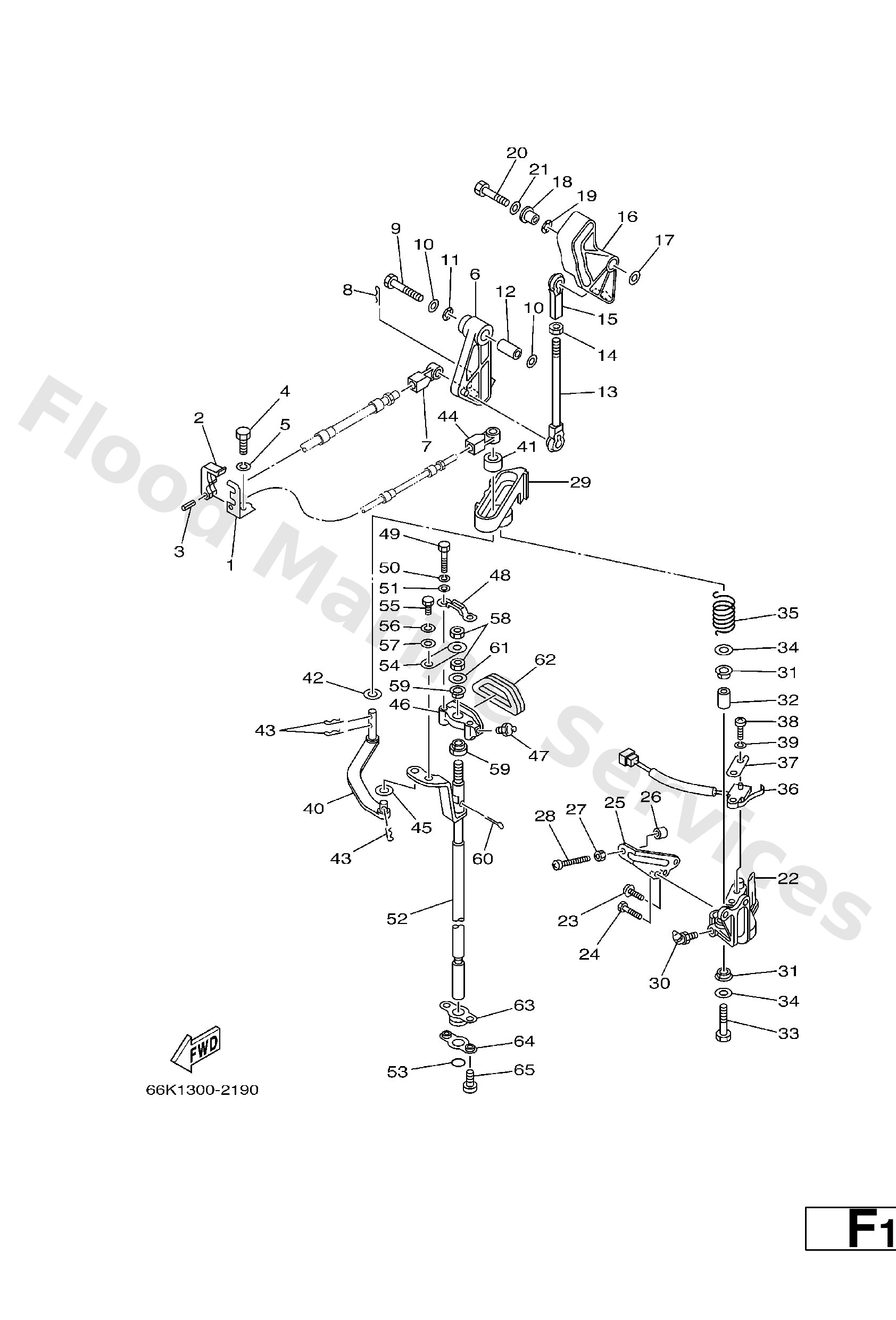

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
65L−48531−00
Bracket, Remote Control 1
Loading…

↗
2
663−48538−00
Clamp, cable 1
Loading…

↗
3
91690−30010
Pin, spring (663)
Loading…

↗
4
97095−08020
Bolt, hexagon
Loading…

↗
5
92995−08100
Ybs67-8 washer, spring
Loading…

↗
6
65L−41632−01
Lever, magneto control
Loading…

↗
7
6E5−48344−00
Cable end, remote control
Loading…

↗
8
90468−18008
Clip 620436610000
Loading…

↗
9
97013−08045
Bolt
Loading…

↗
10
92990−08200
Ybs66-8 washer, plain
Loading…

↗
11
90206−12M00
Washer, wave (676)
Loading…

↗
12
90387−08M16
Collar
Loading…

↗
13
61A−41237−00
Joint, link
Loading…

↗
14
95380−05600
Nut, hexagon (663)
Loading…

↗
15
682−41237−00
Joint, link 2
Loading…

↗
16
66K−41213−00
Cam, Accel.
Loading…

↗
17
90201−06M31
Washer (6a0)
Loading…

↗
18
90387−06M29
Coller (6a0)
Loading…

↗
19
90206−10M04
Washer, wave (676)
Loading…

↗
20
97013−06030
Bolt
Loading…

↗
21
92903−06600
Washer, plain (646)
Loading…

↗
22
61A−44117−01−1S
Bracket
Loading…

↗
23
90159−05M25
Screw,pan head (646)
Loading…

↗
24
97095−06020
Bolt(7u8)
Loading…

↗
25
69L−42744−00
Stay
Loading…

↗
26
688−44194−00
Cap
Loading…

↗
27
95380−06600
Nut(661)
Loading…

↗
28
90157−06M11
Screw, pan head(697)
Loading…

↗
29
61A−44176−00−1S
Bracket
Loading…

↗
30
93700−06M01
Nipple, grease(61a)
Loading…

↗
31
90386−12069
Bush(666)
Loading…

↗
32
90387−08M09
Collar(61a)
Loading…

↗
33
97095−08035
Bolt(70w)
Loading…

↗
34
92995−08200
Ybs66-8 washer, plain
Loading…

↗
35
90508−20M31
Spring, torsion(61a)
Loading…

↗
36
61A−8259F−00
Switch assembly
Loading…

↗
37
61A−82588−00
Plate
Loading…

↗
38
97885−04016
Screw, panhead (796)
Loading…

↗
39
92995−04100
Ybs67-4 washer, spring
Loading…

↗
40
61A−44121−00
Lever, shift rod
Loading…

↗
41
6E5−44122−00
Bushing, shift rod lever
Loading…

↗
42
90202−08M20
Washer, plate (6e5)
Loading…

↗
45
90202−06007
Washer plate 626441880000
Loading…

↗
46
61A−44118−00−8D
Bracket
Loading…

↗
47
93700−06M03
Nipple, grease(6a1)
Loading…

↗
48
61A−44116−00
Spring
Loading…

↗
49
97095−06030
Bolt(jf7)
Loading…

↗
50
92995−06100
Washer(6a1)
Loading…

↗
51
92995−06600
Washer, plain (646)
Loading…

↗
52
66K−44120−00
Handle Gear Shift assembly
Loading…

↗
53
93210−09165
O-ring
Loading…

↗
54
61A−44112−00
Stay, handle gear shift
Loading…

↗
55
97013−06012
Bolt(gh1)
Loading…

↗
56
92903−06100
Washer(6a1)
Loading…

↗
58
95313−08600
Nut(6l2)
Loading…

↗
59
90386−90M90
Bush(61a)
Loading…

↗
60
91490−20012
Pin, cotter (648)
Loading…

↗
61
90201−09M02
Washer, plate(61a)
Loading…

↗
62
61A−15315−00
Seal, crankcase
Loading…

↗
63
61A−42724−00
Grommet
Loading…

↗
64
61A−44138−00
Washer
Loading…

↗
65
97885−06008
Screw, pan head(6a3)
Loading…

↗
