25BMH (2006)
CONTROL

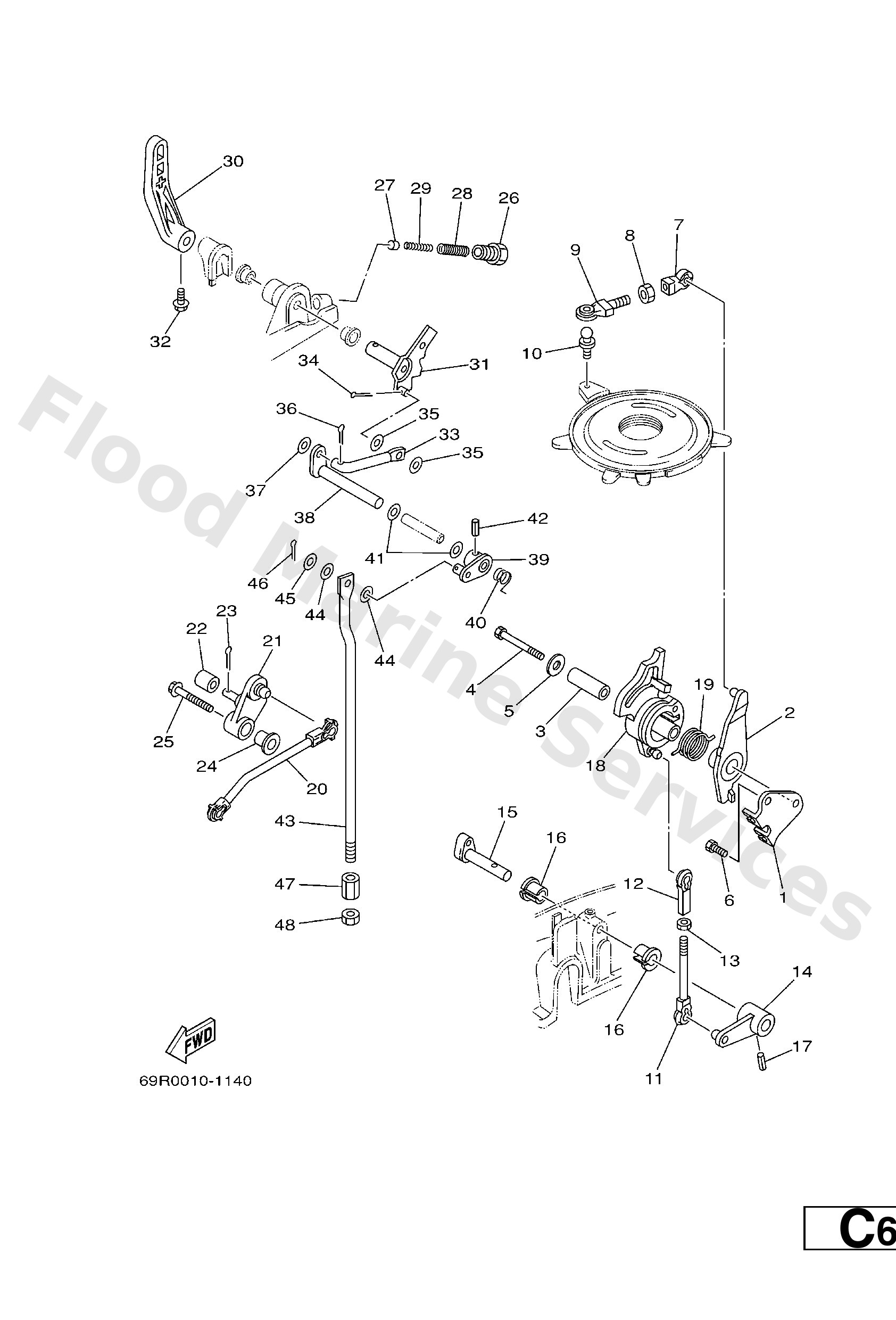

Diagram: CONTROL
Parts List
Reference
Description
Price
1
69P1449700
Stay, throttle wire
Loading…
↗
2
69P4163100
Lever, magneto control
Loading…
↗
3
9038706M59
Collar (6h3)
Loading…
↗
4
9709506045
Bolt, hexagon
Loading…
↗
5
9020106416
Washer, plate(663)
Loading…
↗
6
9709506012
Bolt(gh1)
Loading…
↗
7
6624123701
Joint, link
Loading…
↗
8
9538005700
Nut (656)
Loading…
↗
9
6794124101
Rod, link
Loading…
↗
10
6638551800
Joint, ball
Loading…
↗
11
6824123801
Joint, link
Loading…
↗
12
6824123700
Joint, link 2
Loading…
↗
13
9538005600
Nut, hexagon (663)
Loading…
↗
14
69P421570094
Lever, throttle
Loading…
↗
15
656421530094
Shaft, throttle control
Loading…
↗
16
9038610009
Bushing 6484418600
Loading…
↗
17
9169040018
Pin spring(664)
Loading…
↗
18
69P4121300
Cam, accel.
Loading…
↗
19
69P4216700
Spring 1
Loading…
↗
20
69P4124100
Rod, link
Loading…
↗
21
69P4215400
Lever, throttle control
Loading…
↗
22
62Y4217100
Bushing
Loading…
↗
23
9149016010
Pin, cotter
Loading…
↗
24
9038706M60
Collar (6h3)
Loading…
↗
25
9011906M17
Bolt, with washer
Loading…
↗
26
6644271500
Bushing 2
Loading…
↗
27
6644416701
Plunger, shift cam
Loading…
↗
28
9050114M07
Spring, compresion (664)
Loading…
↗
29
9050109M08
Spring, compresion (664)
Loading…
↗
30
68944111014D
Handle, gear shift
Loading…
↗
31
6644411301
Cam plate, handle
Loading…
↗
32
9010506M07
Bolt (689)
Loading…
↗
33
6644414200
Joint
Loading…
↗
35
9020206007
Washer plate 626441880000
Loading…
↗
36
9149012010
Pin, cotter (6g8)
Loading…
↗
37
9299005600
Washer, plain (646)
Loading…
↗
38
6894412101
Lever, shift rod 1
Loading…
↗
39
6894412500
Lever, shift rod 2
Loading…
↗
40
9050814M13
Spring (689)
Loading…
↗
41
9020210024
Washer plate 648441880000
Loading…
↗
42
9169040016
Pin, spring (648)
Loading…
↗
43
61N4414300
Rod, shift
Loading…
↗
46
9149020010
Pin, cotter
Loading…
↗
47
61N4414600
Connector, shift rod
Loading…
↗
48
9538006600
Nut(661)
