25NMHO (2012)
CONTROL

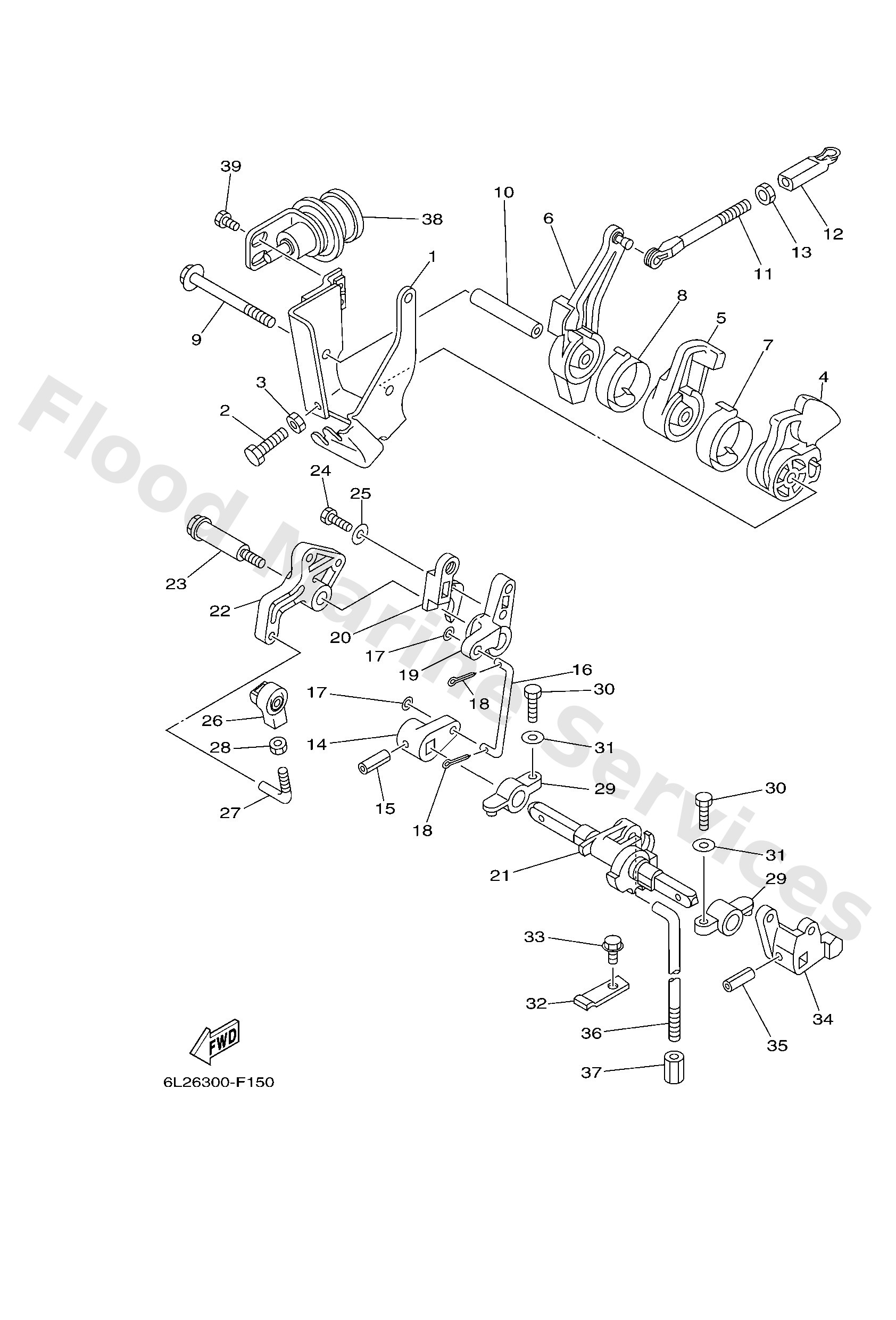

Diagram: CONTROL
Parts List
Reference
Description
Price
1
6L21449700
Stay, throttle wire
Loading…
↗
2
9709506020
Bolt(7u8)
Loading…
↗
3
9538006700
Nut
Loading…
↗
4
6L24121300
Cam, accel.
Loading…
↗
5
6L24128300
Lever, free accel.
Loading…
↗
6
6L24163100
Lever, magneto control
Loading…
↗
7
6J84216700
Spring 1
Loading…
↗
8
6L24216700
Spring 1
Loading…
↗
9
9759506575
Bolt, with washer
Loading…
↗
10
9038706M18
Collar
Loading…
↗
11
6894216901
Joint
Loading…
↗
12
6624123701
Joint, link
Loading…
↗
13
9538005600
Nut, hexagon (663)
Loading…
↗
14
6L24412200
Bushing, shift rod lever
Loading…
↗
15
9025403M04
Pin, spring (6h3)
Loading…
↗
16
6L24219200
Rod 2
Loading…
↗
17
9020205088
Washer, plate (666)
Loading…
↗
18
9149020010
Pin, cotter
Loading…
↗
19
6L24414102
Link, shift rod
Loading…
↗
20
6L2441411094
Link, shift rod
Loading…
↗
21
6L24412100
Lever, shift rod
Loading…
↗
22
6L24121200
Arm, accel.
Loading…
↗
23
9010906M28
Bolt(6j8)
Loading…
↗
24
9701305016
Bolt
Loading…
↗
25
9290305600
Washer, plain (646)
Loading…
↗
26
6L24123700
Joint, link
Loading…
↗
27
6L24123800
Joint, link
Loading…
↗
28
9538005700
Nut (656)
Loading…
↗
29
6G1416620194
Bracket
Loading…
↗
30
9701306020
Bolt(62y)
Loading…
↗
31
9290306600
Washer, plain (646)
Loading…
↗
32
6J84411600
Spring
Loading…
↗
33
9589506012
Bolt, flange deep recess
Loading…
↗
34
6L24412300
Arm, shift rod
Loading…
↗
36
6L24414300
Rod, shift
Loading…
↗
37
9017006015
Connector, shift rod
Loading…
↗
38
6L21436800
Diaphragm assembly 1
Loading…
↗
39
9709506008
Bolt (fj1)
Loading…
↗
