3AMH (2007)
CONTROL

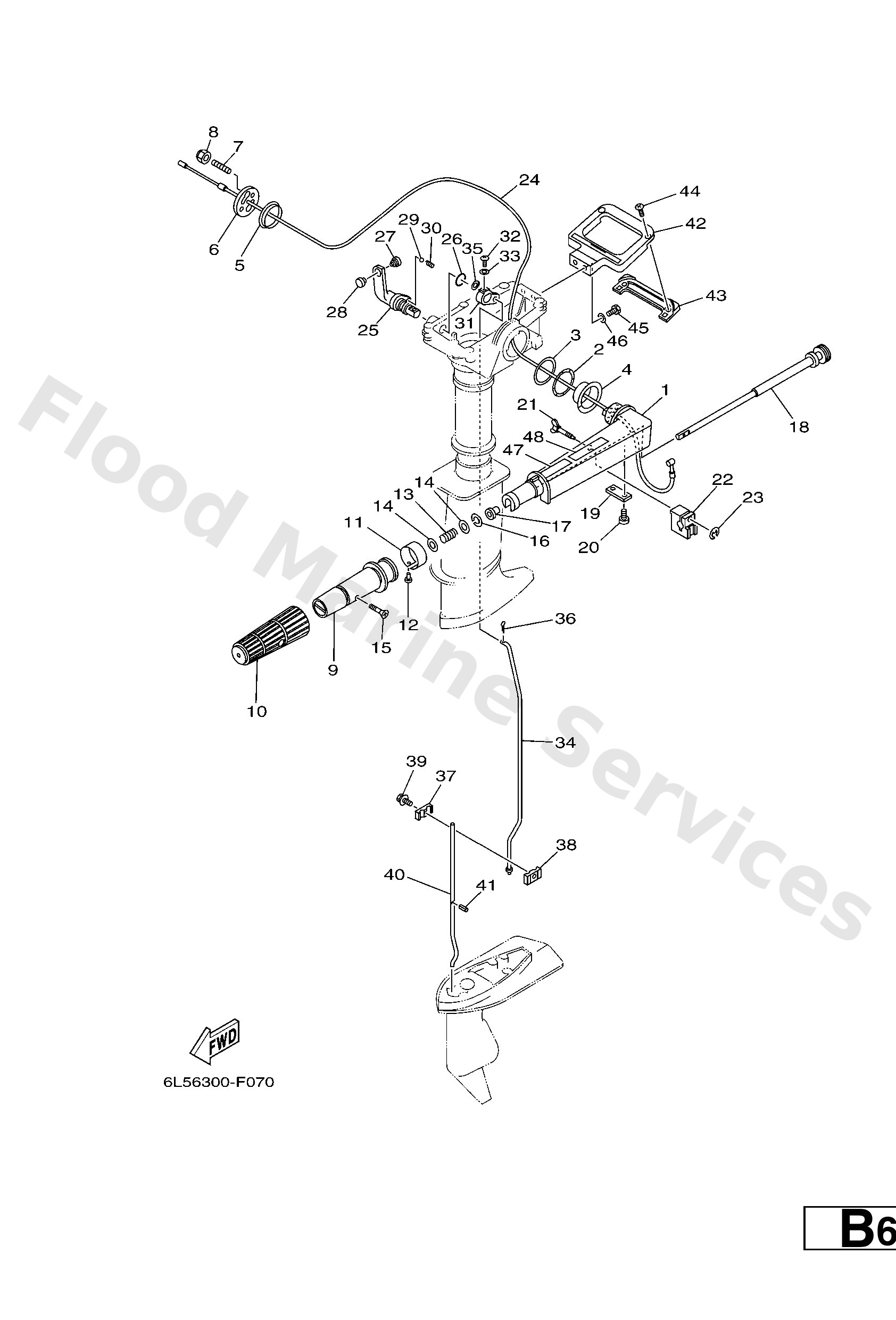

Diagram: CONTROL
Parts List
Reference
Description
Price
1
6G142111124D
Handle, steering
Loading…
↗
2
9020636M21
Washer, wave(63v)
Loading…
↗
3
9020236M55
Washer, plate(63v)
Loading…
↗
4
9038634M97
Bush(63v)
Loading…
↗
5
9038633M96
Bush(63v)
Loading…
↗
6
6G14213102
Cover, handle steering
Loading…
↗
7
9011608016
Bolt, stud
Loading…
↗
8
9018508057
Nut, nylon (6j8)
Loading…
↗
9
6644211900
Grip, steering handle
Loading…
↗
10
6G14217700
Rubber, handle
Loading…
↗
11
6L54213700
Indicator, throttle
Loading…
↗
12
9026902M09
Rivet(6l5)
Loading…
↗
13
9050123215
Spring (655)
Loading…
↗
14
9020110M02
Washer, plate(6g9)
Loading…
↗
15
9014905M13
Screw, countersunk
Loading…
↗
16
9020908M17
Washer(6l5)
Loading…
↗
17
9038608032
Bushing (650)
Loading…
↗
18
6G14213801
Lever, throttle
Loading…
↗
19
6E04215902
Stay
Loading…
↗
20
9788505012
Screw,pan head (646)
Loading…
↗
21
6L54212500
Bolt, friction adjusting
Loading…
↗
22
6G14212600
Piece, friction
Loading…
↗
23
9908003600
Circlip(6l5)
Loading…
↗
24
6L52630101
Throttle cable assembly
Loading…
↗
25
6L54411100
Handle, gear shift
Loading…
↗
26
9321012327
O-ring(3ld)
Loading…
↗
27
6L54419600
Indicator 3
Loading…
↗
28
6L54419700
Indicator 4
Loading…
↗
29
9350516024
Ball
Loading…
↗
30
9050112274
Spring 6554411600
Loading…
↗
31
6L54412100
Lever, shift rod
Loading…
↗
32
9778040520
Ybs83-420 screw,panh,tapping
Loading…
↗
33
9299004600
Washer, plain (646)
Loading…
↗
34
6L54414300
Rod, shift
Loading…
↗
35
9299005600
Washer, plain (646)
Loading…
↗
36
9149016010
Pin, cotter
Loading…
↗
37
6E04414500
Connector, shift rod 1
Loading…
↗
38
6E04414600
Connector, shift rod 2
Loading…
↗
39
9589506020
Bolt, flange(jk3)
Loading…
↗
40
6L54414400
S(17.4")
Rod, shift
Loading…
↗
40
6L54414410
L(22.4")
Rod, shift
Loading…
↗
41
9160925014
Pin, Spring
Loading…
↗
42
6L542731004D
Carrying handle
Loading…
↗
43
6L54273500
Protector
Loading…
↗
44
9016104M02
Screw, tapping (676)
Loading…
↗
45
9709506020
Bolt(7u8)
Loading…
↗
46
9299506600
Washer, plain (646)
Loading…
↗
47
6A12415A41
Label, caution
Loading…
↗
48
6A12415A51
Label, Caution
Loading…
↗
