40VEO (2012)
CONTROL

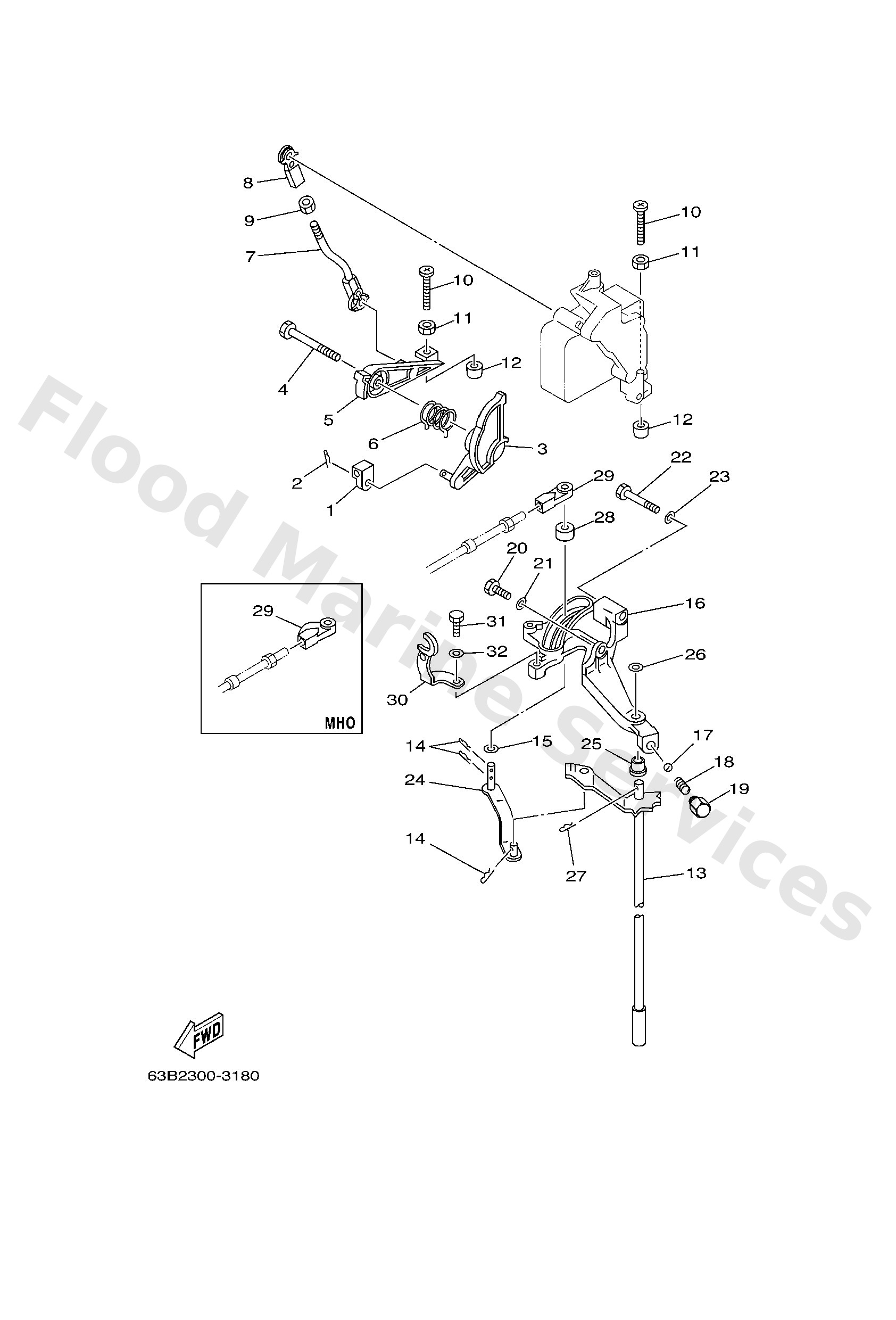

Diagram: CONTROL
Parts List
Reference
Description
Price
1
6H44834400
Cable end, remote control
Loading…
↗
2
9046818008
Clip 620436610000
Loading…
↗
3
63D4121300
Cam, accel.
Loading…
↗
4
9010906M43
Bolt(6h4)
Loading…
↗
5
63D4163200
Lever, magneto control
Loading…
↗
6
9050826M35
Spring, torsion
Loading…
↗
7
63D4163600
Rod, magneto control
Loading…
↗
8
6H44123700
Joint, link
Loading…
↗
9
9538005600
Nut, hexagon (663)
Loading…
↗
10
9015706M13
Screw, pan head(6h4)
Loading…
↗
11
9530306600
Nut(661)
Loading…
↗
12
6884419400
Cap
Loading…
↗
13
63D4412010
L(21.0")
Handle gear shift assembly
Loading…
↗
13
63D4412000
S(16.0")
Handle gear shift assembly
Loading…
↗
15
9020207M07
Washer, plate (688)
Loading…
↗
16
63D4411700
Bracket
Loading…
↗
17
9350104M02
Ball (697)
Loading…
↗
18
9050112082
Spring 6484411600
Loading…
↗
19
6484271500
Bushing 2
Loading…
↗
20
9701306020
Bolt(62y)
Loading…
↗
21
9290306600
Washer, plain (646)
Loading…
↗
22
9701306045
Bolt, hexagon
Loading…
↗
24
63D4412100
Lever, shift rod
Loading…
↗
25
9038607M58
Bush(6h1)
Loading…
↗
26
9299008200
Ybs66-8 washer, plain
Loading…
↗
27
9149020012
Pin, cotter (648)
Loading…
↗
28
6884412200
Bushing, shift rod lever
Loading…
↗
29
63D4834400
Cable end, remote control
Loading…
↗
29
6634834400
Cable end, remote control
Loading…
↗
30
63D1577400
Stay 4
Loading…
↗
31
9709506016
Bolt, hexagon deep recess
Loading…
↗
32
9299506600
Washer, plain (646)
Loading…
↗
