40VMHO (2003)
CONTROL

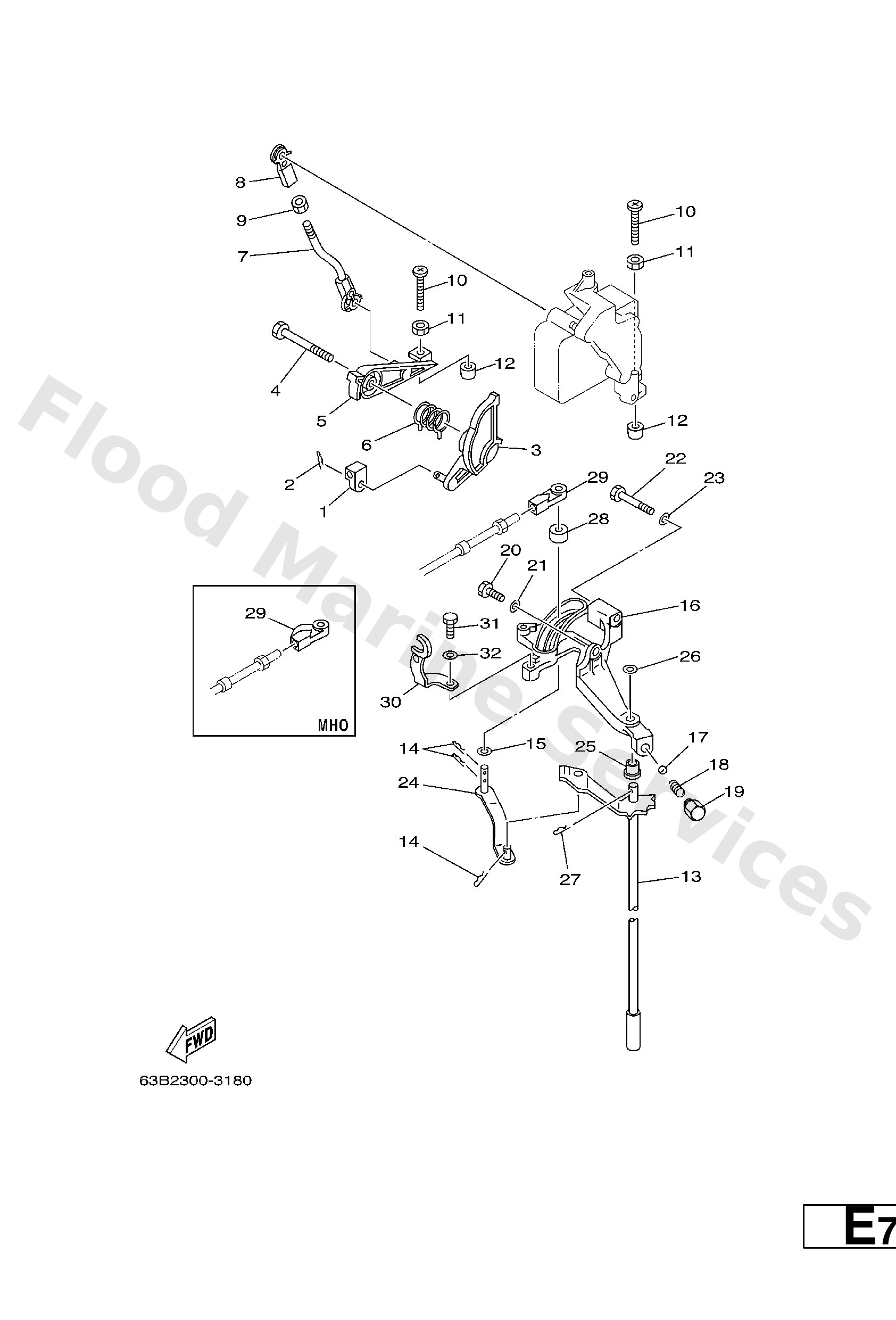

Diagram: CONTROL
Parts List
Reference
Description
Price
1
6H4−48344−00
Cable end, remote control
Loading…
↗
2
90468−18008
Clip 620436610000
Loading…
↗
3
63D−41213−00
40V
Cam, accel.
Loading…
↗
3
68P−41213−A0
40Y
Cam, Accel.
Loading…
↗
4
90109−06M43
Bolt(6h4)
Loading…
↗
5
63D−41632−00
Lever, magneto control
Loading…
↗
6
90508−26M35
Spring, torsion
Loading…
↗
7
63D−41636−00
Rod, magneto control
Loading…
↗
8
6H4−41237−00
Joint, link
Loading…
↗
9
95380−05600
Nut, hexagon (663)
Loading…
↗
10
90157−06M13
Screw, pan head(6h4)
Loading…
↗
11
95303−06600
Nut(661)
Loading…
↗
12
688−44194−00
Cap
Loading…
↗
13
63D−44120−00
S
Handle gear shift assembly
Loading…
↗
13
63D−44120−10
L
Handle gear shift assembly
Loading…
↗
15
90202−07M07
Washer, plate (688)
Loading…
↗
16
63D−44117−00
Bracket
Loading…
↗
17
93501−04M02
Ball (697)
Loading…
↗
18
90501−12082
Spring 6484411600
Loading…
↗
19
648−42715−00
Bushing 2
Loading…
↗
20
97013−06020
Bolt(62y)
Loading…
↗
21
92903−06600
Washer, plain (646)
Loading…
↗
22
97013−06045
Bolt, hexagon
Loading…
↗
24
63D−44121−00
Lever, shift rod
Loading…
↗
25
90386−07M58
Bush(6h1)
Loading…
↗
26
92990−08200
Ybs66-8 washer, plain
Loading…
↗
27
91490−20012
Pin, cotter (648)
Loading…
↗
28
688−44122−00
Bushing, shift rod lever
Loading…
↗
29
663−48344−00
Cable end, remote control
Loading…
↗
29
63D−48344−00
Cable end, remote control
Loading…
↗
30
63D−15774−00
Stay 4
Loading…
↗
31
97095−06016
Bolt, hexagon deep recess
Loading…
↗
32
92995−06600
Washer, plain (646)
Loading…
↗
