40XMH (2015)
CONTROL

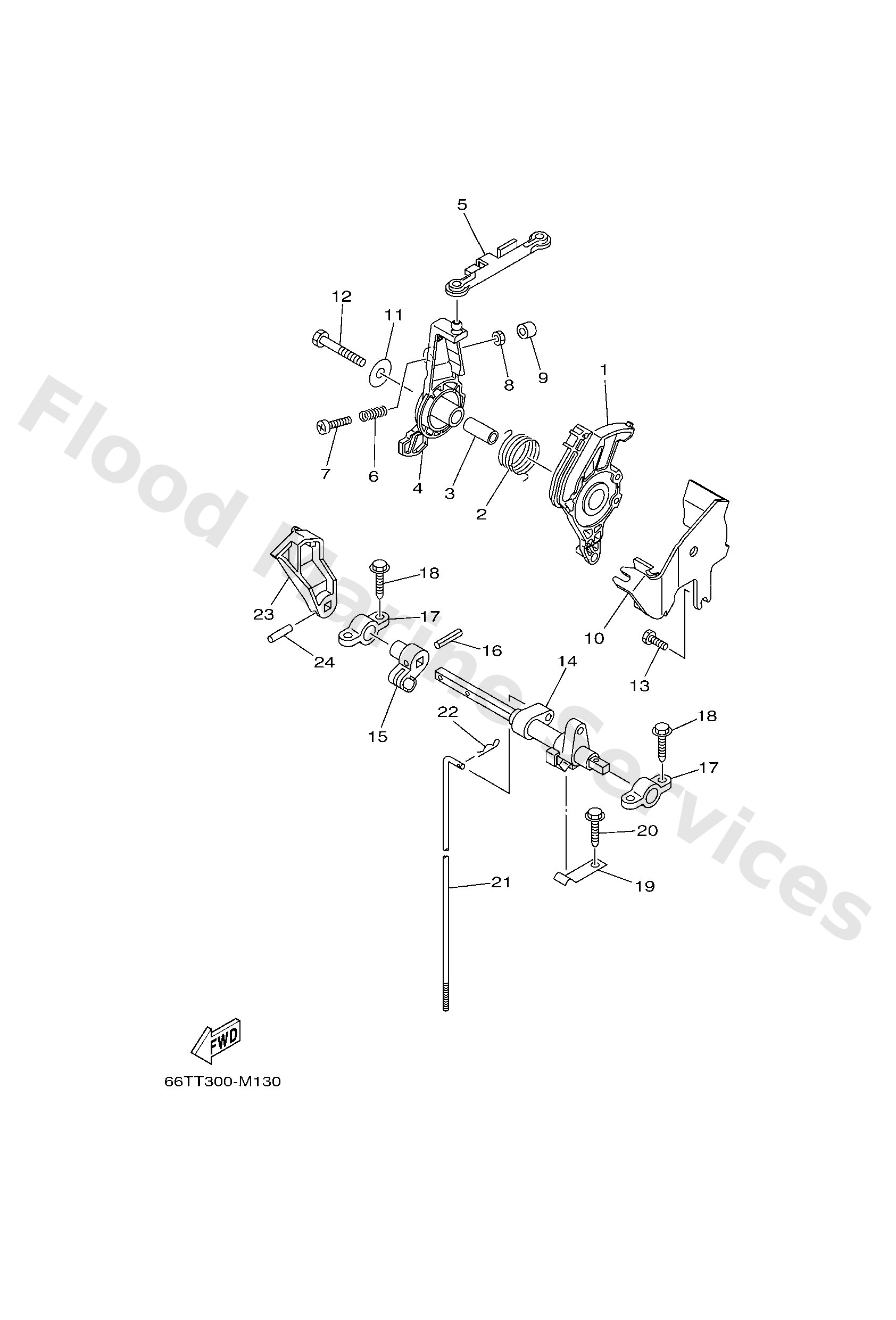

Diagram: CONTROL
Parts List
Reference
Description
Price
1
66T4163810
Pulley
Loading…
↗
2
66T4216700
Spring 1
Loading…
↗
3
9038708M16
Collar
Loading…
↗
4
66T4163112
Lever, magneto control
Loading…
↗
5
66T4123700
Joint, link
Loading…
↗
6
9050110M84
Spring, compression
Loading…
↗
7
9788006035
Screw, pan head(6h4)
Loading…
↗
8
9538006700
Nut
Loading…
↗
9
6884419400
Cap
Loading…
↗
10
66T1449710
Stay, throttle wire
Loading…
↗
11
9020108M54
Washer, plate (6e5)
Loading…
↗
12
9709508045
Bolt, hexagon
Loading…
↗
13
9709506014
Bolt(gj3)
Loading…
↗
14
66T4412101
Lever, shift rod
Loading…
↗
15
66M4412200
Bushing, shift rod lever
Loading…
↗
16
9025403M05
Pin, spring
Loading…
↗
17
6F54166200
Bracket 2
Loading…
↗
18
9010906M81
Bolt
Loading…
↗
19
6824411601
Spring
Loading…
↗
20
9010906M80
Bolt
Loading…
↗
21
66T4414310
L(21.7")
Rod, shift
Loading…
↗
22
9149016012
Pin, cotter (e57)
Loading…
↗
23
66T4412501
Lever, shift rod
Loading…
↗
24
9025403M04
Pin, spring (6h3)
Loading…
↗
