Yamaha Outboard Parts - CONTROL - 5CMH (2003) | Flood Marine

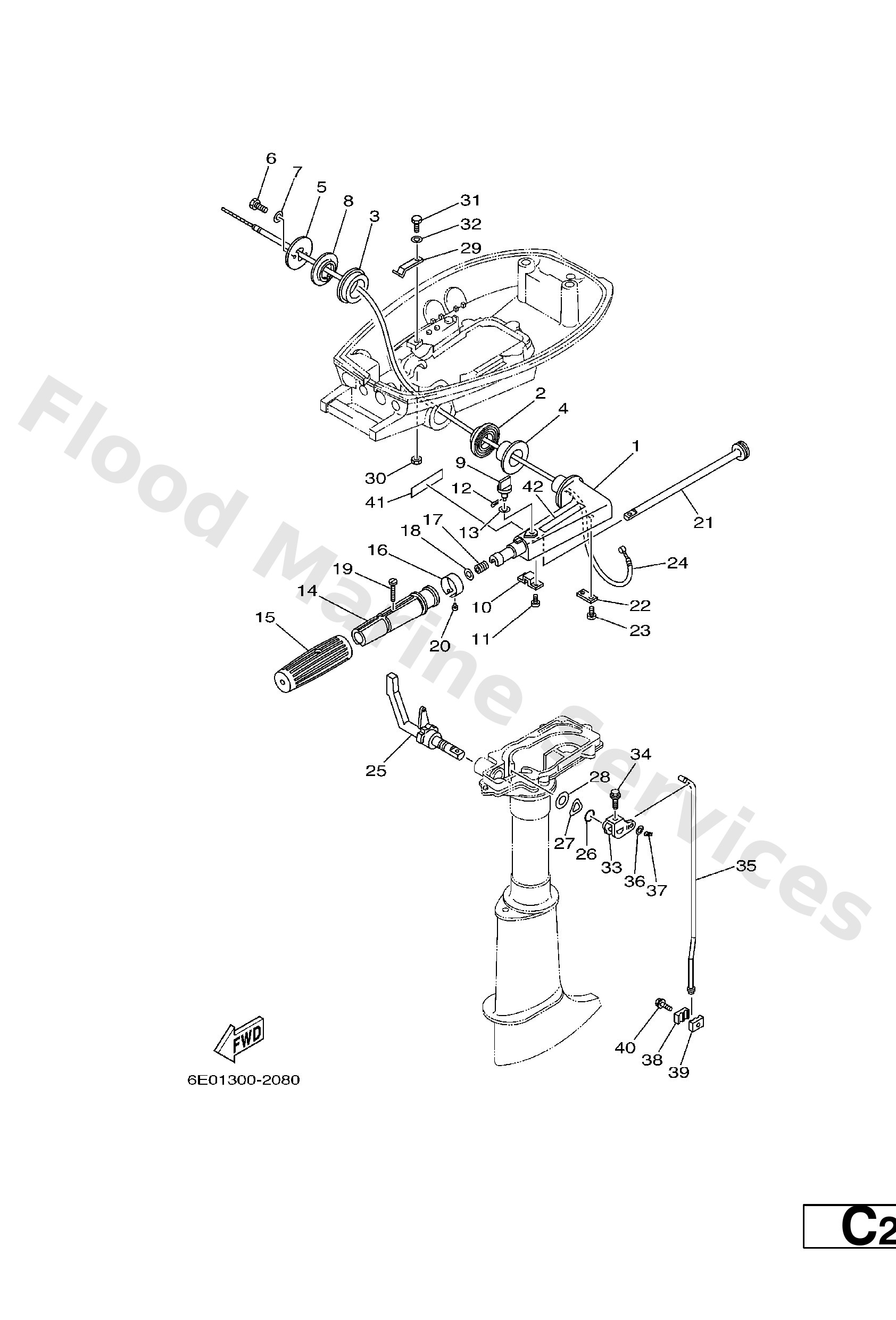

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
6E0−42111−02−4D
Handle, steering
Loading…

↗
2
6E0−42129−02
Bushing, rubber
Loading…

↗
3
6E4−42129−00
Bushing, rubber
Loading…

↗
4
90386−26M30
Bushing (6e0)
Loading…

↗
5
6E0−42131−02−94
Cover, handle steering
Loading…

↗
6
97013−05020
Bolt, hexagon
Loading…

↗
7
92903−05600
Washer, plain (646)
Loading…

↗
8
90386−26M33
Bushing (6e0)
Loading…

↗
9
6E0−42125−00
Bolt, friction adjust
Loading…

↗
10
6E0−42134−02
Cover, throttle lever
Loading…

↗
11
97885−05012
Screw,pan head (646)
Loading…

↗
12
91490−12010
Pin, cotter (6g8)
Loading…

↗
13
90202−07M22
Washer (6e0)
Loading…

↗
14
6E0−42119−00
Grip, steering handle
Loading…

↗
15
6E0−42177−00
Rubber, handle
Loading…

↗
16
6E0−42137−10
Indicator, throttle
Loading…

↗
17
90501−23215
Spring (655)
Loading…

↗
18
90201−10119
Washer, plain(735)
Loading…

↗
19
90149−05M13
Screw, countersunk
Loading…

↗
20
90269−02M09
Rivet(6l5)
Loading…

↗
21
6E0−42138−01
Lever, throttle
Loading…

↗
22
6E0−42159−02
Stay
Loading…

↗
24
6E0−26301−01
Throttle wire assembly
Loading…

↗
25
6E4−44111−72−4D
Handle, gear shift
Loading…

↗
26
93210−12327
O-ring(3ld)
Loading…

↗
27
90206−16M06
Washer, wave (6e0)
Loading…

↗
28
90202−16061
Washer, plate(663)
Loading…

↗
29
6E0−44116−00
Spring
Loading…

↗
30
95380−06700
Nut
Loading…

↗
31
97095−06012
Bolt(gh1)
Loading…

↗
32
92995−06600
Washer, plain (646)
Loading…

↗
33
6E0−44121−00
Lever, shift rod 1
Loading…

↗
34
95895−06025
Bolt, flange deep recess
Loading…

↗
35
6E0−44143−00 S
Rod, shift 1
Loading…

↗
35
6E0−44143−10 L
Rod, shift 1
Loading…

↗
36
92990−05600
Washer, plain (646)
Loading…

↗
37
91490−16010
Pin, cotter
Loading…

↗
38
6E0−44145−00
Connector, shift rod 1
Loading…

↗
39
6E0−44146−00
Connector, shift rod 2
Loading…

↗
40
95895−06020
Bolt, flange(jk3)
Loading…

↗
41
6A1−2415A−41
Label, caution
Loading…

↗
42
6A1−2415A−51
Label, Caution
Loading…

↗
