5CMH (2015)
CONTROL

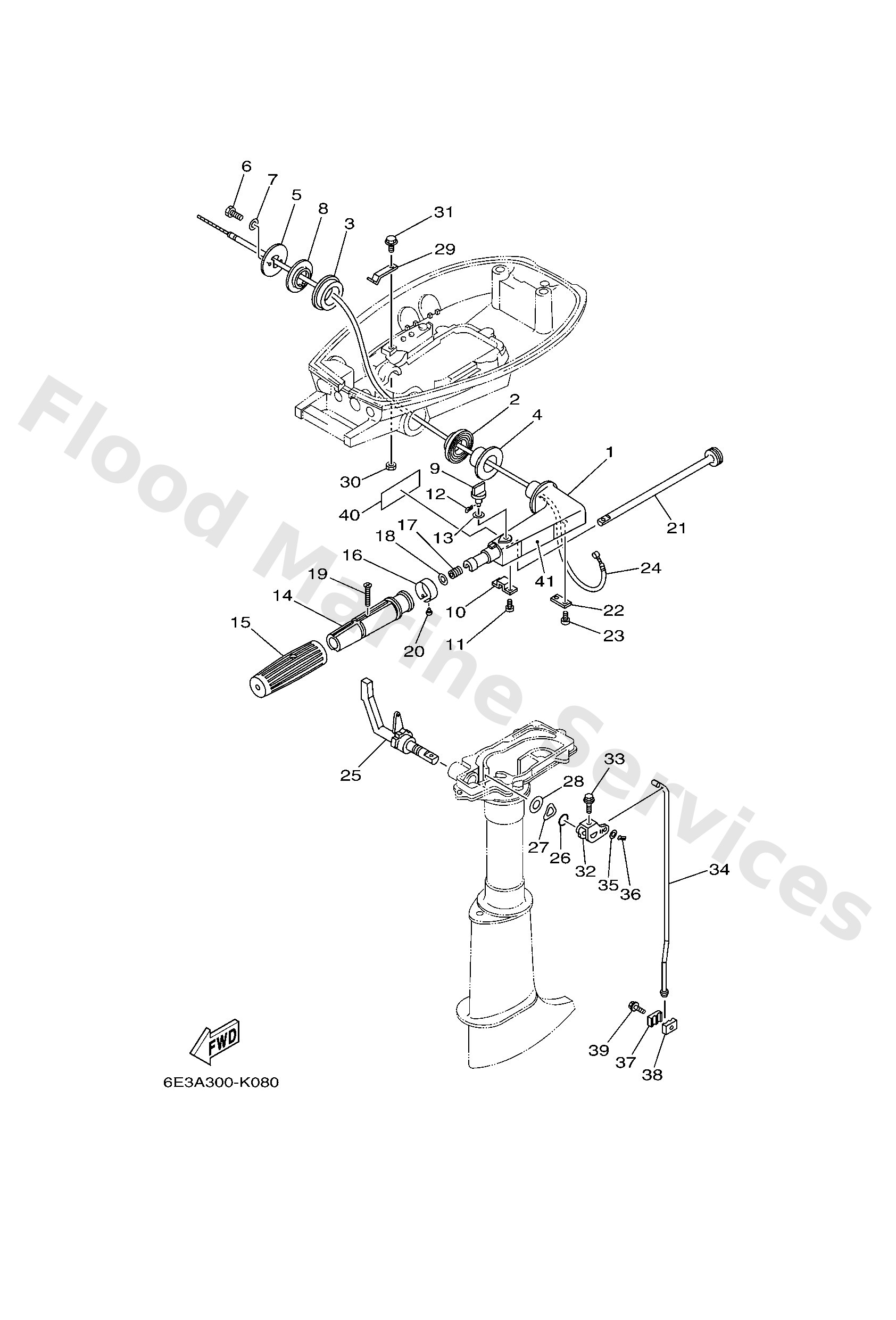

Diagram: CONTROL
Parts List
Reference
Description
Price
1
6E042111024D
Handle, steering
Loading…
↗
2
6E04212902
Bushing, rubber
Loading…
↗
3
6E44212900
Bushing, rubber
Loading…
↗
4
9038626M30
Bushing (6e0)
Loading…
↗
5
6E0421310294
Cover, handle steering
Loading…
↗
6
9701305020
Bolt, hexagon
Loading…
↗
7
9290305600
Washer, plain (646)
Loading…
↗
8
9038626M33
Bushing (6e0)
Loading…
↗
9
6E04212500
Bolt, friction adjust
Loading…
↗
10
6E04213402
Cover, throttle lever
Loading…
↗
11
9788505012
Screw,pan head (646)
Loading…
↗
12
9149012010
Pin, cotter (6g8)
Loading…
↗
13
9020207M22
Washer (6e0)
Loading…
↗
14
6E04211900
Grip, steering handle
Loading…
↗
15
6E04217700
Rubber, handle
Loading…
↗
16
6E04213710
Indicator, throttle
Loading…
↗
17
9050123215
Spring (655)
Loading…
↗
18
9020110119
Washer, plain(735)
Loading…
↗
19
9015205011
Screw, countersunk
Loading…
↗
20
9026902M09
Rivet(6l5)
Loading…
↗
21
6E04213801
Lever, throttle
Loading…
↗
22
6E04215902
Stay
Loading…
↗
24
6E02630101
Throttle wire assembly
Loading…
↗
25
6E444111724D
Handle, gear shift
Loading…
↗
26
9321012327
O-ring(3ld)
Loading…
↗
27
9020616M06
Washer, wave (6e0)
Loading…
↗
28
9020216061
Washer, plate(663)
Loading…
↗
29
6E04411600
Spring
Loading…
↗
30
9538006700
Nut
Loading…
↗
31
9589506012
Bolt, flange deep recess
Loading…
↗
32
6E04412100
Lever, shift rod 1
Loading…
↗
33
9589506025
Bolt, flange deep recess
Loading…
↗
34
6E04414300
S(17.5")
Rod, shift 1
Loading…
↗
34
6E04414310
L(22.5")
Rod, shift 1
Loading…
↗
35
9299005600
Washer, plain (646)
Loading…
↗
36
9149016010
Pin, cotter
Loading…
↗
37
6E04414500
Connector, shift rod 1
Loading…
↗
38
6E04414600
Connector, shift rod 2
Loading…
↗
39
9589506020
Bolt, flange(jk3)
Loading…
↗
40
6EE4279440
Label, warning (general)
Loading…
↗
41
6EE4279450
Label, warning (general)
Loading…
↗
