Yamaha Outboard Parts - CONTROL - 6DMH (2003) | Flood Marine

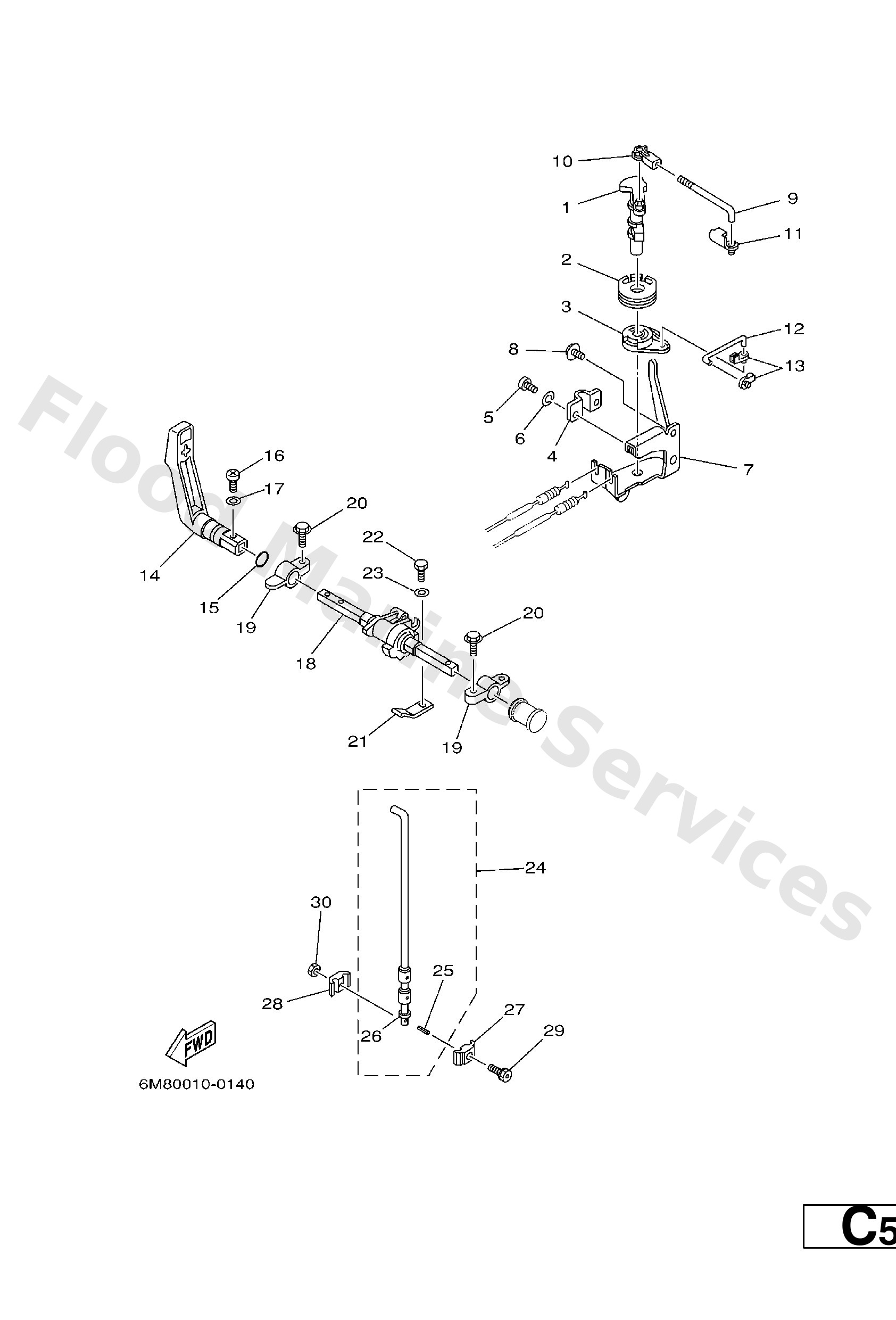

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
6G1−41631−00
Lever, magneto control
Loading…

↗
2
6G1−41638−00
Pulley
Loading…

↗
3
6G1−41283−01
Lever, free accel 1
Loading…

↗
4
6G1−41661−00
Bracket 1
Loading…

↗
5
97880−05010
Screw, pan head(62x)
Loading…

↗
6
92990−05100
Ybs67-5 washer, spring
Loading…

↗
7
6G1−14497−80
Stay, throttle wire
Loading…

↗
8
95895−06010
Bolt, flange(7ht)
Loading…

↗
9
6G1−41238−00
Joint, link
Loading…

↗
10
662−41237−01
Joint, link
Loading…

↗
11
6E9−41237−00
Joint, link
Loading…

↗
12
6G1−41211−00
Link, accel
Loading…

↗
13
661−41262−02
Joint, choke lever
Loading…

↗
14
6N0−G4111−00
Handle, gear shift
Loading…

↗
15
93210−12327
O-ring(3ld)
Loading…

↗
16
97880−05016
Screw, pan head(6b0)
Loading…

↗
17
92990−05600
Washer, plain (646)
Loading…

↗
18
6G1−44121−02−94
Lever, shift rod
Loading…

↗
19
6G1−41662−01−94
Bracket
Loading…

↗
20
90105−06M14
Bolt (6e0)
Loading…

↗
21
6G1−44116−01
Spring
Loading…

↗
22
97095−06012
Bolt(gh1)
Loading…

↗
23
92995−06600
Washer, plain (646)
Loading…

↗
24
6N0−G4110−00
Shift rod assembly
Loading…

↗
25
91690−20010
Pin, spring
Loading…

↗
27
6N0−G4145−00 UR
Connector, shift rod 1
Loading…

↗
27
6N0−G4145−10 UR
Connecter 1
Loading…

↗
28
6N0−G4146−00 UR
Connecter 2
Loading…

↗
28
6N0−G4146−10 UR
Connecter 2
Loading…

↗
29
90109−06M17
Bolt (6g1)
Loading…

↗
30
95380−06600
Nut(661)
Loading…

↗
