70BETO (2008)
CONTROL

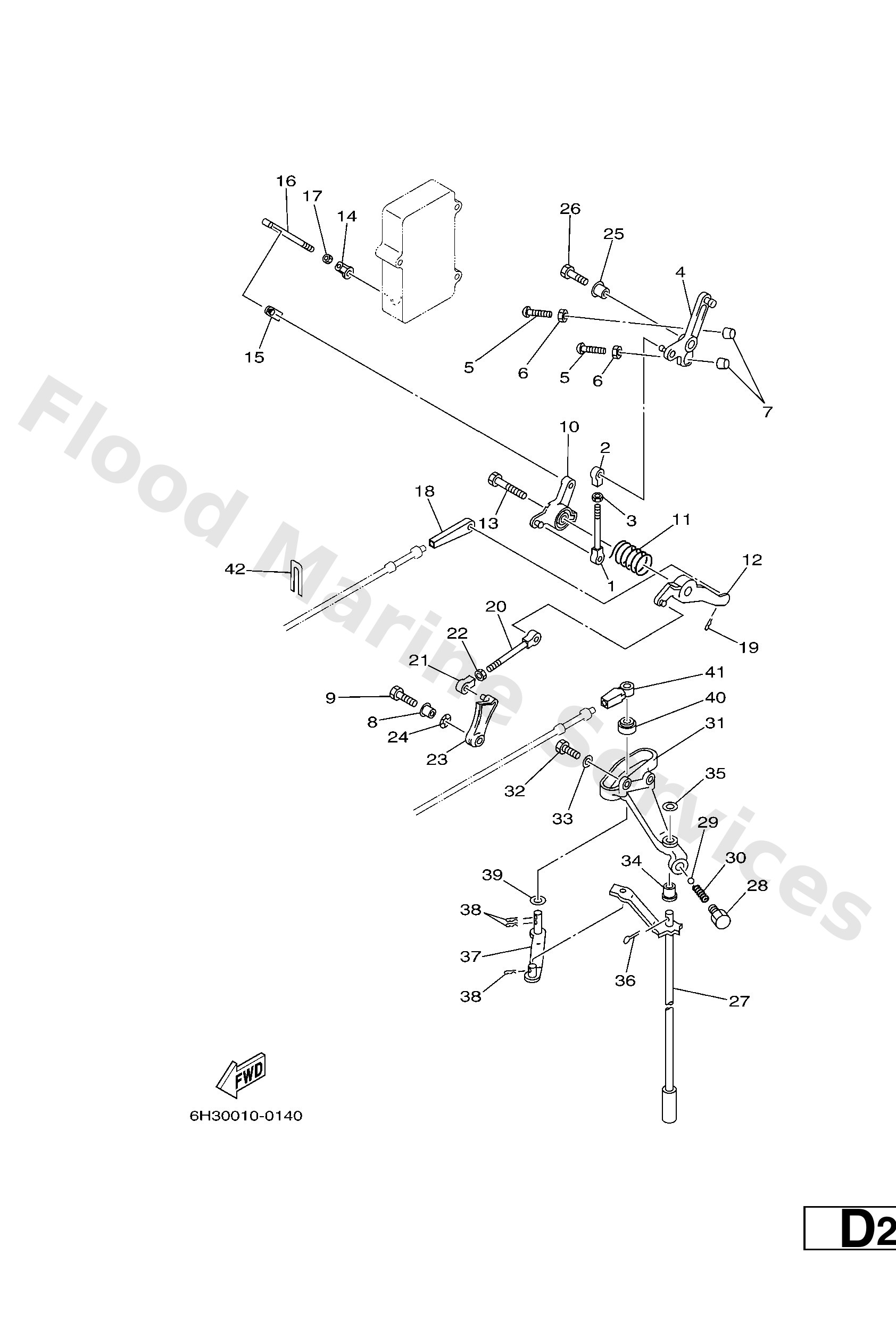

Diagram: CONTROL
Parts List
Reference
Description
Price
1
6894216901
Joint
Loading…
↗
2
6824123700
Joint, link 2
Loading…
↗
3
9538005600
Nut, hexagon (663)
Loading…
↗
4
6H34163100
Lever, magneto control 1
Loading…
↗
5
9015706M13
Screw, pan head(6h4)
Loading…
↗
6
9538006600
Nut(661)
Loading…
↗
7
6884419400
Cap
Loading…
↗
8
9038706M60
Collar (6h3)
Loading…
↗
9
9709506025
Bolt
Loading…
↗
10
6H34163220
Lever, magneto control
Loading…
↗
11
9050826M35
Spring, torsion
Loading…
↗
12
6H34163310
Lever, magneto control
Loading…
↗
13
9010906M43
Bolt(6h4)
Loading…
↗
14
6H14123700
Joint, link
Loading…
↗
15
6F54123700
Joint, link
Loading…
↗
16
6H3416361094
Rod, Magneto Control
Loading…
↗
18
6H34834400
Cable end, remote control
Loading…
↗
19
9046818008
Clip 620436610000
Loading…
↗
21
6H44123700
Joint, link
Loading…
↗
23
6H34121310
Cam, accel.
Loading…
↗
24
9020610M04
Washer, wave (676)
Loading…
↗
27
6H34412012
L(20.5")
Handle gear shift assembly
Loading…
↗
28
6484271500
Bushing 2
Loading…
↗
29
9350104M02
Ball (697)
Loading…
↗
30
9050112082
Spring 6484411600
Loading…
↗
31
6H3441170094
Bracket 1
Loading…
↗
32
9701306020
Bolt(62y)
Loading…
↗
33
9290306600
Washer, plain (646)
Loading…
↗
34
9038607M58
Bush(6h1)
Loading…
↗
35
9299008200
Ybs66-8 washer, plain
Loading…
↗
36
9149020012
Pin, cotter (648)
Loading…
↗
37
6H34412101
Lever, shift rod
Loading…
↗
39
9020207M07
Washer, plate (688)
Loading…
↗
40
6884412200
Bushing, shift rod lever
Loading…
↗
41
6634834400
Cable end, remote control
Loading…
↗
42
6H34853800
Clamp, cable
Loading…
↗
