8CMH (2010)
CONTROL

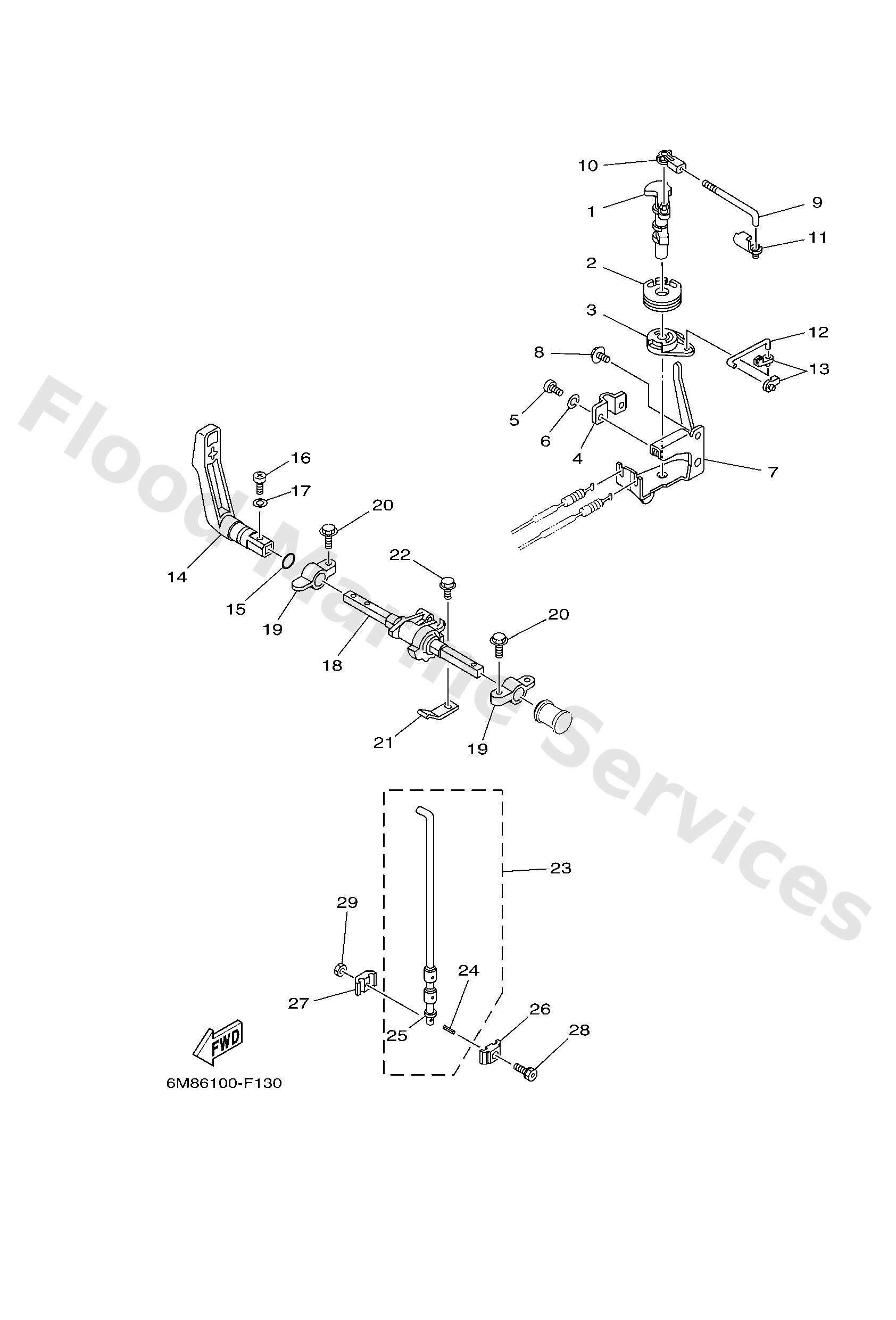

Diagram: CONTROL
Parts List
Reference
Description
Price
1
6G14163100
Lever, magneto control
Loading…
↗
2
6G14163800
Pulley
Loading…
↗
3
6G14128301
Lever, free accel 1
Loading…
↗
4
6G14166100
Bracket 1
Loading…
↗
5
9788005010
Screw, pan head(62x)
Loading…
↗
6
9299005100
Ybs67-5 washer, spring
Loading…
↗
7
6G11449781
Stay, throttle wire
Loading…
↗
8
9589506010
Bolt, flange(7ht)
Loading…
↗
9
6G14123800
Joint, link
Loading…
↗
10
6624123701
Joint, link
Loading…
↗
11
6E94123700
Joint, link
Loading…
↗
12
6G14121100
Link, accel
Loading…
↗
13
6614126202
Joint, choke lever
Loading…
↗
14
6N0G411100
Handle, gear shift
Loading…
↗
15
9321012327
O-ring(3ld)
Loading…
↗
16
9788005016
Screw, pan head(6b0)
Loading…
↗
17
9299005600
Washer, plain (646)
Loading…
↗
18
6G1441210294
Lever, shift rod
Loading…
↗
19
6G1416620194
Bracket
Loading…
↗
20
9010506M14
Bolt (6e0)
Loading…
↗
21
6G14411601
Spring
Loading…
↗
22
9589506012
Bolt, flange deep recess
Loading…
↗
23
6N0G411000
Shift rod assembly
Loading…
↗
24
9169020010
Pin, spring
Loading…
↗
26
6N0G414500
UR
Connector, shift rod 1
Loading…
↗
26
6N0G414510
UR
Connecter 1
Loading…
↗
27
6N0G414600
UR
Connecter 2
Loading…
↗
27
6N0G414610
UR
Connecter 2
Loading…
↗
28
9010906M17
Bolt (6g1)
Loading…
↗
29
9538006600
Nut(661)
Loading…
↗
