Yamaha Outboard Parts - CONTROL - 9.9FMH (2011) | Flood Marine
New Search
Parts
New Outboards
Home
9.9FMH (2011)
CONTROL

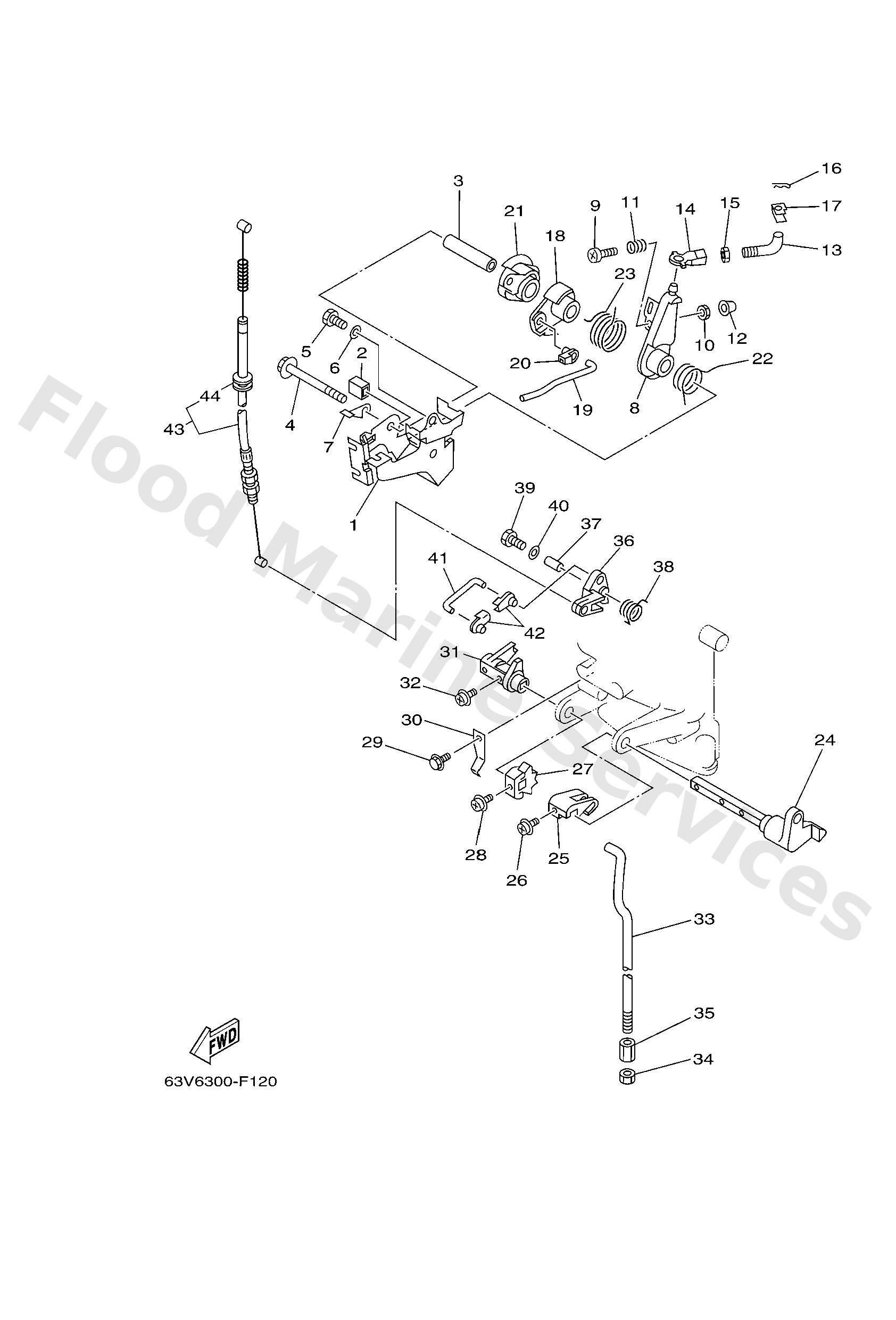

Diagram: CONTROL
Parts List
Reference
Description
Price
1
63V1449702
Stay, throttle wire
Loading…
↗
2
6894419400
Cap
Loading…
↗
3
9038706M50
Collar(63v)
Loading…
↗
4
9589506065
Bolt, flange(63v)
Loading…
↗
5
9709506012
Bolt(gh1)
Loading…
↗
6
9299506600
Washer, plain (646)
Loading…
↗
7
63V4128200
Stopper, free accel. link
Loading…
↗
8
63V4163101
Lever, magneto control
Loading…
↗
9
9788506030
Screw, pan head(6e0)
Loading…
↗
10
9538006600
Nut(661)
Loading…
↗
11
9050112M16
Spring (6a1)
Loading…
↗
12
6884419400
Cap
Loading…
↗
13
63V4123800
Joint, link
Loading…
↗
14
6H44123700
Joint, link
Loading…
↗
15
9538005700
Nut (656)
Loading…
↗
16
9046810005
Pin, hair 6264123500
Loading…
↗
17
63V4122300
Washer, lock 1
Loading…
↗
18
63V4128301
Lever, free accel.
Loading…
↗
19
63V4121100
Link, accel.
Loading…
↗
20
6614126202
Joint, choke lever
Loading…
↗
21
63V4163800
Pulley
Loading…
↗
22
9050816M37
Spring, torsion(63v)
Loading…
↗
23
9050820M38
Spring, torsion(63v)
Loading…
↗
24
63V4412301
Arm, shift rod
Loading…
↗
25
63V4412101
Lever, shift rod
Loading…
↗
26
9015905M25
Screw,pan head (646)
Loading…
↗
27
63V4412500
Lever, shift rod
Loading…
↗
29
9589506012
Bolt, flange deep recess
Loading…
↗
30
63V4411600
Spring
Loading…
↗
31
63V4412201
Bushing, shift rod lever
Loading…
↗
33
63V4414301
Rod, shift
Loading…
↗
34
9538006700
Nut
Loading…
↗
35
61N4414600
Connector, shift rod
Loading…
↗
36
63V1574610
Arm
Loading…
↗
37
9038706M06
Collar (651)
Loading…
↗
38
9050808M39
Spring, torsion(63v)
Loading…
↗
39
9709506020
Bolt(7u8)
Loading…
↗
41
6L21574700
Link
Loading…
↗
43
63V1577001
Cable comp., starter stop
Loading…
↗
44
9048010M16
Grommet(6j8)
Loading…
↗
