90AETO (2002)
CONTROL

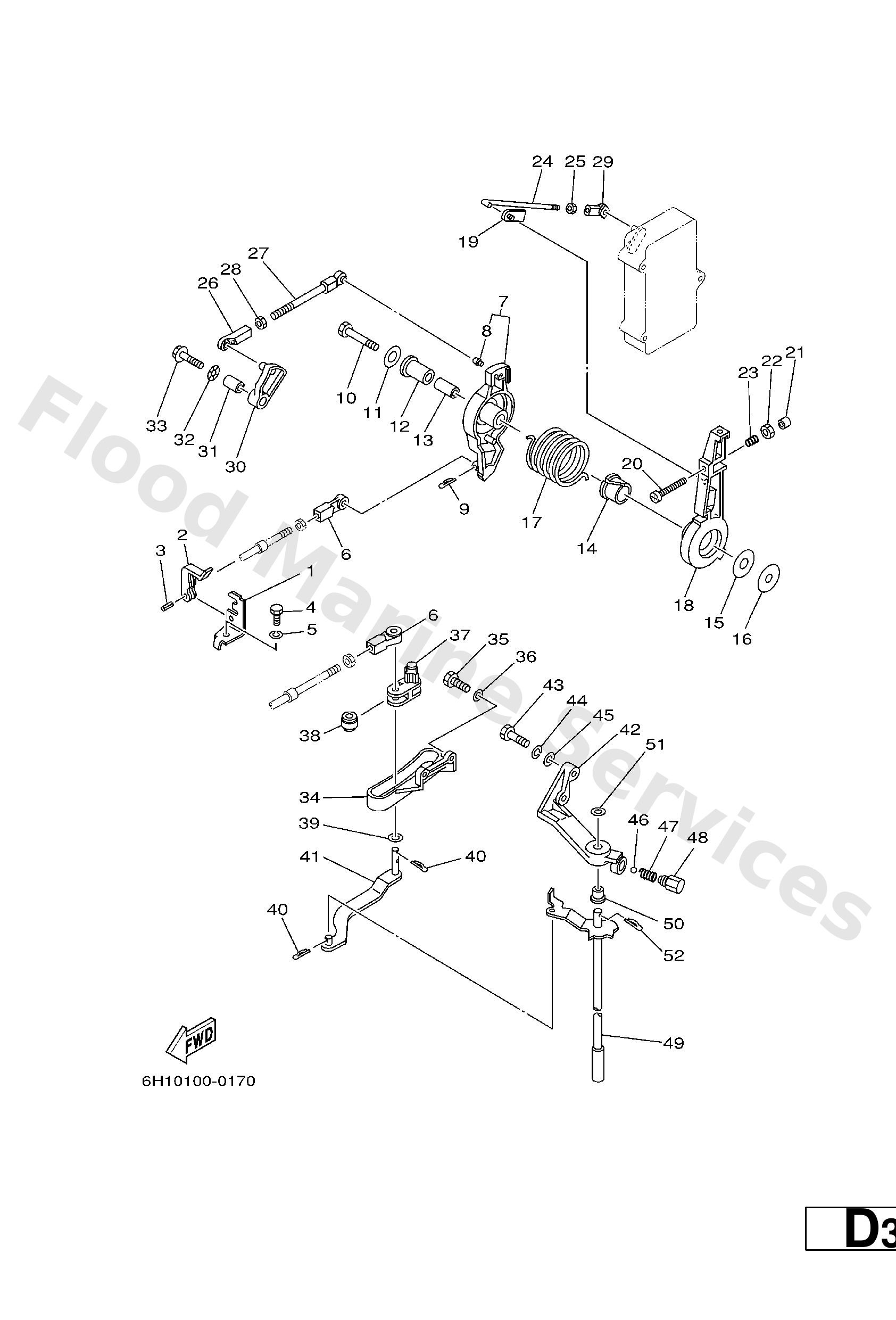

Diagram: CONTROL
Parts List
Reference
Description
Price
1
663−48531−00
Bracket, remote control
Loading…
↗
2
663−48538−00
Clamp, cable 1
Loading…
↗
3
91690−30012
Pin, spring
Loading…
↗
4
97095−08016
Bolt, hexagon deep recess
Loading…
↗
5
92995−08100
Ybs67-8 washer, spring
Loading…
↗
6
663−48344−00
Cable end, remote control
Loading…
↗
7
688−41632−01−94
Lever, magneto control
Loading…
↗
8
662−41214−01
Joint 1
Loading…
↗
9
90468−18008
Clip 620436610000
Loading…
↗
10
97095−08045
Bolt, hexagon
Loading…
↗
11
90201−08M23
Washer, plate (6e5)
Loading…
↗
12
90386−12089
Bushing(663)
Loading…
↗
13
90387−08M16
Collar
Loading…
↗
14
90386−22M13
Bushing (688)
Loading…
↗
15
90202−12092
Washer, plate(663)
Loading…
↗
16
90201−08M13
Washer plate (682)
Loading…
↗
17
90508−29M05
Spring, torsion (688)
Loading…
↗
18
688−41631−01−94
Lever, magneto control
Loading…
↗
19
6F5−41237−00
Joint, link
Loading…
↗
20
90157−06013
Screw, pan head(697)
Loading…
↗
21
688−44194−00
Cap
Loading…
↗
22
95303−06600
Nut(661)
Loading…
↗
23
90501−16M12
Spring, compression (688)
Loading…
↗
24
6H1−41636−00
Rod, magneto control
Loading…
↗
25
95380−05600
Nut, hexagon (663)
Loading…
↗
26
662−41237−01
Joint, link
Loading…
↗
27
688−41211−01
Link, accel
Loading…
↗
29
682−41237−00
Joint, link 2
Loading…
↗
30
6H1−41213−00
Cam, Accel.
Loading…
↗
31
90387−06M17
Collar, lever 1
Loading…
↗
32
90206−10M04
Washer, wave (676)
Loading…
↗
33
90119−06M24
Bolt, with washer
Loading…
↗
34
688−44117−00−94
Bracket 1
Loading…
↗
35
97013−06020
Bolt(62y)
Loading…
↗
36
92903−06600
Washer, plain (646)
Loading…
↗
37
688−44124−00
Link, shift rod
Loading…
↗
38
688−44122−00
Bushing, shift rod lever
Loading…
↗
39
90202−07M07
Washer, plate (688)
Loading…
↗
41
6H1−44121−00
Lever, shift rod 1
Loading…
↗
42
688−44118−00−94
Bracket
Loading…
↗
43
97013−08030
Bolt
Loading…
↗
44
92903−08100
Ybs67-8 washer, spring
Loading…
↗
45
92903−08600
Washer, plain (663)
Loading…
↗
46
93501−04M02
Ball (697)
Loading…
↗
47
90501−12082
Spring 6484411600
Loading…
↗
48
648−42715−00
Bushing 2
Loading…
↗
49
6H1−44120−12
L
Handle gear shift assembly
Loading…
↗
50
90386−07M58
Bush(6h1)
Loading…
↗
51
92990−08200
Ybs66-8 washer, plain
Loading…
↗
