90AETO (2009)
CONTROL

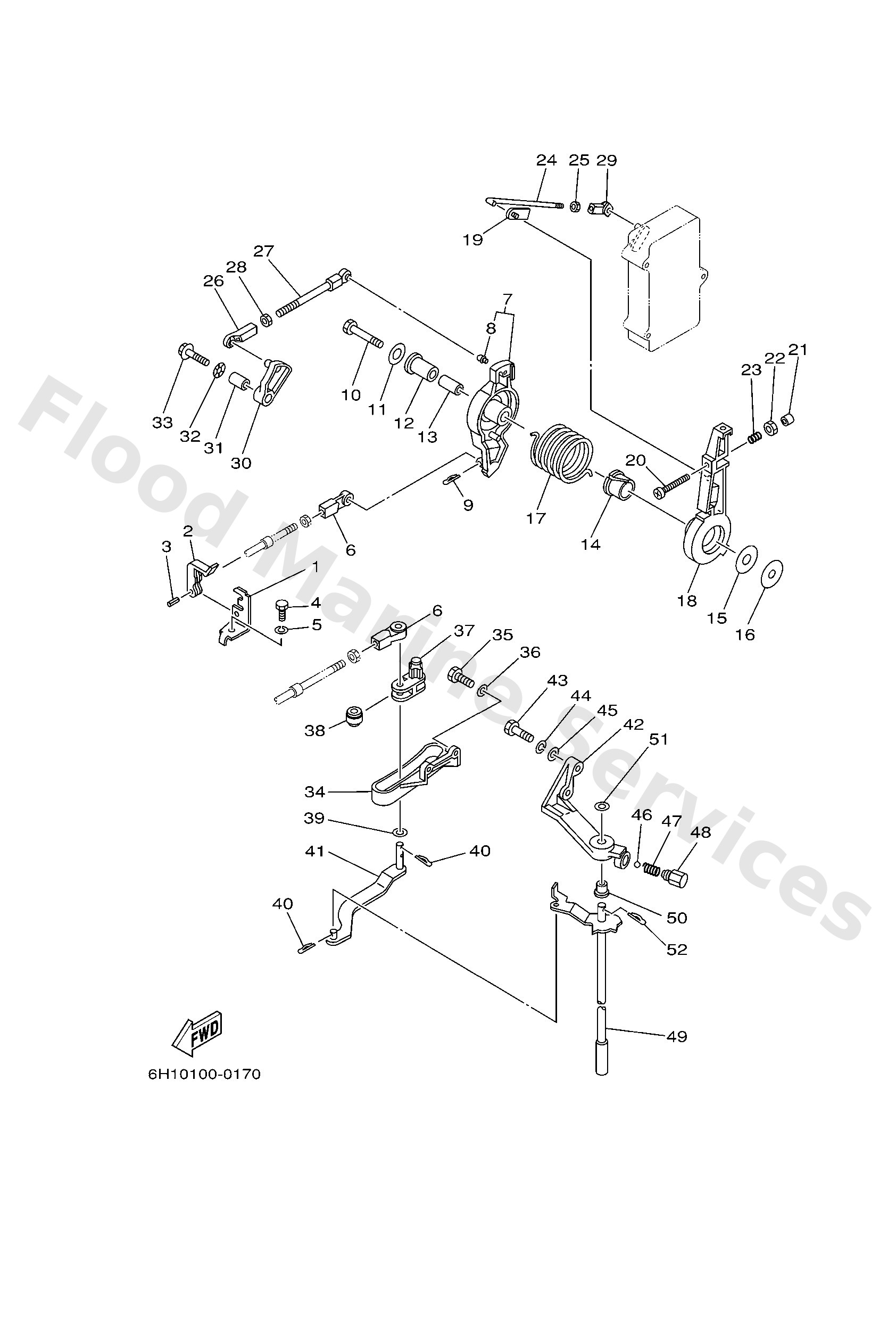

Diagram: CONTROL
Parts List
Reference
Description
Price
1
6634853100
Bracket, remote control
Loading…
↗
2
6634853800
Clamp, cable 1
Loading…
↗
3
9169030012
Pin, spring
Loading…
↗
4
9709508016
Bolt, hexagon deep recess
Loading…
↗
5
9299508100
Ybs67-8 washer, spring
Loading…
↗
6
6634834400
Cable end, remote control
Loading…
↗
7
688416320194
Lever, magneto control
Loading…
↗
8
6624121401
Joint 1
Loading…
↗
9
9046818008
Clip 620436610000
Loading…
↗
10
9709508045
Bolt, hexagon
Loading…
↗
11
9020108M23
Washer, plate (6e5)
Loading…
↗
12
9038612089
Bushing(663)
Loading…
↗
13
9038708M16
Collar
Loading…
↗
14
9038622M13
Bushing (688)
Loading…
↗
15
9020212092
Washer, plate(663)
Loading…
↗
16
9020108M13
Washer plate (682)
Loading…
↗
17
9050829M05
Spring, torsion (688)
Loading…
↗
18
688416310194
Lever, magneto control
Loading…
↗
19
6F54123700
Joint, link
Loading…
↗
20
9015706013
Screw, pan head(697)
Loading…
↗
21
6884419400
Cap
Loading…
↗
22
9530306600
Nut(661)
Loading…
↗
23
9050116M12
Spring, compression (688)
Loading…
↗
24
6H14163600
Rod, magneto control
Loading…
↗
25
9538005600
Nut, hexagon (663)
Loading…
↗
26
6624123701
Joint, link
Loading…
↗
27
6884121101
Link, accel
Loading…
↗
29
6824123700
Joint, link 2
Loading…
↗
30
6H14121300
Cam, Accel.
Loading…
↗
31
9038706M17
Collar, lever 1
Loading…
↗
32
9020610M04
Washer, wave (676)
Loading…
↗
33
9011906M24
Bolt, with washer
Loading…
↗
34
688441170094
Bracket 1
Loading…
↗
35
9701306020
Bolt(62y)
Loading…
↗
36
9290306600
Washer, plain (646)
Loading…
↗
37
6884412400
Link, shift rod
Loading…
↗
38
6884412200
Bushing, shift rod lever
Loading…
↗
39
9020207M07
Washer, plate (688)
Loading…
↗
41
6H14412100
Lever, shift rod 1
Loading…
↗
42
688441180194
Bracket
Loading…
↗
43
9701308030
Bolt
Loading…
↗
44
9290308100
Ybs67-8 washer, spring
Loading…
↗
45
9290308600
Washer, plain (663)
Loading…
↗
46
9350104M02
Ball (697)
Loading…
↗
47
9050112082
Spring 6484411600
Loading…
↗
48
6484271500
Bushing 2
Loading…
↗
49
6H14412012
L(20.3")
Handle gear shift assembly
Loading…
↗
50
9038607M58
Bush(6h1)
Loading…
↗
51
9299008200
Ybs66-8 washer, plain
Loading…
↗
