Yamaha Outboard Parts - CONTROL - 90AETO (2018) | Flood Marine

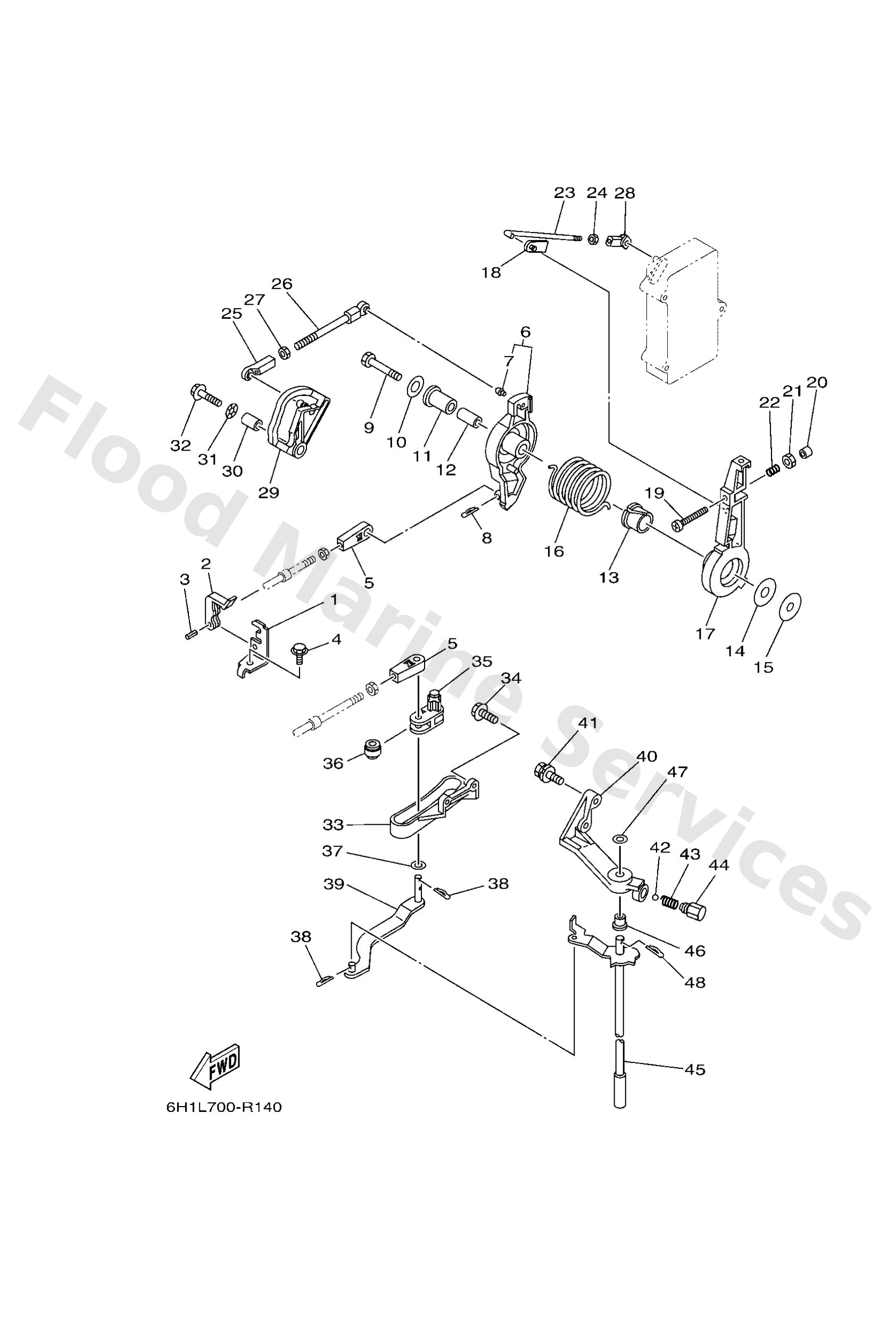

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
6634853100
Bracket, remote control
Loading…

↗
2
6634853800
Clamp, cable 1
Loading…

↗
3
9169030012
Pin, spring
Loading…

↗
4
9759508516
Bolt, hexagon w/w deep recess
Loading…

↗
5
6FM4834400
Cable end, remote control
Loading…

↗
6
68841632091S
Lever, magneto control
Loading…

↗
7
6624121401
Joint 1
Loading…

↗
8
9046818008
Clip 620436610000
Loading…

↗
9
9709508045
Bolt, hexagon
Loading…

↗
10
9020108M23
Washer, plate (6e5)
Loading…

↗
11
9038612089
Bushing(663)
Loading…

↗
12
9038708M16
Collar
Loading…

↗
13
9038622M13
Bushing (688)
Loading…

↗
14
9020212092
Washer, plate(663)
Loading…

↗
15
9020108M13
Washer plate (682)
Loading…

↗
16
9050829M05
Spring, torsion (688)
Loading…

↗
17
68841631011S
Lever, magneto control
Loading…

↗
18
6F54123700
Joint, link
Loading…

↗
19
9015706013
Screw, pan head(697)
Loading…

↗
20
6884419400
Cap
Loading…

↗
21
9530306600
Nut(661)
Loading…

↗
22
9050116M12
Spring, compression (688)
Loading…

↗
23
6H14163600
Rod, magneto control
Loading…

↗
24
9538005600
Nut, hexagon (663)
Loading…

↗
25
6624123701
Joint, link
Loading…

↗
26
6884121101
Link, accel
Loading…

↗
28
6824123700
Joint, link 2
Loading…

↗
29
6H14121301
Cam, accel.
Loading…

↗
30
9038706M17
Collar, lever 1
Loading…

↗
31
9020610M04
Washer, wave (676)
Loading…

↗
32
9011906M24
Bolt, with washer
Loading…

↗
33
688441170094
Bracket 1
Loading…

↗
34
9751306520
Bolt, with washer(61b)
Loading…

↗
35
6884412400
Link, shift rod
Loading…

↗
36
6884412200
Bushing, shift rod lever
Loading…

↗
37
9020207M07
Washer, plate (688)
Loading…

↗
39
6H14412100
Lever, shift rod 1
Loading…

↗
40
688441180194
Bracket
Loading…

↗
41
9751308630
Bolt
Loading…

↗
42
9350104M02
Ball (697)
Loading…

↗
43
9050112082
Spring 6484411600
Loading…

↗
44
6484271500
Bushing 2
Loading…

↗
45
6H14412013 L(20.5")
Handle gear shift assembly
Loading…

↗
46
9038607M58
Bush(6h1)
Loading…

↗
47
9299008200
Ybs66-8 washer, plain
Loading…

↗
