E48CMH (2003)
CONTROL

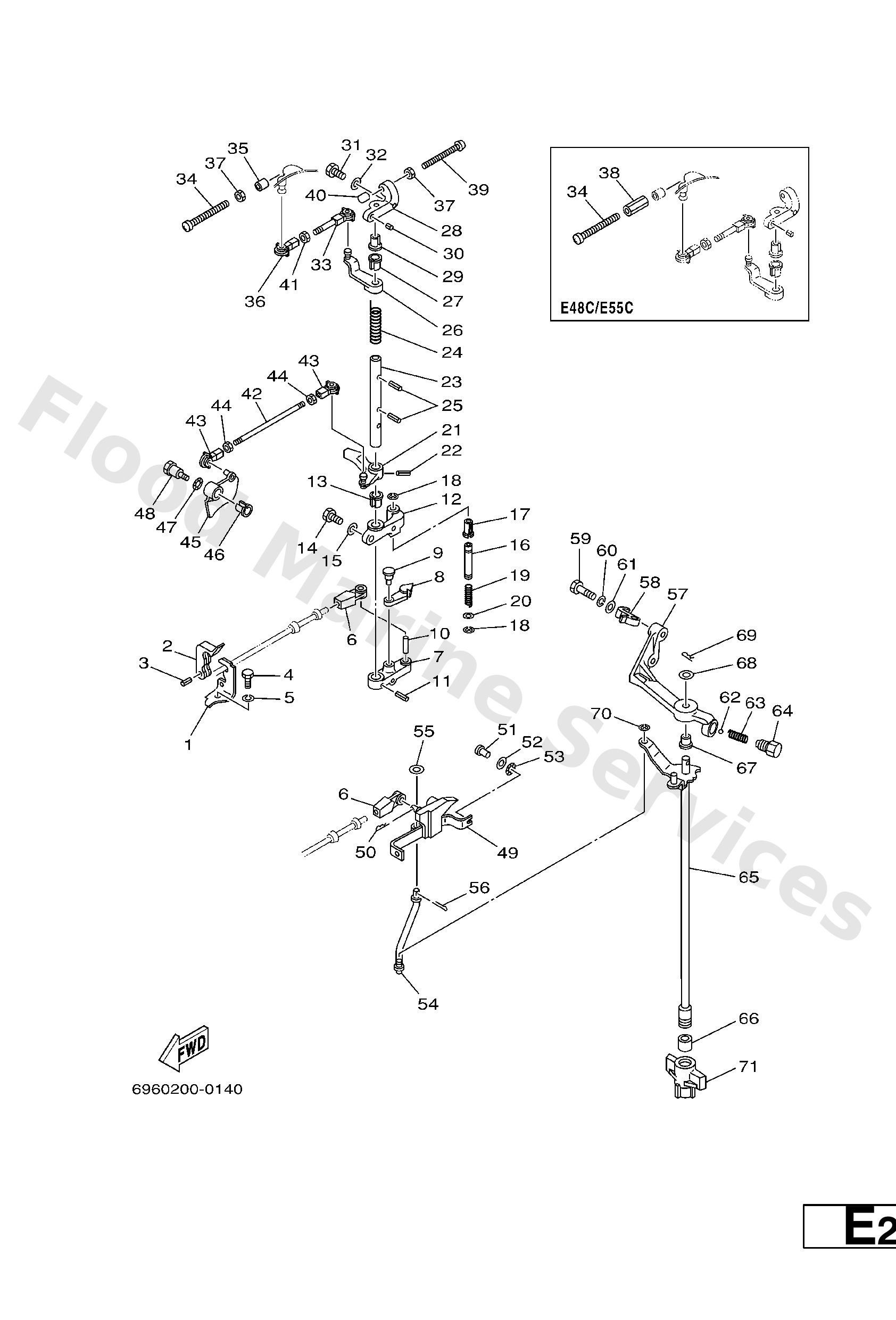

Diagram: CONTROL
Parts List
Reference
Description
Price
1
663−48531−00
Bracket, remote control
Loading…
↗
2
663−48538−00
Clamp, cable 1
Loading…
↗
3
91690−30012
Pin, spring
Loading…
↗
4
97095−08016
Bolt, hexagon deep recess
Loading…
↗
5
92995−08100
Ybs67-8 washer, spring
Loading…
↗
6
663−48344−00
Cable end, remote control
Loading…
↗
7
663−41632−00−94
Lever, magneto control 2
Loading…
↗
8
663−41282−00
Stopper free, axle link
Loading…
↗
9
90249−05125
Pin (663)
Loading…
↗
10
93607−23110
Pin, dowel(663)
Loading…
↗
11
91690−30018
926-51502-00 pin, spring (700)
Loading…
↗
12
663−41662−00−94
Bracket 2
Loading…
↗
13
90386−10009
Bushing 6484418600
Loading…
↗
14
97095−06018
Bolt (fj0)
Loading…
↗
15
92995−06600
Washer, plain (646)
Loading…
↗
16
663−44114−00
Stopper
Loading…
↗
17
90386−06M39
Bushing (697)
Loading…
↗
18
99080−05600
Circlip(22k)
Loading…
↗
19
90501−08232
Spring, compression(663)
Loading…
↗
20
92903−06600
Washer, plain (646)
Loading…
↗
21
663−41633−00−94
Lever, magneto control 3
Loading…
↗
23
663−41635−00
Shaft, link connecting
Loading…
↗
24
90508−20169
Spring, torsion(663)
Loading…
↗
26
663−41631−00−94
Lever, magneto control
Loading…
↗
28
663−41661−00−94
Bracket 1
Loading…
↗
30
91690−40010
Pin, spring
Loading…
↗
33
688−41636−00
Rod 1
Loading…
↗
34
90157−06M11
Screw, pan head(697)
Loading…
↗
34
90157−06M12
Screw, pan head(697)
Loading…
↗
35
688−44194−00
Cap
Loading…
↗
36
662−41237−01
Joint, link
Loading…
↗
37
95380−06700
Nut
Loading…
↗
37
90170−06017
Nut
Loading…
↗
40
663−44194−00
Cap
Loading…
↗
41
95380−05600
Nut, hexagon (663)
Loading…
↗
42
663−41211−00
Link, axle
Loading…
↗
42
697−41211−00
Link, accel.
Loading…
↗
43
6H4−41237−00
Joint, link
Loading…
↗
45
663−41213−01−94
Cam, accel.
Loading…
↗
47
90206−10M04
Washer, wave (676)
Loading…
↗
48
90109−06260
Bolt(663)
Loading…
↗
49
663−44117−01
Bracket 1
Loading…
↗
50
90468−18008
Clip 620436610000
Loading…
↗
51
90241−06M00
Pin with head (663)
Loading…
↗
53
90206−06040
Washer, wave (663)
Loading…
↗
54
663−44121−01
Lever, shift rod
Loading…
↗
56
91490−16012
Pin, cotter (e57)
Loading…
↗
57
688−44118−00−94
Bracket
Loading…
↗
58
90462−05M02
Clamp (697)
Loading…
↗
59
97013−08030
Bolt
Loading…
↗
60
92903−08100
Ybs67-8 washer, spring
Loading…
↗
61
92903−08600
Washer, plain (663)
Loading…
↗
62
93501−04M02
Ball (697)
Loading…
↗
63
90501−12082
Spring 6484411600
Loading…
↗
64
648−42715−00
Bushing 2
Loading…
↗
65
696−44120−02
S
Handle gear shift assembly
Loading…
↗
65
696−44120−12
L
Handle gear shift assembly
Loading…
↗
65
697−44120−12
L
Handle gear shift assembly
Loading…
↗
65
697−44120−02
S
Handle gear shift assembly
Loading…
↗
66
696−44147−00
Boot, shift rod
Loading…
↗
67
90386−08006
Bushing (688)
Loading…
↗
68
92990−08200
Ybs66-8 washer, plain
Loading…
↗
71
697−43662−00
Guide, reverse rod
Loading…
↗
71
696−43662−00
Guide, reverse rod
Loading…
↗
