E60HMHD (2014)
CONTROL

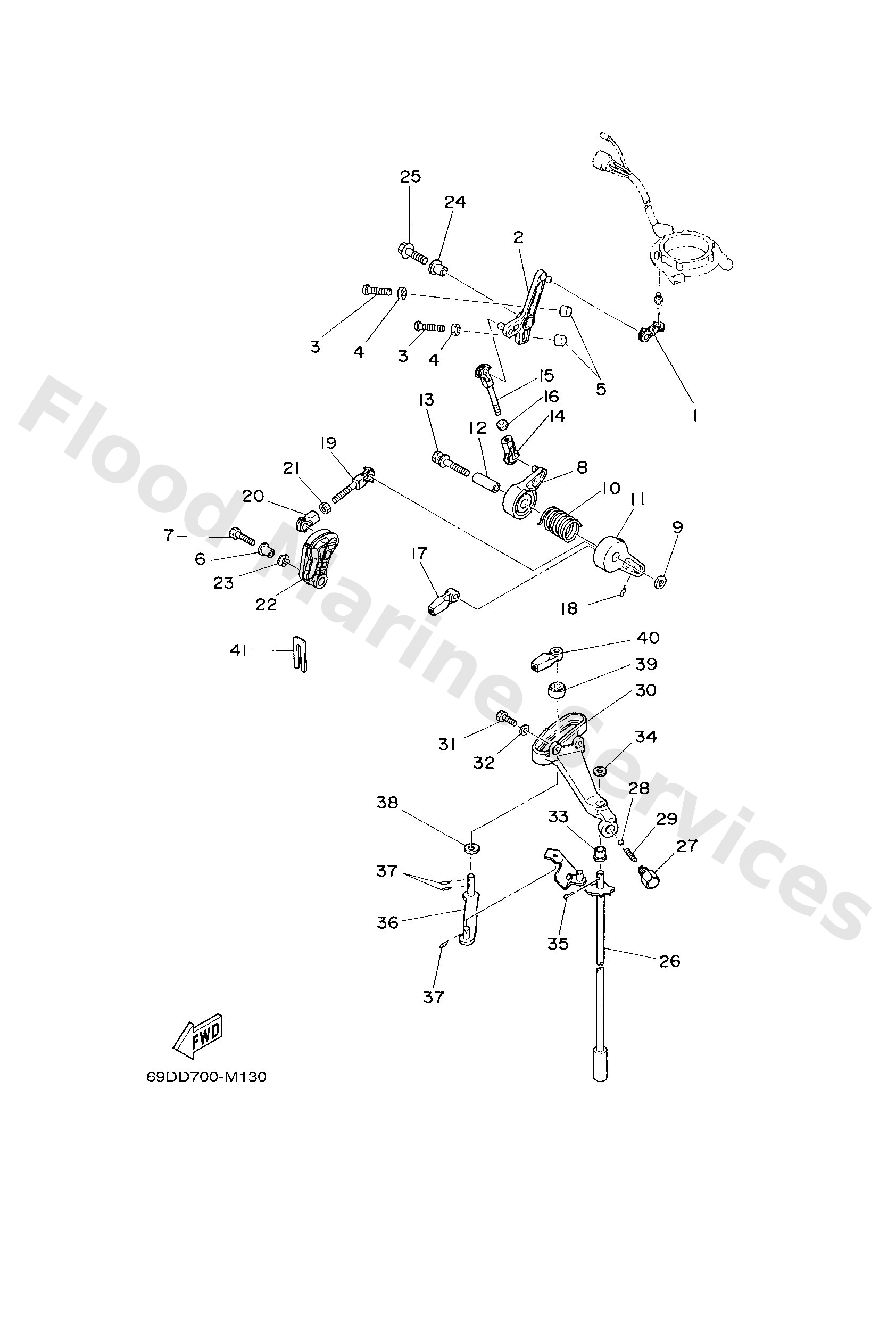

Diagram: CONTROL
Parts List
Reference
Description
Price
1
6H34123800
Joint, link 1
Loading…
↗
2
6H34163100
Lever, magneto control 1
Loading…
↗
3
9015706M13
Screw, pan head(6h4)
Loading…
↗
4
9538006600
Nut(661)
Loading…
↗
5
6884419400
Cap
Loading…
↗
6
9038706289
Collar
Loading…
↗
7
9709506025
Bolt
Loading…
↗
8
6H34163200
Lever, magneto control 2
Loading…
↗
9
9020106M31
Washer (6a0)
Loading…
↗
10
9050829M19
Spring, torsion
Loading…
↗
11
6H34163300
Lever, magneto control 3
Loading…
↗
12
9038706M59
Collar (6h3)
Loading…
↗
13
9011906M91
Bolt, with washer
Loading…
↗
14
6624123701
Joint, link
Loading…
↗
15
6794163600
Rod, magneto control
Loading…
↗
16
9538005600
Nut, hexagon (663)
Loading…
↗
17
6634834400
Cable end, remote control
Loading…
↗
18
9046818008
Clip 620436610000
Loading…
↗
19
6824123750
Joint, link 2
Loading…
↗
22
6H34121320
Cam, accel.
Loading…
↗
23
9020610M04
Washer, wave (676)
Loading…
↗
25
9011906M17
Bolt, with washer
Loading…
↗
26
6K54412012
L(22.5")
Handle gear shift assembly
Loading…
↗
27
6484271500
Bushing 2
Loading…
↗
28
9350104M02
Ball (697)
Loading…
↗
29
9050112082
Spring 6484411600
Loading…
↗
30
6H3441170094
Bracket 1
Loading…
↗
31
9701306020
Bolt(62y)
Loading…
↗
32
9290306600
Washer, plain (646)
Loading…
↗
33
9038607M58
Bush(6h1)
Loading…
↗
34
9299008200
Ybs66-8 washer, plain
Loading…
↗
35
9149020012
Pin, cotter (648)
Loading…
↗
36
6H34412101
Lever, shift rod
Loading…
↗
38
9020207M07
Washer, plate (688)
Loading…
↗
39
6884412200
Bushing, shift rod lever
Loading…
↗
41
6H34853800
Clamp, cable
Loading…
↗
