Yamaha Outboard Parts - CONTROL - E60HWHD (2003) | Flood Marine

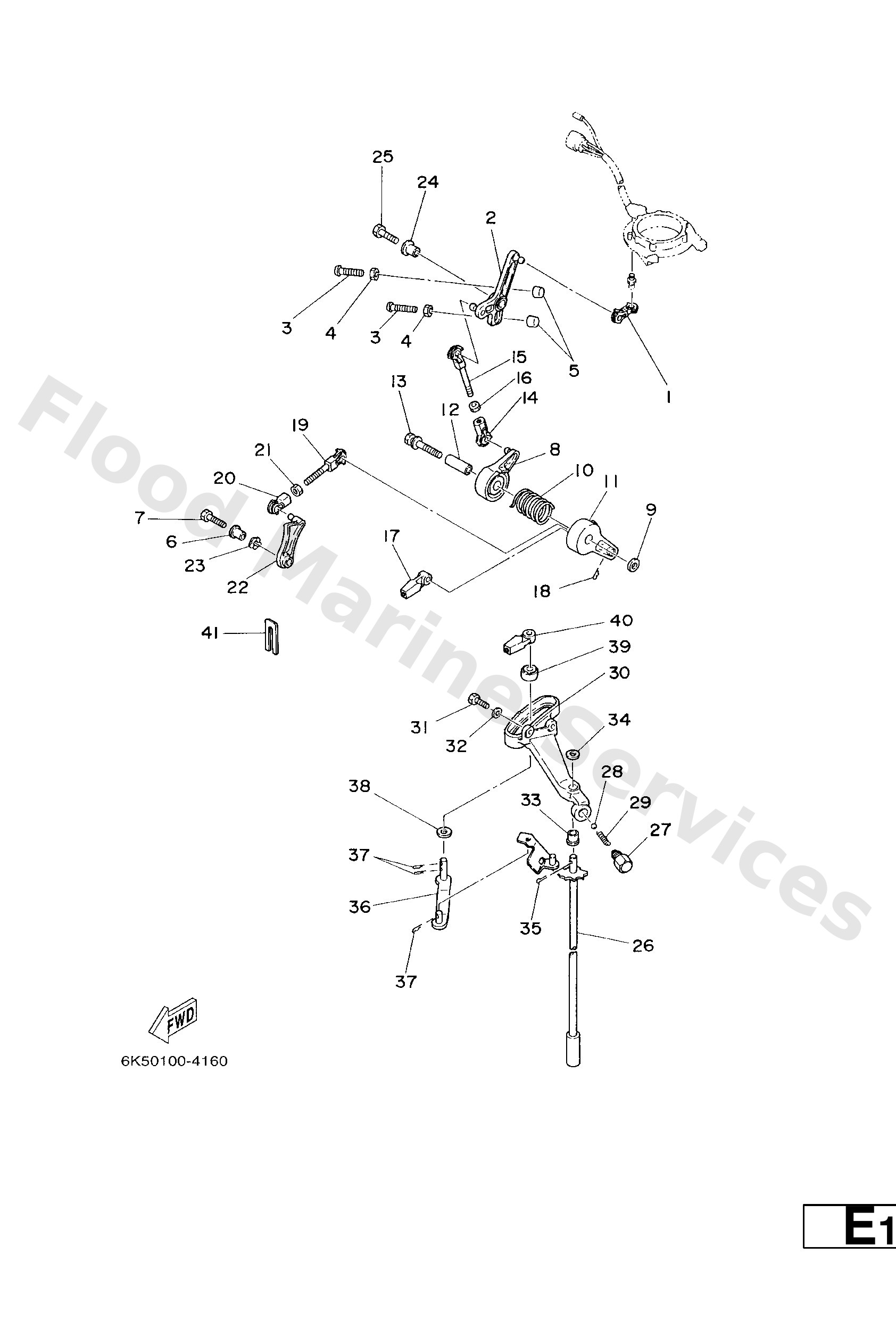

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
6H3−41238−00
Joint, link 1
Loading…

↗
2
6H3−41631−00
Lever, magneto control 1
Loading…

↗
3
90157−06M13
Screw, pan head(6h4)
Loading…

↗
4
95380−06600
Nut(661)
Loading…

↗
5
688−44194−00
Cap
Loading…

↗
6
90387−06M60
Collar (6h3)
Loading…

↗
7
97095−06025
Bolt
Loading…

↗
8
6H3−41632−00
Lever, magneto control 2
Loading…

↗
9
90201−06M31
Washer (6a0)
Loading…

↗
10
90508−29M19
Spring, torsion
Loading…

↗
11
6H3−41633−00
Lever, magneto control 3
Loading…

↗
12
90387−06M59
Collar (6h3)
Loading…

↗
13
90119−06M91
Bolt, with washer
Loading…

↗
14
662−41237−01
Joint, link
Loading…

↗
15
679−41636−00
Rod, magneto control
Loading…

↗
16
95380−05600
Nut, hexagon (663)
Loading…

↗
17
663−48344−00
Cable end, remote control
Loading…

↗
18
90468−18008
Clip 620436610000
Loading…

↗
19
682−41237−50
Joint, link 2
Loading…

↗
22
6H3−41213−01
Cam, accele
Loading…

↗
23
90206−10M04
Washer, wave (676)
Loading…

↗
26
6K5−44120−01 S
Handle gear shift assembly
Loading…

↗
26
6K5−44120−11 L
Handle gear shift assembly
Loading…

↗
26
69D−44120−20 X
Handle gear shift assembly
Loading…

↗
27
648−42715−00
Bushing 2
Loading…

↗
28
93501−04M02
Ball (697)
Loading…

↗
29
90501−12082
Spring 6484411600
Loading…

↗
30
6H3−44117−00−94
Bracket 1
Loading…

↗
30
6J2−44117−01−94 FOR OMAN
Bracket
Loading…

↗
31
97013−06020
Bolt(62y)
Loading…

↗
32
92903−06600
Washer, plain (646)
Loading…

↗
33
90386−07M58
Bush(6h1)
Loading…

↗
34
92990−08200
Ybs66-8 washer, plain
Loading…

↗
35
91490−20012
Pin, cotter (648)
Loading…

↗
36
6H3−44121−01
Lever, shift rod
Loading…

↗
38
90202−07M07
Washer, plate (688)
Loading…

↗
39
688−44122−00
Bushing, shift rod lever
Loading…

↗
41
6H3−48538−00
Clamp, cable
Loading…

↗
